How To Install A Generator Interlock Kit Safely And Legally
A generator interlock kit is a mechanical safety device installed on a residential electrical service panel that physically prevents the utility main circuit breaker and the portable generator breaker from being in the "ON" position simultaneously. Proper installation requires turning off the main power, removing the deadfront cover, drilling precise mounting holes, and adhering strictly to National Electrical Code (NEC) Article 702 regulations to eliminate fatal backfeeding risks.
Pre-Operation Planning and Safety Checklist
Installing a generator interlock kit requires working inside an energized electrical panel environment, even when the main breaker is switched off. The incoming utility service lugs at the top of the panel remain live at 120/240 volts and present an extreme electrocution hazard.
Before picking up a tool, verify that your specific interlock kit matches your exact electrical panel brand (such as Square D, Siemens, Eaton, or General Electric). Never mix brands or attempt to modify an interlock plate to fit an unapproved panel enclosure, as this violates UL listings and local electrical codes.
- Essential Tools & Safety Gear: Insulated screwdriver set, cordless drill with a metal-cutting step bit, safety glasses, heavy-duty electrical gloves rated for voltage, a reliable digital multimeter, a fine-point permanent marker, and the manufacturer-approved interlock kit containing the sliding plate, fastening screws, limit brackets, and mandatory warning labels.
- Prerequisite Standards & Verification: Verify compliance with NEC 702 (Optional Standby Systems) and local utility interconnect requirements. Confirm that your portable generator utilizes a bonded neutral configuration or matches your home's system requirements, and ensure your panel has the physical space required to dedicate two vertical pole spaces directly opposite or adjacent to the main breaker.
- Estimated Budget & Timeframe: Budget between forty and two hundred dollars for the certified kit and necessary breaker components, and allocate approximately one to two hours of focused, uninterrupted labor for a safe installation.
Step-by-Step Generator Interlock Kit Installation Workflow
Step 1: De-Energize the Electrical Panel and Verify Zero Energy
Locate your main utility service disconnect breaker and switch it to the "OFF" position. This de-energizes the branch circuit breakers inside the panel, though the utility service lines entering the top main lugs remain live. Remove the panel cover (deadfront) screws while supporting the weight of the metal cover, and carefully lift it away to expose the internal bus bars and circuit breakers.
Warning: Never touch the main utility landing lugs at the top of the panel. Use a calibrated digital multimeter set to AC voltage to test across the main breaker terminals, confirming a zero-energy state on the branch side before proceeding.
Step 2: Clear Space and Install the Generator Backfeed Breaker
Identify the designated location for your new double-pole generator backfeed breaker, which is almost universally positioned immediately adjacent to the main service disconnect breaker in the top left positions. Remove any existing single-pole breakers occupying those specific slots. Install a new double-pole circuit breaker matching your generator's amperage output (typically 30 amps or 50 amps) into those vacated spaces, snapping it firmly onto the vertical bus bar fingers.
Pro-Tip: Install the manufacturer-provided mechanical breaker retainer clip directly onto the new generator backfeed breaker to satisfy structural anchoring requirements mandated by electrical inspectors.

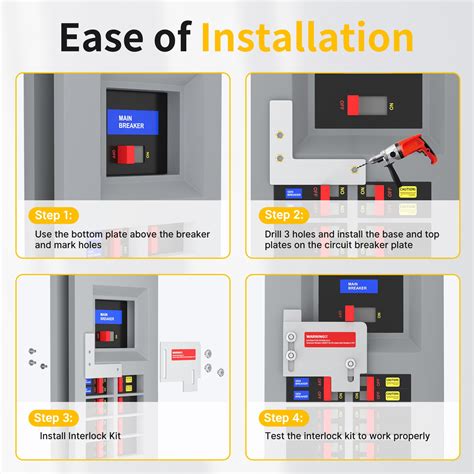

Step 3: Mount the Interlock Sliding Plate Mechanism
Hold the sliding interlock plate against the deadfront cover in the alignment position specified by the kit instructions. The plate typically mounts over the gap between the main breaker handle and the new generator backfeed breaker handle. Use the interlock plate as a physical template to mark your drill hole locations on the metal deadfront cover with a permanent marker.
Step 4: Drill Mounting Holes and Attach the Interlock Assembly
Remove the deadfront cover entirely from the workspace to ensure metal shavings do not fall into the live electrical panel bus bars. Using a cordless drill equipped with a metal-cutting step bit, drill the mounting holes through the deadfront cover at your marked locations. Deburr the edges of the holes to ensure a clean surface. Fasten the interlock sliding plate and its corresponding guide screws and backing nuts through the deadfront cover, ensuring the slide moves smoothly up and down without binding or catching.
Step 5: Reinstall the Deadfront Cover and Apply Warning Labels
Carefully place the modified deadfront cover back over the electrical panel, ensuring no internal wires are pinched against the enclosure walls. Secure the cover with its retaining screws. Test the mechanical slide mechanism: when the main breaker is in the "ON" position, the interlock slider must physically block the generator breaker from turning on. Slide the interlock to allow the generator breaker "ON," and verify that the main breaker is now completely blocked from being switched "ON." Permanently affix all required red and white adhesive warning labels directly to the front of the panel per NEC 702 requirements.
Interlock Kit & Accessories For Your Home | Generator Interlock Kit
Interlock Kit vs. Manual Transfer Switch Comparison
| Technical Parameter | Generator Interlock Kit | Manual Transfer Switch |
|---|---|---|
| Installation Complexity | Moderate (requires panel cover modification) | High (requires cutting and rewiring individual circuits) |
| Circuit Flexibility | Full panel access (manage loads via breakers) | Fixed circuit limits (usually 6 to 10 dedicated circuits) |
| Cost Efficiency | Low to moderate ($40 to $200 for parts) | High ($300 to $800+ for unit and sub-panel) |
| Space Requirements | Requires two empty adjacent breaker spaces | Requires separate wall-mounted enclosure box |
Common Installation Pitfalls and Field Remedies
- Root Cause: The interlock sliding plate binds, jams, or fails to move freely after the deadfront cover is fully screwed down.
- Actionable Fix: Loosen the mounting screws slightly and adjust the plate alignment. Ensure the deadfront cover is not warped or improperly seated, which causes mechanical misalignment between the main and generator breaker handles.
- Root Cause: The electrical inspector fails the installation because the generator backfeed breaker is positioned at the bottom of the panel rather than the top.
- Actionable Fix: Relocate the generator backfeed breaker to the top position adjacent to the main breaker. Standard interlock kits are engineered with strict geometrical tolerances that only function when installed directly next to the main breaker handle.
- Root Cause: Metal shavings and drill debris fall into the live electrical panel during the deadfront modification process.
- Actionable Fix: Always remove the deadfront cover completely away from the electrical panel enclosure before drilling any mounting holes. Vacuum the workspace thoroughly and inspect the interior bus bars with a flashlight before reinstallation.
Frequently Asked Questions
Can I install a generator interlock kit myself?
While homeowners with advanced electrical aptitude can mechanically install an interlock kit, local electrical codes often require a licensed electrician to perform the work and pull a municipal permit. Because you are working inside a live service panel enclosure, professional installation guarantees adherence to strict safety standards and passes local inspections.
Do I need a main breaker to use an interlock kit?
Yes, a generator interlock kit requires a main service disconnect breaker to function properly. The mechanical sliding plate relies on the physical opposition between the main utility breaker handle and the generator backfeed breaker handle to prevent simultaneous engagement. Split-bus panels without a single main breaker cannot utilize standard interlock kits.
What size generator breaker do I need for my interlock kit?
The size of your generator backfeed breaker depends entirely on the output capacity of your portable generator and the gauge of the wire running from your outdoor power inlet box. A standard 30-amp generator inlet box requires a double-pole 30-amp breaker and 10 AWG copper wire, while a 50-amp setup requires a double-pole 50-amp breaker and 6 AWG copper wire.
Will an interlock kit power my entire house?
An interlock kit allows you to power any circuit in your home up to the total amperage limit of your generator. However, because portable generators have limited wattage output compared to grid power, you must manually manage your heavy electrical loads, such as central air conditioning units, electric water heaters, and electric ranges, by keeping those specific branch breakers switched off.
