How To Paint Metal Railings: A Professional Guide To Durable Corrosion Protection

Achieving a professional-grade finish on metal railings requires a rigorous adherence to surface preparation and the selection of high-solids, corrosion-inhibiting coatings. By removing oxidation, applying the correct primer chemistry, and utilizing proper application techniques, you can extend the service life of exterior metalwork by up to a decade before requiring maintenance.

Essential Preparation and Technical Requirements

Successful metal railing restoration is 80% surface preparation and 20% application. If the underlying substrate is compromised by rust or loose paint, the new finish will inevitably fail via delamination or blistering within one season. Before starting, ensure you have the appropriate personal protective equipment (PPE), including a P100 respirator for dust, chemical-resistant gloves, and eye protection.

Mandatory Equipment and Material Checklist

• Tools for Mechanical Prep: Angle grinder with a flap disc (80-grit), wire cup brush attachment for drills, and medium-grit (120-150) abrasive sanding pads or sponges.
• Chemical Cleaning Agents: Exterior-grade degreaser (TSP substitute), denatured alcohol for final wiping, and a phosphoric acid-based rust converter for localized pitting.
• Coating Systems: A dedicated direct-to-metal (DTM) acrylic, oil-based enamel, or a high-performance epoxy ester primer paired with a weather-resistant topcoat.
• Application Gear: High-density foam brushes for detailed scrollwork, natural bristle brushes for oil-based paints, or a small-diameter microfiber roller for flat railing sections.
• Time and Environment Benchmarks: Expect a minimum of 48 hours for a standard railing project. Ambient temperature must be between 50°F and 85°F (10°C–29°C) with humidity levels below 70% to ensure proper film formation and curing.

Procedural Workflow for Metal Railing Refinishing

Step 1: Substrate Decontamination and Mechanical Stripping

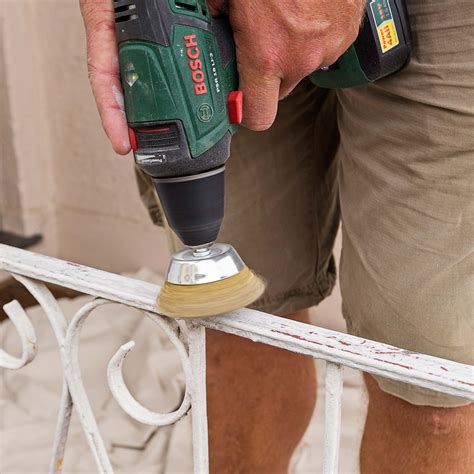

Begin by removing all loose, peeling, or flaking paint using a wire brush or scraper. For areas with significant corrosion, use an angle grinder to reach bright, clean metal. The objective is to achieve a surface profile that allows the primer to anchor effectively. Once the mechanical prep is finished, wash the entire railing with a heavy-duty degreaser to remove oils, atmospheric pollutants, and salt deposits that could prevent adhesion. Rinse thoroughly with clean water and allow the metal to dry completely before proceeding.

Warning: Never attempt to paint over active "flaky" rust. If you do not sand down to a stable substrate or treat the oxidation with a chemical converter, the rust will continue to grow beneath the paint film, causing the new layer to bubble and pop.

Step 2: Surface Priming for Maximum Adhesion

Once the metal is clean and dry, apply a high-quality metal primer. If the railing is ferrous (iron or steel), use a rust-inhibitive primer containing zinc phosphate or iron oxide. If working with non-ferrous metals like aluminum or galvanized steel, you must use a dedicated etching primer or a bonding primer, as standard primers will not stick to the smooth, non-porous surface. Apply the primer in thin, even coats, focusing on joints, welds, and underside curves where moisture typically collects.

Step 3: Application of the Protective Topcoat

Select an exterior-grade topcoat designed specifically for metal applications. DTM (Direct-to-Metal) paints are often the best choice for DIYers as they offer both primer and finish properties in one product. Apply the paint in two thin coats rather than one heavy layer to prevent sagging or "curtaining," especially on vertical pickets. Use a high-quality brush to work the paint into crevices and welds, then use a small roller to maintain a consistent finish on flat surfaces. Allow the first coat to dry to the manufacturer’s specified "recoat time"—typically 4 to 24 hours depending on the product—before applying the final layer.

Step 4: Final Inspection and Cure Management

Inspect the finish for "holidays" (missed spots), drips, or thin coverage, particularly at the connection points where the railing meets the posts or stairs. Do not allow the railings to be handled, bumped, or exposed to heavy rain for at least 24 to 48 hours. Full cure (the point at which the paint reaches its maximum hardness) usually takes 7 to 14 days, though the surface will be safe to touch much sooner.

Technical Comparison of Metal Coating Systems

Common Site Failures and Field Fixes

• Failure Scenario: Blistering shortly after application.


  • Root Cause: The metal was too hot during application, causing the solvents in the paint to evaporate too quickly, trapping air beneath the film.
  • Actionable Fix: Sand the blistered area back down to the metal, clean with solvent, and repaint during cooler morning hours.
• Failure Scenario: Paint peeling in sheets.


  • Root Cause: Inadequate surface preparation, specifically the failure to remove factory-applied release agents or residual oil.
  • Actionable Fix: Strip the affected area entirely, degrease again with a dedicated heavy-duty cleaner, and re-prime before applying the topcoat.
• Failure Scenario: Rust "bleeding" through the new paint.


  • Root Cause: The primer was applied over active rust without using a chemical converter or sufficient mechanical removal.
  • Actionable Fix: Apply a phosphoric acid rust converter to the area, allow it to dry to a black matte finish, then prime and repaint.

Frequently Asked Questions

Can I paint over existing powder-coated railings?

Yes, but you must lightly sand the existing powder coat with 150-grit sandpaper to "scuff" the surface, which provides the necessary mechanical tooth for the new paint to adhere. Follow this with a thorough degreasing and a high-quality bonding primer to ensure long-term durability.

Do I really need a primer if my paint says it is "paint and primer in one"?

While these products are convenient, they are rarely as effective as a dedicated, high-performance metal primer. If the railing has any history of rust or if the environment is humid or coastal, using a separate, high-quality corrosion-inhibiting primer is the industry standard for longevity.

What is the best weather condition to paint metal railings?

The ideal environment is an overcast day with temperatures between 60°F and 75°F. Direct, intense sunlight can cause the paint to dry too fast, leading to brush marks, while temperatures below 50°F can prevent the binder resins from forming a continuous, protective film.

How do I prevent paint drips on vertical pickets?

Use a "dry brush" technique by wiping excess paint off your brush onto the rim of the can before touching the metal. Always start your stroke from the bottom of the picket and move upward, and constantly monitor the flat horizontal rails for pooling paint that may have migrated from the vertical members.

Master the preservation of your architectural metalwork by utilizing these professional techniques for a flawless, weather-resistant finish. Invest in high-grade primers and proper abrasive preparation today to ensure your railings remain structural and aesthetic for years to come.
