The Comprehensive Guide On How To Work Out Gearbox Ratios
Calculating gearbox ratios requires determining the mechanical advantage between the driving gear and the driven gear by dividing the number of teeth on the output gear by the number of teeth on the input gear. This fundamental calculation dictates rotational speed, torque output, and overall powertrain efficiency, serving as the cornerstone for automotive engineering, robotics, and industrial machinery design.
Engineering Fundamentals and Calculation Prerequisites
Before commencing any gear ratio calculation, you must confirm the physical integrity of the gear train and understand the standard nomenclature used in mechanical power transmission. Gear ratios are not merely mathematical abstractions; they represent the transformation of rotational velocity into mechanical work. Whether you are tuning a performance transmission, designing a reduction gearbox for an electric motor, or troubleshooting industrial drive failure, precision is paramount.
- Essential Gear for Field and Bench Analysis:
- Precision digital calipers for measuring gear pitch diameter and module.
- High-contrast marking paint or grease pens for identifying gear tooth counts (teeth marking).
- Digital tachometer for validating output rotational speed against theoretical calculations.
- Technical documentation: OEM gear train schematics or CAD software for theoretical verification.
- Mandatory Prerequisite Knowledge: Understanding of the Pitch Circle Diameter, circular pitch, and the relationship between input (driver) and output (driven) gears.
- Estimated Duration for Basic Gearbox Audit: 30 to 60 minutes for a single-stage reduction unit, depending on housing accessibility.
Calculating Mechanical Advantage Step-by-Step
Step 1: Determining Tooth Count and Input-Output Direction
To begin, identify the driving gear, which is the gear attached to the power source, and the driven gear, which receives the power. Count the number of teeth on the driving gear (often referred to as the pinion if it is the smaller gear) and the driven gear. For complex multi-stage gearboxes, label each gear in the sequence to prevent miscalculation.
Pro-Tip: If the gear teeth are too small to count visually, utilize a grease pen to mark the first tooth and rotate the gear one full revolution, marking every tenth tooth to ensure an accurate count.
Step 2: Applying the Fundamental Gear Ratio Formula
The primary gear ratio formula is defined as the driven gear tooth count divided by the driving gear tooth count. If you are calculating the ratio for a simple two-gear system where the driver has 20 teeth and the driven has 40 teeth, you divide 40 by 20 to achieve a ratio of 2.0:1. This signifies that the input gear must rotate twice for the output gear to complete one single rotation.
Step 3: Integrating Multi-Stage Compound Ratios
In scenarios involving a compound gearbox—where multiple gear sets are connected in series—the total ratio is determined by the product of the individual stages. For example, if Stage One has a 2:1 ratio and Stage Two has a 3:1 ratio, the total gearbox ratio is the product of 2 and 3, resulting in a 6:1 total reduction.
Warning: Failure to account for every stage in a multi-stage transmission will result in significant underestimation of torque multiplication and overestimation of rotational speed at the final drive.
Step 4: Accounting for Idler Gears
An idler gear is a gear placed between the driver and driven gears that does not affect the final ratio. Its primary purpose is to change the direction of rotation or bridge a physical distance between shafts. When performing your calculation, exclude any idler gears from the equation entirely, as they do not provide mechanical advantage or speed reduction.

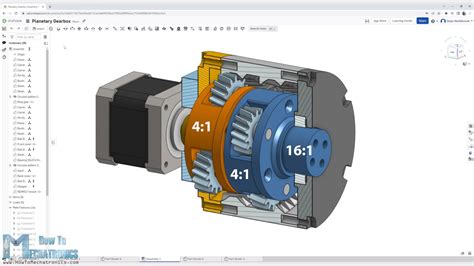

Planetary Gearbox Ratios Explained | Efficiency & Performance
Technical Parameters and Gear Configuration Matrix
The following table outlines standard performance characteristics associated with common gear ratio configurations found in industrial and automotive applications.
| Gear Ratio Type | Numerical Ratio | Speed Effect | Torque Effect | Primary Application |
|---|---|---|---|---|
| Overdrive | 0.8:1 | Increased | Decreased | Fuel efficiency, highway cruising |
| Direct Drive | 1.0:1 | Neutral | Neutral | Performance balancing, 1:1 transfer |
| Underdrive | 2.5:1 | Reduced | Increased | High-load towing, off-road crawling |
| High Reduction | 5.0:1+ | Significantly Reduced | Exponentially Increased | Heavy industrial lifting, robotics |
Field Troubleshooting and Performance Correction
Even with precise calculations, gearboxes often exhibit unexpected behavior in real-world conditions. Understanding the root causes of these deviations is essential for maintaining mechanical longevity.
- Scenario: Excessive Heat Generation
- Root Cause: Incorrect mesh alignment or insufficient lubricant viscosity leading to parasitic friction.
- Actionable Fix: Verify the gear backlash using feeler gauges to ensure it meets manufacturer specifications and inspect the lubricant for metallic particulate contamination.
- Scenario: Unexpected Output Speed Variance
- Root Cause: Identification error regarding the actual number of teeth or the inclusion of an internal planetary gear set without accounting for the stationary ring gear.
- Actionable Fix: Re-verify the tooth count on every gear in the train and confirm if the gearbox utilizes planetary carriers, which require a different formula (Ratio = 1 + (Ring Teeth / Sun Teeth)).
- Scenario: Gear Train Binding or Jamming
- Root Cause: Debris contamination in the gear mesh or thermal expansion caused by exceeding the load rating of the gear material.
- Actionable Fix: Thoroughly clean the gear assembly with an industrial solvent and verify that the gear material modulus matches the operational load requirements of the motor.
Frequently Asked Questions
How does changing the gear ratio affect my engine torque?
Increasing the gear ratio (a higher number) increases the torque available at the wheels or the output shaft, but it decreases the top rotational speed. This is effectively a trade-off where mechanical advantage is gained at the expense of maximum velocity.
What is the purpose of backlash in a gearbox?
Backlash is the clearance between mating gear teeth. It is necessary to prevent the gears from binding due to thermal expansion, manufacturing tolerances, or oil film buildup, though excessive backlash can lead to gear clatter and timing inaccuracies.
Do smaller gears always lead to faster output speeds?
When a small gear drives a larger gear, the output speed is reduced while torque increases. Conversely, when a large gear drives a smaller gear, the output speed increases while torque is reduced.
Can I change gear ratios in a sealed factory gearbox?
Most sealed or "lubed-for-life" gearboxes are not designed for internal modification. Changing gear ratios in these units usually requires replacing the entire gear set or the gearbox housing to accommodate different tooth configurations.
Professional Gearbox Maintenance and Optimization
To ensure your equipment operates within design parameters, conduct periodic audits of your gearbox output speeds and tooth wear patterns. Mastering these calculations enables you to optimize machinery for specific tasks, whether it is maximizing towing capacity or refining industrial production throughput. Contact our technical support team for assistance with complex gear train analysis or to request a consultation on your specific mechanical configuration.
