How To Wire Two 12 Volt Batteries Together: Series Vs. Parallel Configurations

Wiring two 12-volt batteries together involves either a series connection to increase voltage output to 24 volts or a parallel connection to increase total amp-hour capacity while maintaining a 12-volt output. Achieving a safe, stable setup requires matching battery chemistries, capacities, and ages to prevent internal resistance imbalances that lead to premature cell degradation or thermal runaway.

Pre-Operation Requirements and Essential Safety Equipment

Before modifying any battery bank, you must confirm that both units are identical in chemistry, brand, and age. Mixing battery types, such as connecting a deep-cycle AGM battery with a standard flooded lead-acid battery, causes the charging system to under-charge one unit and over-charge the other. This mismatch leads to rapid sulfation or potential casing rupture.

• Required Tools and Materials:
• Digital Multimeter: Used to verify terminal voltage before and after the connection process.
• Insulated Wrench Set: Always use insulated tools to prevent accidental short circuits across the terminals.
• Battery Interconnect Cables: Use high-strand-count copper cables sized appropriately for the expected current load (typically 2 to 4 AWG for most solar or marine applications).
• Terminal Lugs and Heat Shrink: Ensure all connections are crimped using a heavy-duty hydraulic or manual lug crimper and sealed with adhesive-lined heat shrink to prevent corrosion.
• Safety Gear: Wear chemical-resistant gloves and indirect-vent safety goggles to protect against electrolyte splashes or terminal arcing.
• Technical Prerequisite: Ensure both batteries are charged to the same state of charge before connecting them, as connecting a fully charged battery to a depleted one causes a high-current surge that can damage internal plates.

Procedural Execution: Series and Parallel Wiring Methods

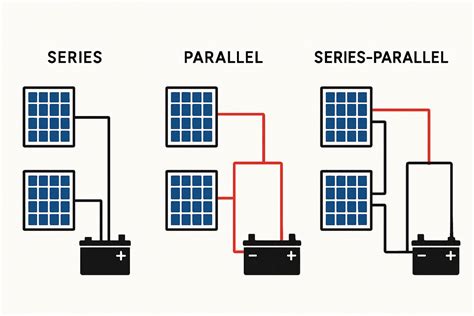

The configuration you choose depends entirely on whether your load requires a higher voltage or longer runtime. Series wiring doubles the voltage, while parallel wiring doubles the current capacity.

Step 1: Evaluating the Intended Configuration

First, determine your system requirements. If your inverter or motor controller requires 24 volts, you must use a series connection. If you are extending the runtime of a 12-volt lighting or small appliance circuit, you must use a parallel connection. Verify that your battery management system, if applicable, supports the total capacity or voltage of the combined bank.

Step 2: Executing a Series Connection for 24 Volts

To wire batteries in series, you are linking them to create a higher potential difference. This combines the voltage of both batteries while the capacity remains equal to that of a single unit.

1. Connect the negative terminal of the first battery to the positive terminal of the second battery using a short, heavy-gauge interconnect cable.
2. Tighten the nuts to the manufacturer-specified torque—typically between 6 and 8 foot-pounds for standard stud-post batteries.
3. Identify the remaining unused terminals: the positive terminal on the first battery and the negative terminal on the second battery.
4. Attach your load’s positive cable to the open positive terminal and your load’s negative cable to the open negative terminal.
5. Use your multimeter to test the voltage across the two open terminals; you should observe a measurement between 24 and 25.6 volts for fully charged lead-acid units.

Warning: Never connect the positive and negative terminals of the same battery during the installation process, as this creates a direct short circuit, causing extreme heat, sparking, and potential fire.

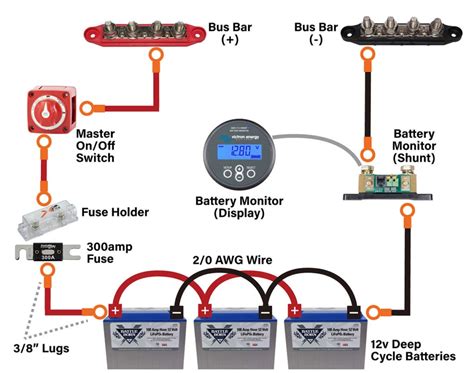

Step 3: Executing a Parallel Connection for Extended Capacity

A parallel connection increases the amp-hour rating while keeping the voltage at 12 volts. This is common in off-grid solar storage where you need to maximize energy density without changing the system voltage.

1. Connect the positive terminal of the first battery to the positive terminal of the second battery.
2. Connect the negative terminal of the first battery to the negative terminal of the second battery.
3. Attach the load’s positive connection to the positive terminal of the first battery and the load’s negative connection to the negative terminal of the second battery. This "cross-loading" technique ensures even current draw from both batteries.
4. Verify the voltage across the load cables; it should remain at 12 to 12.8 volts, identical to a single battery.

Pro-Tip: Always verify the polarity of every terminal before tightening the lugs. Even experienced technicians can mistake color coding under poor lighting conditions; use a multimeter on every connection point to confirm voltage polarity before completing the circuit.

Technical Parameters and Configuration Comparison

The table below outlines the primary outcomes when connecting two identical 12-volt, 100-amp-hour (Ah) batteries.

Identifying and Resolving System Failures

Field failures often result from poor terminal maintenance or mismatched aging cycles. Addressing these early prevents the failure of the entire battery bank.

• Root Cause: Voltage Imbalance. If one battery is older than the other, it will have a higher internal resistance, causing it to finish charging before the second battery.


  • Actionable Fix: Periodically disconnect the batteries and charge them individually to a 100% state of charge to resynchronize their voltages.
• Root Cause: High Resistance Connections. Loose terminals or oxidized contact points generate heat, which can melt battery posts or plastic casings.


  • Actionable Fix: Clean all terminals with a wire brush to remove oxidation, apply a thin layer of dielectric grease, and re-torque all nuts to the manufacturer's specification.
• Root Cause: Thermal Runaway. When one battery develops an internal short, it draws excess current from the other battery, leading to overheating.


  • Actionable Fix: Immediately disconnect the bank if you notice a "rotten egg" smell or excessive heat on one casing. Test each battery individually with a load tester to identify and replace the damaged unit.

Frequently Asked Questions

Can I connect a 12-volt battery to a 24-volt battery?

No, you should never connect batteries of different voltages. This creates a significant voltage imbalance that will destroy the lower-voltage battery, potentially leading to fires, electrolyte boiling, or permanent equipment damage.

Do I need a fuse when wiring two batteries together?

Yes, you must install an appropriately sized fuse or circuit breaker as close to the positive terminal of each battery as possible. This protects the interconnect cables and the batteries themselves in the event of a short circuit or load-side failure.

Should I use the same cable length for parallel connections?

Yes, using identical lengths of cable for your parallel interconnects is critical. Unequal cable lengths create varying resistance, causing one battery to work harder than the other, which leads to premature aging.

Does wiring batteries in parallel increase the speed of charging?

No, the batteries will take longer to charge because the total capacity is doubled. While the capacity is higher, the charger must work longer to move the total required electrons into the expanded storage volume.
