How To Wire Two 12 Volt Batteries In Parallel For Increased Capacity
Wiring two 12-volt batteries in parallel involves connecting positive terminals to positive terminals and negative terminals to negative terminals, which maintains a 12-volt output while doubling the available amp-hour capacity. This configuration is standard for deep-cycle solar arrays, marine power systems, and off-grid storage setups where extended run-time is prioritized over increased voltage.
Essential Preparation and Technical Requirements
Before beginning the installation, verifying the compatibility of the batteries is the most critical step to prevent thermal runaway or uneven discharge cycles. Connecting two mismatched batteries—specifically those with different chemistries, age, or capacity ratings—can lead to the stronger battery continuously charging the weaker one, significantly reducing the lifespan of both units.
Essential Tools and Materials:
- Two 12-volt batteries of identical brand, model, age, and state of charge.
- Heavy-gauge copper battery interconnect cables, sized appropriately for the expected peak current load (typically 2 AWG or 4 AWG).
- Ring terminals crimped onto cables for secure, low-resistance connections.
- A digital multimeter for verifying voltage parity.
- A torque wrench for tightening terminal nuts to manufacturer specifications.
- Insulated gloves and safety goggles.
Mandatory Standards:
- Ensure the state of charge is identical before connection; batteries should be within 0.1 volts of each other.
- Calculate the total amperage load of your system to ensure your cabling can handle the current without overheating.
- Maintain a clean workspace free of conductive metal debris to prevent short circuits.
Technical Execution of the Parallel Connection Workflow
Step 1: Pre-Connection Voltage Verification
Using your multimeter, measure the resting voltage of both batteries individually. If the voltages differ by more than 0.1 volts, charge the batteries separately using a smart charger until they are equal. Connecting batteries with significant voltage differences will cause a large, potentially damaging current surge between them as the higher-voltage battery attempts to equalize with the lower-voltage one.
Step 2: Configuring Positive Terminal Connections
Identify the positive terminal on both batteries, typically marked with a red cap or a plus symbol. Connect a primary jumper cable from the positive terminal of the first battery to the positive terminal of the second battery. Tighten the terminal nuts firmly using a torque wrench. Avoid over-tightening, as this can strip the lead threads common on many deep-cycle posts.
Warning: Never allow a metallic tool to bridge the positive terminal of the battery and the negative terminal or the metal frame of the vehicle, as this will create an instantaneous, high-amperage short circuit.
Step 3: Configuring Negative Terminal Connections
Identify the negative terminals, usually marked black or with a minus sign. Connect a second jumper cable from the negative terminal of the first battery to the negative terminal of the second battery. Once both cables are attached, the batteries are electrically in parallel. Your system now acts as a single 12-volt power source with a capacity equal to the sum of the two individual batteries.
Step 4: Finalizing System Output Connections

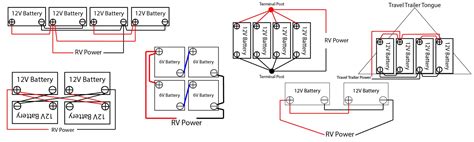

To draw power from the bank, you must connect your system's main positive cable (the one leading to your inverter or DC load) to the positive terminal of the first battery. You must then connect the system's main negative cable to the negative terminal of the second battery. This is known as a diagonal connection or cross-connection method.
Pro-Tip: Utilizing the cross-connection method ensures that the resistance path is balanced between both batteries, preventing one battery from doing more work than the other and extending the life of the entire battery bank.
How To Wire Two 12 Volt Car Batteries In Series at Alma Jones blog
Battery Bank Parameters and System Metrics
When scaling battery capacity, it is essential to understand the mathematical relationship between voltage, capacity, and current flow. The following table illustrates the impact of different wiring configurations on a standard 12-volt battery bank using two 100 Amp-hour (Ah) units.
| Configuration | Total Voltage | Total Capacity | Primary Use Case |
|---|---|---|---|
| Parallel Connection | 12 Volts | 200 Amp-hours | High-draw, extended-duration 12V systems |
| Series Connection | 24 Volts | 100 Amp-hours | High-voltage efficiency, long cable runs |
| Independent Usage | 12 Volts | 100 Amp-hours | Backup systems or dual-battery isolation |
Troubleshooting Potential Field Issues
Field failures in parallel battery banks often stem from improper connection techniques or lack of maintenance. Addressing these issues early prevents permanent sulfation or catastrophic failure.
- Root Cause: Voltage Mismatch and Current Imbalance.
- Actionable Fix: If you notice one battery running significantly hotter than the other, disconnect both and charge them individually. Inspect cables for signs of heat stress and verify that the connection points are clean and free of oxidation.
- Root Cause: High Resistance at Connection Points.
- Actionable Fix: If the system voltage drops excessively under load, clean the battery terminals with a wire brush to remove corrosion. Apply a thin layer of terminal protector spray and ensure all ring terminals are flush against the battery lead.
- Root Cause: Premature Discharge.
- Actionable Fix: One battery may have a shorted internal cell. Disconnect the batteries and let them sit for 24 hours while monitoring individual voltage. If one battery loses voltage consistently, it is compromised and must be replaced; do not attempt to add a new battery to a bank with an old, failing one.
Frequently Asked Questions
Can I mix different battery brands if they have the same voltage?
It is strongly discouraged. Even batteries with identical voltage ratings often have different internal resistances, discharge curves, and charging requirements. Mixing brands will lead to one battery carrying the majority of the load, causing it to fail prematurely.
Does wiring batteries in parallel increase the total power?
Yes, parallel wiring increases the total energy capacity measured in Amp-hours. While the voltage remains at 12 volts, you effectively double the amount of time your equipment can run before the battery bank reaches its depth-of-discharge limit.
Is a fuse required for parallel battery banks?
Yes, you should install a high-amperage fuse on the positive main cable leading from each battery to the common bus. This prevents fire hazards in the event of a short circuit in the wiring between the batteries or the main system load.
How do I charge a parallel battery bank?
You can treat the parallel bank as one large battery. Use a charger matched to the chemistry of your batteries (e.g., AGM, Lithium, or Flooded Lead Acid) and ensure the charger’s amperage rating is appropriate for the total capacity of the bank to avoid excessive charging times.
Can I parallel more than two batteries?
Yes, you can parallel multiple batteries, but you must ensure all interconnecting cables are of identical length and gauge to maintain balanced resistance. For large banks, consider using a busbar system to centralize connections and improve current distribution.
Upgrade your power storage reliability by following these professional connection protocols for your next energy project. Contact our technical support team to verify your specific system configuration and load requirements today.
