How To Wire A Solar Panel To A Battery: The Complete Step-by-Step Installation Guide
Wiring a solar panel to a battery requires a charge controller to regulate voltage and prevent overcharging, ensuring a safe and efficient 12V or 24V off-grid power system. By following the correct connection sequence—connecting the battery to the controller first before adding the solar panel—you protect your sensitive electronics and maximize your battery bank's operational lifespan.
Pre-Operation & Equipment Checklist
Setting up a safe and efficient off-grid solar charging system requires careful preparation, the right components, and an understanding of electrical safety standards. Whether you are building a backup power station for emergencies, a camper van electrical system, or a remote cabin setup, proper sizing prevents component failure and fire hazards.
- Essential Gear, Tools, and Materials:
- Monocrystalline or polycrystalline solar panel (e.g., 100W or 200W variants)
- Deep-cycle battery (AGM, Gel, or Lithium Iron Phosphate / LiFePO4)
- Solar charge controller (PWM or MPPT type matched to your panel voltage and current)
- DC-rated wire (typically 10 AWG or 12 AWG stranded copper)
- Inline fuse holders and fuses (rated appropriately for your wire size and amperage)
- Multimeter for voltage and polarity verification
- Wire strippers, crimpers, and MC4 connector assembly tools
- Mandatory Prerequisite Knowledge and Standards:
- Understanding of Ohm’s Law (Voltage = Current × Resistance)
- Familiarity with National Electrical Code (NEC) guidelines for DC photovoltaic systems
- Basic understanding of open-circuit voltage (Voc) and short-circuit current (Isc) ratings
- Estimated Budget and Duration Benchmarks:
- Budget: $150 to $600+ depending on battery chemistry and panel wattage
- Duration: 1 to 2 hours of hands-on installation time for beginners
Step-by-Step Off-Grid Solar Wiring Workflow
Step 1: Position and Inspect Your Components
Before making any physical electrical connections, inspect your solar panel, charge controller, and deep-cycle battery for physical damage, cracks, or loose terminals. Place your solar panel in a shaded area or cover it completely with an opaque tarp or cardboard. This step is critical because an exposed solar panel generates electrical current immediately when hit by sunlight, creating a severe shock and sparking hazard during installation. Use your digital multimeter to verify the battery's resting voltage, ensuring it sits within a healthy operating range (typically above 12.0V for a standard 12V lead-acid battery or 13.0V for LiFePO4).
Warning: Never expose bare solar wires to direct sunlight before they are securely terminated, as accidental short circuits can permanently damage your equipment or cause severe personal injury.
Step 2: Connect the Battery to the Charge Controller First
The Golden Rule of solar installation is to always connect the battery to the charge controller before connecting the solar panels. Locate the battery terminals on your charge controller, which are universally marked with a battery icon or plus and minus symbols. Strip approximately one-half inch of insulation from your DC wire, crimp on the appropriate ring terminals or ferrules, and secure them to the controller's battery terminals. Next, connect the opposite end of these wires to your battery terminals, ensuring the positive wire connects to the positive terminal and the negative connects to the negative terminal. Install an appropriate DC fuse inline on the positive wire as close to the battery as possible.
Pro-Tip: Connecting the battery first allows the charge controller to automatically detect the system voltage (12V or 24V) and calibrate its internal microprocessor before receiving power from the array.
Step 3: Configure Controller Settings and Verify Power-On
Once the battery is successfully wired to the charge controller, the controller's display screen or indicator LED lights should illuminate, signaling that it is receiving power from the battery bank. Access the controller menu settings to select your specific battery chemistry—such as Flooded, AGM, Gel, or Lithium. Selecting the correct chemistry is vital because lithium batteries require different charging profiles and cutoff voltages compared to traditional lead-acid variants. Verify that the system voltage registers correctly on the screen before proceeding to the next phase of the installation.
Step 4: Route and Attach the Solar Panel Wires
With the charge controller powered on and correctly calibrated to your battery, you can now bring in the solar panel wiring. Attach MC4 extension cables to the positive and negative leads coming from the back of your solar panel, ensuring the connectors snap together securely with an audible click. Route these wires carefully to your charge controller location, avoiding sharp metal edges, high-heat engine bays, or areas where they might get pinched. Strip the ends of the wires that will insert into the charge controller, and install an inline DC fuse or circuit breaker on the positive solar wire to protect against overcurrent faults from lightning or panel surges.
Step 5: Connect the Solar Panel to the Controller and Test
Insert the positive solar wire into the positive photovoltaic terminal on the charge controller and tighten the screw clamp securely, followed by the negative solar wire. Once these connections are secure, remove the opaque cover or tarp from your solar panel to expose the photovoltaic cells to direct sunlight. Observe the charge controller display to verify that charging current is flowing into the battery bank, indicated by a rising charging current (Amps) and an increasing battery voltage. Secure all loose cables with zip ties and weatherproof any outdoor connections to complete a robust, long-lasting off-grid power installation.

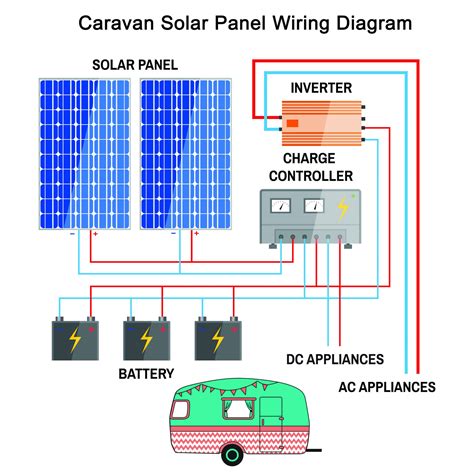

Solar Panel Wiring Types _ How to Wire Solar Panels: A Practical Guide ...
Technical Parameter Comparison for Off-Grid Solar Components
| Component / Parameter | PWM Charge Controller | MPPT Charge Controller | AGM Deep-Cycle Battery | LiFePO4 Lithium Battery |
|---|---|---|---|---|
| Efficiency Rating | 70% to 80% | 95% to 99% | 80% to 85% | 95% to 99% |
| Best Used For | Small, budget 12V systems | Large, high-voltage arrays | Standard backup & RV power | Premium weight-saving setups |
| Depth of Discharge | N/A (Controller Metric) | N/A (Controller Metric) | 50% recommended limit | 80% to 90% usable capacity |
| Cost Profile | Economical / Low Cost | Premium / Higher Cost | Moderate upfront cost | Higher upfront, lower lifetime cost |
Troubleshooting Common Off-Grid Solar Wiring Issues
- Root Cause: The charge controller displays a flashing error code or refuses to turn on when the battery is connected.
- Actionable Fix: Check your battery polarity with a multimeter. If the positive and negative wires were accidentally reversed, the internal reverse polarity protection fuse inside the controller may have blown, or built-in MOSFET protections may be triggered. Disconnect everything immediately, correct the wiring, and replace any blown fuses.
- Root Cause: Solar panel output voltage is reading correctly in full sun, but zero charging current is reaching the battery.
- Actionable Fix: Inspect the inline fuse located between the solar panel and the charge controller. A blown fuse caused by a temporary short circuit or panel surge will open the circuit and halt all power flow. Replace the fuse and inspect wire insulation for abrasion.
- Root Cause: The battery voltage remains low despite a full day of direct sunlight exposure on the solar panel.
- Actionable Fix: Verify that your charge controller chemistry settings match your exact battery type. If a lithium battery is charged using an aggressive lead-acid equalization profile, or vice versa, the internal BMS (Battery Management System) may trip its protective lockout mode, preventing charge acceptance.
Frequently Asked Questions
Can I connect a solar panel directly to a battery without a charge controller?
Connecting a small 12V solar panel (under 5 watts) directly to a large battery bank is sometimes acceptable for trickle charging, but connecting standard 50W to 400W panels directly will overcharge and boil dry lead-acid batteries or ruin lithium cells. A charge controller is mandatory for any mid-to-large system to regulate voltage and prevent catastrophic battery damage.
What size wire do I need to connect my solar panel to the charge controller?
Wire size depends on the total current (Amperage) produced by your solar panel and the physical distance between the panel and the charge controller. For most 100W to 200W systems running 12 volts, 10 AWG stranded copper wire is the industry standard to prevent excessive voltage drop over short runs. Always consult an American Wire Gauge voltage drop calculator for runs exceeding 15 feet.
Should I use a PWM or MPPT charge controller for my setup?
PWM (Pulse Width Modulation) controllers are cost-effective and ideal for small, budget-friendly 12V setups where the solar panel voltage matches the battery voltage closely. MPPT (Maximum Power Point Tracking) controllers are significantly more efficient, converting excess panel voltage into usable charging amperage, making them the superior choice for larger, mixed-voltage array configurations.
What happens if I accidentally reverse the polarity on my solar charge controller?
Reversing the positive and negative wires on a low-quality charge controller can instantly fry the internal circuitry, causing permanent failure. Higher-end modern controllers feature built-in reverse polarity protection that triggers an error code and safely blocks current until the wiring is corrected. Always double-check your multimeter readings before tightening terminal screws.
