The Professional Guide: How To Wire A Picture Frame For Secure Wall Hanging

Properly wiring a picture frame requires balancing the tensile strength of the hanging wire against the total weight of the artwork to ensure long-term stability and wall protection. By installing D-rings one-third of the way down from the top and utilizing a multi-strand braided steel wire, you create a load-bearing system that prevents forward tilting and hardware failure.

Essential Preparation and Structural Requirements

Achieving a professional-grade mount necessitates using the correct gauge of hardware based on the weight of the frame. Improper selection leads to frame bowing, glass breakage, or catastrophic failure where the wire snaps or the D-rings pull from the wood. Before beginning, ensure the frame's backing is solid, such as wood or high-density composite, as hollow frames may not support screw-in hardware.

• Essential Tools: A cordless drill with a 1/16-inch pilot bit, a screwdriver that matches the D-ring screw head (typically Phillips), wire cutters capable of shearing steel, and a pair of needle-nose pliers for tightening the twist.

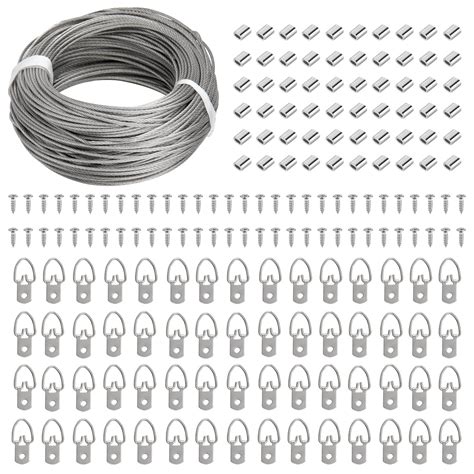

• Mandatory Materials: Braided stainless steel picture hanging wire (rated for at least double the frame's weight), two heavy-duty D-rings, and felt or cork bumpers to prevent wall abrasion.
• Procedural Benchmarks: This process takes approximately 15 to 20 minutes for a beginner. Professional standards dictate that the wire should never be visible above the top of the frame when hung and should maintain a slight V-shape tension when pulled gently upward.

The Technical Execution of Professional Frame Wiring

Step 1: Measuring and Positioning the D-Rings

Identify the vertical center line of the frame. Measure the total height of the frame and divide that number by three. Mark two points on the inside vertical edges of the frame at this height. Placing the hardware higher than the one-third mark creates an unstable frame that tends to lean forward; placing them too low increases the stress on the wire and the risk of the frame flipping downward. Always drill a 1/16-inch pilot hole before driving the screws into the frame to prevent the wood from splitting.

Step 2: Attaching the Hardware

Align the D-rings over the pilot holes with the rings oriented toward the center of the frame. Use the provided screws to secure the D-rings tightly. Ensure the rings do not rotate freely or sit loose; a loose D-ring allows the frame to shift on the wall over time, leading to crooked displays. If the frame wood is thin, use slightly shorter screws or reinforce the area with a small drop of wood glue on the screw threads before insertion.

Step 3: Threading the Wire

Insert one end of the braided steel wire through the D-ring. Pull approximately 4 to 6 inches of wire through the ring. Wrap the short end around the long standing part of the wire at least four to five times. Use your needle-nose pliers to pull the coils tight against the D-ring. Repeat this process on the second D-ring, but do not pull the wire completely taut yet. The wire must have enough slack to form a shallow triangle when pulled toward the top rail of the frame.

Step 4: Final Tensioning and Safety Finishing

Before finalizing the tension, ensure the wire sits at least 2 inches below the top edge of the frame. Pull the wire firmly toward the top, creating the necessary tension, and secure the final twist. If the wire is too loose, the frame will hang away from the wall; if it is too tight, it will be difficult to hook onto the wall fastener. Once secured, use your needle-nose pliers to fold any sharp, protruding wire ends back into the coils to prevent them from scratching the wall surface. Finally, apply adhesive felt or cork bumpers to the bottom two corners of the frame. This creates a small gap for airflow, prevents the frame from shifting, and protects the wall paint from scuffs.

Technical Parameters for Hardware Selection

Field Failures and Remediation Strategies

• Failure: The frame continually leans forward or tilts.


  • Root Cause: The D-rings were installed too low or the wire is too long.
  • Actionable Fix: Reposition the D-rings to the one-third mark and shorten the wire to reduce the peak of the triangle.
• Failure: The wire snaps or the D-ring pulls out of the frame.


  • Root Cause: Under-rated wire gauge or failure to use pilot holes, resulting in stripped wood fibers.
  • Actionable Fix: Use a thicker gauge wire and relocate the D-rings to a fresh section of the frame, filling the original holes with wood filler.
• Failure: Scratched or scuffed drywall after installation.


  • Root Cause: Protruding wire ends or lack of protective bumpers.
  • Actionable Fix: Trim excess wire, crimp ends tightly with pliers, and apply adhesive felt corner bumpers to the bottom of the frame.

Frequently Asked Questions

Can I use picture hanging wire for very heavy mirrors?

Yes, but you must calculate the total weight and verify that the wire, D-rings, and wall anchors are all rated to exceed that capacity by at least 25%. For items exceeding 40 pounds, consider using a professional-grade French cleat system rather than traditional wire to distribute the weight more evenly across the frame structure.

Does the type of wire material matter?

Yes, braided stainless steel or galvanized steel is mandatory for framing. Never use nylon or monofilament line, as these materials stretch over time, become brittle with age, and can snap without warning, potentially causing significant damage to your artwork.

How do I hide the wire if the frame is very shallow?

If the frame depth is insufficient to hide the wire, use "offset clips" to pull the wire deeper into the frame or opt for side-mounted D-rings that keep the wire tensioned closer to the frame's back plane. Always ensure the hanging hardware does not protrude beyond the front face of the frame.

Is it necessary to use two wall hooks for wide frames?

For frames wider than 24 inches, using two wall hooks creates a more stable, level hanging experience. Two hooks prevent the wire from bowing the frame's top rail and minimize the tendency for the frame to tilt when bumped or moved by air currents.

Master your next gallery wall installation by selecting the appropriate mounting hardware tailored to your specific frame dimensions and weight class today.
