How To Wire A 7 Pin Trailer Connector: A Comprehensive Technical Guide

Wiring a 7-pin trailer connector requires strict adherence to the SAE J560 standard to ensure vehicle lighting, electronic brake control, and auxiliary power circuits function reliably across different tow vehicles and trailers. The process involves identifying the color-coded wire functions, establishing a clean chassis ground, and verifying circuit continuity using a multimeter to prevent voltage drops or short circuits during operation.

Pre-Operation Preparation and Essential Equipment

Before beginning the installation, verify that the tow vehicle and the trailer utilize a compatible 7-way configuration. The 7-pin connector is the industry standard for heavy-duty towing, supporting critical auxiliary functions such as electric trailer brakes, reverse lights, and constant 12-volt battery charging. Attempting to bypass these protocols by splicing wires without proper insulation or gauge matching often leads to blown fuses or damaged trailer brake controllers.

Essential Gear and Material Checklist

• Wire Strippers and Crimpers: A ratcheting crimp tool is preferred for creating secure, gas-tight connections.
• Butt Connectors and Heat-Shrink Tubing: Use adhesive-lined heat-shrink tubing to seal connections against moisture and corrosion ingress.
• Digital Multimeter: Essential for verifying voltage levels and checking for short-to-ground faults.
• Trailer Wiring Harness: Ensure the harness wire gauge is appropriate for the load; 12-gauge wire is recommended for ground and power circuits, while 14-gauge or 16-gauge is sufficient for lighting.
• Dielectric Grease: Necessary for lubricating pins to prevent oxidation and moisture-induced resistance.
• Zip Ties and Looming: Secure wiring runs away from heat sources and moving suspension components.

Prerequisites and Duration

• Technical Proficiency: Basic understanding of 12V DC circuitry and the ability to identify common wiring color codes.
• Safety Protocol: Disconnect the vehicle battery negative terminal before beginning the process to prevent accidental arcing.
• Estimated Time: 90 to 180 minutes depending on the complexity of the routing and the condition of existing wiring.
• Budget Benchmark: Expect to invest between 40 and 100 dollars for high-quality connectors, protective sleeving, and terminal hardware.

Step-by-Step Installation Workflow

Step 1: Identifying the Pinout Configuration

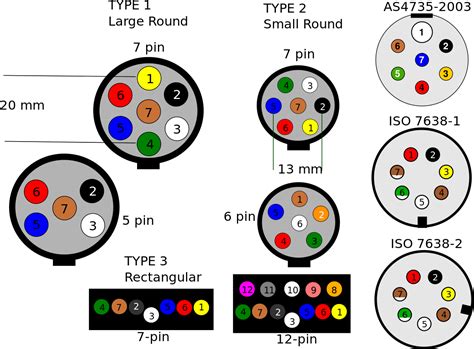

The 7-pin connector follows a specific layout. Viewed from the back of the plug (where wires enter), the center pin is typically the auxiliary power or backup light circuit. The outer pins are arranged in a circle. You must verify the specific manufacturer’s wiring diagram, as some aftermarket connectors vary slightly from standard RV-style configurations. Ensure you cross-reference the pin function—Ground, Tail/Running, Left Turn/Stop, Right Turn/Stop, Electric Brakes, Backup Lights, and Auxiliary Power—against your specific vehicle harness.

Step 2: Preparing and Stripping the Wiring

Strip approximately 3/8-inch of insulation from the ends of each wire. Ensure the exposed copper strands are clean and free of oxidation. If the wires are corroded, trim back until you reach bright, clean copper.

Warning: Do not use electrical tape as a primary method for securing connections; tape adhesive degrades over time due to heat and exposure, leading to intermittent signal loss and potential circuit shorts.

Step 3: Terminating Connections

Insert the stripped wires into the designated terminals of the 7-pin connector. Secure each wire using the provided set screws or crimp lugs. If using screw-down terminals, ensure the wire is firmly held in place and that no stray strands are touching adjacent terminals.

Pro-Tip: Before fully housing the connector, apply a light coat of dielectric grease to every pin to create a moisture-proof barrier that significantly extends the lifespan of the contact points.

Step 4: Establishing a Robust Ground Circuit

The most common cause of trailer lighting failure is a poor chassis ground. Do not rely solely on the hitch ball for the ground connection. Run a dedicated white wire from the trailer ground pin directly to the trailer chassis, ensuring it is bolted to a clean, paint-free metal surface with a star washer for maximum conductivity.

Step 5: Routing and Securing the Harness

Run the wire harness along the trailer frame. Use zip ties every 12 to 18 inches to prevent the wire from sagging or catching on road debris. Use protective split-loom tubing to shield the wires from rocks, road salt, and vibration wear. Ensure enough slack is left at the tongue of the trailer to accommodate tight turning radii without pulling the connector apart.

Technical Specifications and Circuit Parameters

Troubleshooting Common Site Failures

Intermittent Lighting During Turns

• Root Cause: A loose ground connection at the trailer tongue or the junction box is flexing during maneuvers.
• Actionable Fix: Inspect the ground strap or wire connection points. Clean the mating surface with a wire brush, apply fresh dielectric grease, and ensure the bolt is tightened to manufacturer torque specifications.

Trailer Brakes Not Activating

• Root Cause: The blue wire circuit has high resistance, or the brake controller is not receiving a signal from the tow vehicle.
• Actionable Fix: Use a multimeter to check for 12V output at the blue pin when the brake controller is manually activated. If no voltage is present, check the brake controller harness and the vehicle's fuse panel.

Blown Fuses When Lights Activate

• Root Cause: A short-to-ground exists within the trailer harness, often where wires pass through the metal frame.
• Actionable Fix: Perform a continuity test between the individual light circuits and the chassis. Inspect the entire length of the wire for frayed insulation or pinched sections caused by frame vibration.

Frequently Asked Questions

Why do I need 7 pins if my trailer only has brake lights?

Even if your current trailer configuration seems simple, the 7-pin connector is designed for expandability and safety. It provides dedicated circuits for electric brakes and battery charging, which are essential for trailers exceeding 3,000 pounds or those equipped with break-away systems and internal batteries.

Is the 7-way blade connector interchangeable with other styles?

No, the 7-way blade connector is not physically compatible with 4-way or 5-way flat connectors without a specialized adapter. Adapters can bridge the signal gap, but they do not provide the dedicated high-amperage power circuits required for electric trailer brakes.

Can I use household wire for trailer repairs?

Never use household solid-core wire (Romex) for trailer wiring. Trailer wiring must use stranded wire to withstand constant vibration and thermal expansion; solid-core wire will inevitably fatigue, crack, and fail in a mobile environment.

How often should I perform maintenance on the connector?

Inspect your 7-way connector at least twice per year or before any long-distance trip. Clean the pins with a terminal cleaner and re-apply dielectric grease to ensure the contacts remain free of corrosion and provide a secure electrical path.

Ensure Safe Towing Performance

Properly wired trailer connections are the foundation of safe highway operations and effective load control. Verify your installation today to guarantee your trailer lights, brakes, and auxiliary power systems remain fully operational under any road conditions.
