How To Weld Thin Metal: A Comprehensive Guide To Precision Joining

Welding thin-gauge metal requires a precise balance of low heat input, rapid travel speed, and meticulous fit-up to prevent burn-through, warping, and structural deformation. Mastering thin-metal techniques—typically defined as material under 1/8 inch or 11 gauge—demands specialized electrode selection, pulse modulation, and optimized heat-affected zone management to maintain material integrity.

Essential Preparation and Equipment Setup Requirements

Achieving clean, aesthetic, and structural welds on thin-gauge sheet metal is less about power and more about control. Before striking an arc, the material must be prepared to minimize contamination and thermal expansion. Thin metal acts as a heat sink with almost no mass, meaning any gap or impurity will immediately result in a catastrophic hole.

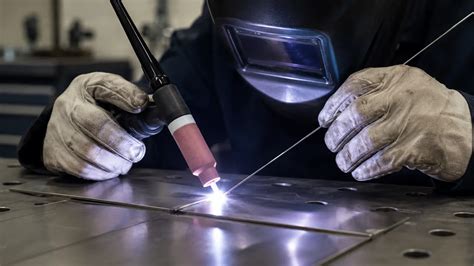

• Welding Process Selection: Gas Tungsten Arc Welding (TIG/GTAW) is the gold standard for thin metal due to independent heat and filler rod control. Gas Metal Arc Welding (GMAW/MIG) is acceptable only if using small diameter wire (0.023 inch) and high-quality shielding gas mixtures (75 percent Argon, 25 percent CO2).
• Surface Preparation: Mechanical cleaning is non-negotiable. Use a dedicated stainless steel wire brush or a flap disc to remove mill scale, paint, or oxidation. Follow with an acetone wipe to ensure zero oil or grease contaminants, which cause porosity in thin-gauge welds.
• Fixture and Clamping: Sheet metal warps instantly under heat. Use copper or aluminum backing bars to act as heat sinks, drawing heat away from the weld puddle. Utilize heavy-duty magnetic squares or cam-action clamps to ensure a zero-gap fit-up.
• Consumables Checklist:


  • TIG: 1/16 inch EWTh-2 or E3 tungsten electrode (sharpened to a needle point).
  • MIG: 0.023 inch ER70S-6 mild steel wire for maximum fluidity.
  • Shielding Gas: 100 percent Argon for TIG; 75/25 Argon/CO2 mix for MIG to minimize spatter.

Procedural Execution for Thin Gauge Fabrication

Step 1: Optimize Machine Parameters

For TIG welding, set your machine to the lowest amperage required to achieve a stable arc. Use the rule of thumb: 1 amp per 0.001 inch of material thickness. If your machine features pulse settings, enable them. A pulse frequency of 1 to 2 pulses per second allows the puddle to cool slightly between arcs, effectively capping the heat input. For MIG, set the wire feed speed and voltage at the very bottom of the manufacturer’s recommended range for the specific sheet gauge.

Step 2: Ensure Zero-Gap Fit-Up

Thin metal is intolerant of poor fit-up. If the joint edges are not perfectly flush, the arc will pull to one side or blow through the edge entirely. If you have a slight gap, do not attempt to fill it with a continuous weld. Instead, use a series of short, quick tack welds spaced 1/2 inch apart along the entire length of the joint before running the final bead.

Warning: Never attempt to weld over a gap wider than the thickness of the material itself. If the fit-up is poor, use a hammer and dolly to reshape the edges until they meet perfectly.

Step 3: Utilize the Tacking and Skip-Welding Technique

To prevent heat buildup and "oil-canning" (where the metal ripples from thermal expansion), never weld a long, continuous bead. Instead, perform short "skip" welds. Tack the entire seam first, then weld in small, segmented sections moving in alternating directions. This allows the heat to dissipate between segments and prevents the cumulative thermal stress that causes massive warpage.

Step 4: Manage Arc Initiation and Travel Speed

Position your torch at a slight drag angle to push the heat toward the thicker part of the joint if possible. Start the arc on the thicker material (if joining two different thicknesses) and quickly transition to the thin material. Move as fast as the puddle allows while maintaining consistent penetration. If you see the edge of the metal starting to "curl" or pull back, you are moving too slow or running too hot; stop immediately, let the piece cool, and adjust your settings.

Pro-Tip: Use a copper or aluminum heat sink backing plate placed directly under the seam. The high thermal conductivity of the copper will pull heat away from the weld zone, preventing burn-through and allowing for a much cleaner, flatter finish.

Technical Parameters and Material Thresholds

The following table outlines the approximate settings for welding common thin-gauge steel using the TIG process, assuming a butt-joint configuration.

Common Failure Scenarios and Field Remedies

• Issue: Excessive Warpage and Distortion


  • Root Cause: Over-accumulation of heat in a localized area during a continuous welding pass.
  • Actionable Fix: Transition to a skip-welding sequence and utilize copper heat sinks. Increase travel speed to reduce the total joules per inch applied to the workpiece.
• Issue: Burn-Through and Pinhole Formation


  • Root Cause: Arc intensity is too high for the material gauge or the travel speed is too slow.
  • Actionable Fix: Reduce amperage and increase travel speed. Ensure the tungsten electrode is sharp; a dull or contaminated tip causes arc wander, which frequently leads to edge melting.
• Issue: Inconsistent Bead Profile


  • Root Cause: Erratic torch control or improper filler rod feeding technique.
  • Actionable Fix: Practice "dry runs" without the arc to ensure your torch path is steady. In TIG, feed the filler rod into the front of the puddle only when the puddle is sufficiently formed, not directly into the arc.

Frequently Asked Questions

Why does my thin metal warp immediately when I start welding?

Thin metal warps because of uneven thermal expansion and contraction. When the weld bead cools, it shrinks and pulls the surrounding metal with it. To minimize this, use a lower amperage, maintain a faster travel speed, and always use copper backing bars to draw heat away from the weld zone.

Should I use AC or DC for thin sheet metal?

If you are TIG welding steel or stainless steel, use DCEN (Direct Current Electrode Negative). DCEN concentrates heat on the material rather than the electrode, which is essential for controlling the puddle on thin gauges. AC is reserved exclusively for aluminum, which requires the cleaning action of the positive cycle to break through the oxide layer.

Is MIG welding better than TIG for beginners on thin metal?

While MIG is generally easier to learn, TIG is vastly superior for thin-metal control. MIG welding produces more spatter and heat, making it prone to burn-through on material thinner than 18 gauge. If you must use MIG, ensure you are using 0.023 inch wire and a short-circuit transfer mode at the lowest stable voltage.

How can I prevent the edges from melting away during a butt weld?

The edges melt because the heat has nowhere to go. You can fix this by using a "joggle" or a flange on the edges, or by clamping a piece of scrap metal flush against the backside of the joint. This scrap piece absorbs the excess heat and acts as a heat sink, keeping the primary edges intact.

Elevate Your Fabrication Standards

Refining your thin-metal welding technique requires consistent practice and a commitment to strict process control. Implement these thermal management strategies today to achieve professional-grade results on your next thin-gauge project.
