How To Wear A Radio Earpiece For Professional Two-Way Communication

Achieving professional-grade radio communication requires the correct ergonomic placement of the earpiece, routing the cable behind the ear to minimize visual footprint, and securing the microphone within a 6-to-8-inch range of the vocal source. Proper installation ensures long-term comfort during extended shifts, prevents signal loss caused by cable tension, and maintains clear audio transmission by mitigating environmental wind noise and accidental microphone occlusion.

Foundational Hardware Configuration and Ergonomic Preparation

Effective radio earpiece deployment relies on the interplay between cable management and acoustic seal integrity. Before attempting to secure the device, users must ensure the hardware is compatible with their specific radio model's multi-pin or single-pin connector. Failure to seat the connector fully into the transceiver port is the most common cause of intermittent audio and "hot mic" incidents, which can compromise security or operational efficiency.

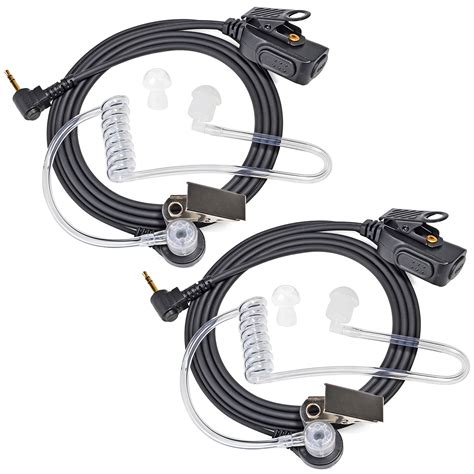

• Essential Gear: Surveillance-style acoustic tube kit, moisture-wicking radio vest or integrated clothing clip, backup silicone ear tip, and alcohol-based cleaning wipes for hygiene maintenance.
• Mandatory Standards: Ensure the PTT (Push-to-Talk) button is accessible without restricting dexterity, and confirm the acoustic tube is free of condensation or blockages that dampen audio output.
• Operational Benchmarks: Setup typically requires 30 to 60 seconds; maintain a constant tension-free loop in the cable to prevent snagging on tactical gear or clothing.

Procedural Workflow for Secure Earpiece Installation

Achieving a secure fit requires a systematic approach to cable routing and acoustic tube placement. Follow these steps to maximize audio clarity and physical security.

Step 1: Connecting the Transceiver Interface

Ensure the radio is powered off before inserting the earpiece connector into the accessory port. Once inserted, tighten the retention screw or snap-lock mechanism. A loose connection creates impedance fluctuations, leading to distorted transmission. Route the main cable under your shirt or jacket to prevent external snagging hazards.

Step 2: Routing the Cable and PTT

Position the PTT button so it rests near your center chest or under your lapel. If using a covert setup, route the cable through the interior loops of your uniform or behind your back. Secure the cable with clips to ensure that turning your head does not pull on the acoustic tube.

Pro-Tip: Always leave approximately one inch of slack at the ear connection point to allow for full range of motion without dislodging the ear tip.

Step 3: Sealing the Acoustic Tube and Ear Tip

Insert the ear tip into your ear canal at a 45-degree angle. If your kit includes a mold, ensure the helix lock is tucked into the concha of your ear. The acoustic tube should loop behind the pinna (outer ear) to distribute the weight of the hardware.

Warning: Do not force the ear tip into the canal; if you feel pressure or pain, the tip size is likely incorrect. A proper fit should feel secure enough to withstand moderate head movement but comfortable enough for an eight-hour duty cycle.

Step 4: Microphone Positioning and Gain Calibration

Clip the microphone at mid-chest level, preferably on the lapel or near the collarbone. Position the mic facing away from your chest to avoid muffling. If the audio is too quiet, verify that your radio’s sensitivity settings are adjusted, but never place the microphone directly against the throat, as this causes excessive vibration interference.

Technical Specifications and Component Parameters

The following table outlines the mechanical and environmental variables associated with various radio earpiece configurations. Users should select components based on their specific work environment to ensure durability and signal clarity.

Troubleshooting Common Deployment Failures

Field failures often result from improper cable stress management or moisture accumulation within the acoustic components. Use these protocols to restore functionality.

• Root Cause: Intermittent Audio Crackle. This is typically caused by a loose connection at the radio chassis or internal wire fraying due to sharp cable bends.


  • Actionable Fix: Inspect the pins on the connector for oxidation and use a non-conductive contact cleaner. Re-seat the connector firmly and ensure the cable loop behind the ear is loose.
• Root Cause: Excess Moisture/Condensation in the Acoustic Tube. Humidity and temperature changes cause air pockets or liquid to form inside the tube, dampening sound.


  • Actionable Fix: Detach the tube from the transducer and blow compressed air or use a thin, flexible cleaning wire to clear the airway.
• Root Cause: Microphone "Hot" or stuck in Transmit Mode. Often caused by debris stuck inside the PTT housing or a short circuit in the cable.


  • Actionable Fix: Remove any surface dust around the PTT button with a soft brush. If the issue persists, the cable assembly likely requires replacement.

Frequently Asked Questions

Why does my radio earpiece keep falling out of my ear?

Your ear tip may be the incorrect size, or the cable is not properly secured to your clothing. Ensure the acoustic tube is looped behind your ear to offload the weight, and use a clothing clip to take the tension off the connection point.

How do I prevent background noise from affecting my transmissions?

Ensure the microphone is positioned 6 to 8 inches from your mouth and is not pressed against fabric. If the environment is extremely loud, cup your hand around the microphone or utilize a noise-canceling accessory specifically designed for high-decibel areas.

Is it safe to wear a radio earpiece for 12 hours straight?

Yes, provided you use a properly fitted, medical-grade silicone ear tip. To prevent ear fatigue or pressure sores, rotate your earpiece to the opposite ear during long shifts if your equipment allows, and always clean the ear tip daily.

Does the acoustic tube need special maintenance?

The acoustic tube is susceptible to wax buildup and condensation. Clean the exterior weekly with an alcohol-free wipe and replace the tube every 3 to 6 months to maintain optimal audio transmission quality and prevent hygiene issues.

Professional Equipment Optimization

Ensure your communication gear meets the high standards required for your operational environment by regularly inspecting cable integrity and acoustic seal quality. Consistent maintenance and proper wearing techniques ensure that your radio remains a reliable tool rather than a liability.
