Virtual Pinball Cabinet: How To Build One From Scratch

Building a custom virtual pinball cabinet requires a delicate balance of precision woodworking, PC hardware selection, and meticulous wiring to simulate the authentic physics and tactile feedback of a physical pinball table. This comprehensive guide details the exact hardware specifications, structural assembly phases, display configurations, and controller interfaces needed to construct a professional-grade digital pinball machine.

Architecture and Hardware Requirements for a Custom Build

Embarking on a virtual pinball build, commonly referred to as a VPin, requires careful planning regarding physical dimensions, processing power, and display integration. A standard widebody or standard-sized cabinet houses three distinct screens: a playfield monitor mimicking the glass and ball playing surface, a backglass monitor displaying animated scoreboards and backdrops, and a smaller DMD (Dot Matrix Display) screen for score readouts and match animations.

• Essential Tools and Materials:




  • 3/4-inch Cabinet-grade Baltic Birch plywood (minimum 3 sheets for a standard widebody design)
  • Circular saw, jigsaw, router with flush-trim bits, and a pocket hole jig
  • Wood glue, 2-inch wood screws, clamps, and wood filler
  • Dedicated gaming PC (Mid-to-high tier GPU such as an NVIDIA RTX 4070, modern multi-core CPU, 32GB RAM)
  • Playfield monitor (43-inch to 49-inch 4K TV with low input lag, stripped of its plastic housing)
  • Backglass monitor (32-inch standard 16:9 TV or monitor)
  • DMD monitor (15-inch LCD panel or dedicated LED matrix display)
  • Encoder boards (Ultimarc IPAC Ultimate or Pinscape controller)
  • Feedback hardware (solenoids, contactors, shaker motor, gear motor, and a Lepai audio amplifier for exciters)

• Prerequisites and Standards:




  • Familiarity with cabinet geometry based on classic Williams, Bally, or Sega widebody blueprints.
  • Basic proficiency in wiring low-voltage direct current (12V/24V) alongside alternating current (120V/240V).
  • Working knowledge of software ecosystems including Pinball FX, Future Pinball, and the Visual Pinball X (VPX) framework.

• Benchmarks:




  • Estimated total project budget: $2,500 to $5,000 depending on screen selection, PC components, and tactile feedback complexity.
  • Estimated build duration: 40 to 60 hours spread across woodworking, painting, wiring, and software configuration.

Step-by-Step Virtual Pinball Cabinet Construction Workflow

Step 1: Woodworking and Cabinet Shell Assembly

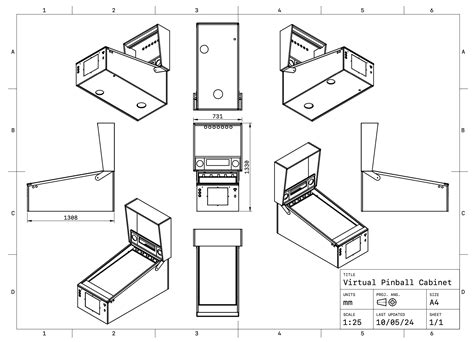

Begin by transferring your chosen pinball cabinet blueprints onto the sheets of 3/4-inch Baltic Birch plywood. Cut out the left and right cabinet sides, bottom panel, backbox, and front coin door baffle using a track saw or circular saw for straight edges. Route the interior channels for the side rails, lockdown bar receiver, and speaker grates before assembly. Join the side panels to the bottom and front panels using wood glue and pocket-hole screws driven from the interior to maintain an unblemished exterior surface. Ensure all diagonal measurements match to maintain a perfectly square housing.

Warning: Always wear respiratory protection and safety glasses when cutting Baltic Birch plywood, as fine wood dust and particulate matter can irritate airways and eyes.

Step 2: Designing and Mounting the Internal Display Matrix

Remove the outer plastic casing from your chosen playfield television while preserving the internal metal chassis and driver boards. Construct an internal shelf system inside the cabinet using adjustable aluminum or wooden rails to support the playfield monitor at a precise downward angle, matching the 6-to-7-degree slope found on real pinball tables. Mount the backglass monitor and DMD screen vertically inside the backbox structure. Secure all monitors with heavy-duty mounting brackets or custom-routed channels to prevent shifting during aggressive gameplay and nudging.

Step 3: Installing PC Hardware and Power Distribution

Mount a large acrylic or wooden motherboard tray to the floor of the lower cabinet section. Install your PC motherboard, power supply unit, and graphics card, routing all power cables cleanly away from data lines to minimize electromagnetic interference. Install a dedicated multi-outlet power strip inside the cabinet controlled by an external master switch or a smart relay. Connect an internal computer power button to a hidden momentary switch on the exterior underside of the cabinet for easy power management.

Pro-Tip: Install dedicated intake and exhaust cooling fans with dust filters near the base and backbox of the cabinet to prevent thermal throttling during extended gaming sessions.

Step 4: Wiring Mechanical Controls and Feedback Devices

Install standard arcade pushbuttons for credit, start, flippers, and magna-save features on the cabinet sides and front rail, wiring them directly to a USB encoder board like the IPAC. Mount physical mechanical contactors, a 12V shaker motor, and a high-torque gear motor to the inner cabinet walls to simulate flipper snap, ball rolls, and bumper hits through the Pinscape control ecosystem. Wire these inductive loads through a dedicated solid-state relay board powered by a separate, high-amperage 12V power supply to protect the computer and controller boards from voltage spikes.

Step 5: Software Installation and Physics Calibration

Install a clean version of Windows on the dedicated PC, disable all unnecessary background services, and install the latest graphics drivers. Download and configure the Visual Pinball X installer package, alongside PinUp Popper as your primary frontend for managing table libraries. Map your mechanical buttons, analog plunger, and accelerometer-based nudging hardware within the software settings. Adjust the DOF (DirectOutput Framework) configuration files to synchronize your mechanical toys with the software events triggered by each virtual pinball table.

Virtual Pinball Component Specifications and Options

Troubleshooting Common Virtual Pinball Assembly and Operation Issues

• Issue: Flipper lag or stuttering during complex multi-ball sequences.




  • Root Cause: Inadequate GPU performance, mismatched display refresh rates, or background Windows services consuming CPU cycles.
  • Actionable Fix: Lock your monitor refresh rate to match the physics physics loop in the Visual Pinball X video settings, enable hardware-accelerated GPU scheduling, and disable real-time Windows Defender scanning on your table directory.

• Issue: Mechanical solenoids and contactors fail to fire during gameplay.




  • Root Cause: Insufficient amperage from the power supply or incorrect assignments within the DirectOutput Framework (DOF) configuration files.
  • Actionable Fix: Verify that your secondary 12V power supply delivers enough wattage to drive all inductive loads simultaneously, and re-download the updated global config files from the DOF config tool website.

• Issue: Persistent humming or buzzing coming through the audio exciters.




  • Root Cause: Ground loop interference caused by sharing power outlets between the PC, the audio amplifier, and the addressable lighting system.
  • Actionable Fix: Insert an inexpensive ground loop isolator between the PC audio output and the amplifier input jack, and ensure all internal electrical grounds tie back to a single common point.

Frequently Asked Questions

What is the best size for a virtual pinball cabinet build?

The widebody cabinet format (measuring approximately 24 to 28 inches in exterior width) is widely considered the gold standard for home builds. It comfortably accommodates standard 43-inch to 49-inch playfield televisions, matching the physical proportions and stance of modern commercial widebody pinball machines.

Can I use a standard office computer for a virtual pinball cabinet?

Standard office computers lack the dedicated graphics processing power required to render complex 3D pinball physics environments across three separate screens simultaneously. A dedicated gaming PC equipped with a modern multi-core processor and a high-end graphics card is mandatory for smooth, stutter-free performance.

How do I make the virtual ball feel like it is hitting the side walls?

You achieve realistic physical feedback by installing electromechanical contactors and exciters directly onto the interior wooden walls of the cabinet. When configured through the DirectOutput Framework, software events like bumper strikes and wall bounces send rapid electrical pulses to these physical devices, shaking the entire wooden chassis.

Do I need a real mechanical plunger to play virtual pinball?

While you can map a standard cabinet button to launch the ball, using an analog potentiometer or optical sensor plunger kit transforms the experience. It allows for variable launch strength based on how far back you pull the physical rod, perfectly mirroring traditional analog gameplay.

Ready to transform your game room with an authentic digital pinball arcade experience? Gather your woodworking materials, select your display panels, and start engineering your ultimate custom cabinet today.
