How To Use A Timing Light For Precision Engine Ignition Tuning
Mastering ignition timing is the definitive method for optimizing engine power, fuel efficiency, and thermal management by ensuring the spark plug fires at the exact moment of peak cylinder pressure. Using a timing light involves synchronizing the strobe flash of the light with the position of the crankshaft or harmonic balancer relative to a static reference point on the engine block.
Pre-Operation Preparation and Essential Diagnostic Gear
Before initiating the ignition timing process, you must establish the mechanical baseline of the engine. Ignition timing is useless if the valve train is out of sync or if there are vacuum leaks altering the air-fuel mixture. Ensure the engine is at operating temperature to allow for proper idle stabilization, but exercise caution around rotating assemblies and high-voltage ignition components.

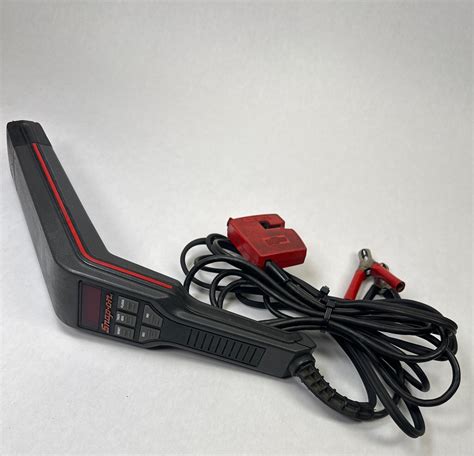

- Essential Tools: A high-quality inductive timing light (dial-back or standard), a set of mechanic’s gloves, safety glasses, a socket set for rotating the crankshaft manually, and masking tape or a white paint pen for marking timing marks.
- Prerequisite Knowledge: Familiarity with your vehicle’s specific firing order, the manufacturer’s base timing specification (usually measured in degrees Before Top Dead Center - BTDC), and the location of the timing pointer on the harmonic balancer.
- Operational Benchmarks: Expect a duration of 20 to 45 minutes for a standard adjustment. Always consult your factory service manual for vacuum advance disconnection protocols, as many systems require a plugged vacuum line to prevent timing advance interference during base setting.
Precision Workflow for Accurate Ignition Timing
Step 1: Establish the Mechanical Baseline
Before connecting the light, locate the timing marks on the harmonic balancer and the pointer on the engine block. Clean these areas thoroughly with a degreaser. Use a white paint pen or a small strip of white masking tape to highlight the specific degree mark requested by your engine manual. If the marks are faint or rusted, spinning the engine by hand with a socket on the crankshaft bolt will help you identify the 0 (TDC) mark and the corresponding degree scale.
Step 2: Configure the Ignition System
Connect the timing light leads: the heavy alligator clips attach to the positive and negative terminals of the battery, and the inductive pickup clamp attaches to the number one spark plug wire. Ensure the clamp is oriented correctly, as many units feature an arrow indicating the direction of spark travel toward the plug. If your engine utilizes a vacuum advance distributor, locate the vacuum hose running to the canister, disconnect it, and plug the end of the hose with a golf tee or bolt to prevent a vacuum leak.
Step 3: Perform the Ignition Sweep
Start the engine and allow it to settle into its designated idle speed. Point the timing light toward the harmonic balancer and pull the trigger. The light will strobe in synchronization with the number one spark plug firing. Observe the position of the highlighted mark relative to the stationary pointer on the engine. If the mark is to the left of the pointer, you have advanced timing; if it is to the right, your timing is retarded.
Warning: Keep all clothing, hair, and timing light leads clear of the fan, alternator belt, and pulleys. Modern high-energy ignition systems can deliver a lethal shock; ensure your inductive clamp is properly insulated and the wire insulation is intact.
Step 4: Adjust the Distributor
Loosen the distributor hold-down bolt just enough to allow the distributor housing to rotate with firm hand pressure. While keeping the timing light aimed at the pointer, rotate the distributor body slowly. You will observe the timing mark on the balancer shift relative to the pointer. Rotate the distributor until the mark aligns perfectly with the factory specification. Tighten the hold-down bolt, recheck the timing to ensure it did not move during tightening, and reconnect the vacuum advance hose.
CCLIFE 10-16V Digital Stroboscopic Timing Light Instruction Manual
Ignition Tuning Parameter Matrix
| Parameter | Function | Impact on Performance |
|---|---|---|
| Base Timing | Idle synchronization | Affects cold start, idle quality, and initial throttle response. |
| Vacuum Advance | Load-sensing timing | Increases efficiency and MPG during light-load highway cruising. |
| Mechanical Advance | RPM-based timing | Ensures optimal burn duration as piston speed increases with RPM. |
| Total Timing | Maximum advancement | The sum of base and mechanical; critical for avoiding detonation/knock. |
Troubleshooting Common Ignition Timing Failures
- Intermittent Light Flash: This is often caused by a loose connection at the spark plug wire or an improper inductive clamp orientation. Ensure the clamp is fully closed and the metal core of the wire is clean. If the issue persists, the spark plug wire may have high resistance due to internal carbon tracking.
- Timing Mark Is Jumping Erratically: A jumping mark usually indicates "timing scatter," which is a symptom of a worn distributor gear, a stretched timing chain, or an improperly seated harmonic balancer. Inspect the balancer for "slippage" where the outer ring has moved relative to the hub.
- Engine Pinging Under Load: This is a classic symptom of "over-advanced" timing. If the timing is set to factory specs but the engine pings, you may have an issue with fuel octane quality or excessive carbon buildup in the combustion chamber. Retard the timing by two degrees and test again.
Frequently Asked Questions
Do I need a dial-back timing light or a standard light?
A standard timing light works perfectly if your engine has a clear degree scale on the harmonic balancer. A dial-back light is essential if your balancer only has a "0" or "TDC" mark, as the light allows you to electronically delay the strobe to simulate different degree settings.
Does the engine need to be at idle speed when checking timing?
Yes, for base timing, the engine must be at the manufacturer’s specified idle RPM. If the idle is too high, the centrifugal advance mechanism inside the distributor may start to engage, providing a false reading that will lead to improper tuning.
What happens if the timing is set too far advanced?
Excessive ignition advance causes the cylinder pressure to peak before the piston reaches TDC, creating a counter-productive force. This leads to audible detonation (knocking), potential engine overheating, and severe mechanical damage to rod bearings and piston lands.
Can I check timing on a coil-on-plug (COP) ignition system?
Checking timing on modern COP systems is difficult because there are no spark plug wires to attach the inductive clamp. You will need a specialized spark plug wire extension or an adapter that bridges the gap between the coil and the plug to provide a signal for the timing light.
