How To Use A Thread Chaser: The Complete Guide To Restoring Damaged Fasteners And Internal Threads

Restoring damaged threads requires a non-cutting approach to preserve the structural integrity of the base metal. Using a thread chaser involves identifying the correct pitch and diameter, applying appropriate lubrication, and manually threading the tool to reform displaced metal and remove debris without removing essential material. This process ensures that critical fasteners achieve their specified torque values and load-bearing capacity during reassembly.

Pre-Repair Inspection and Essential Tool Selection

Before attempting to restore a threaded hole or bolt, you must differentiate between a thread chaser and a tap or die. While taps and dies are designed to cut new threads by removing metal, a thread chaser is designed to clean and reshape existing threads. Using the wrong tool can lead to significant material loss, resulting in a loose fit that fails under high torque. A thread chaser is typically made from hardened steel but features shallower, less aggressive flutes compared to a tap, making it ideal for removing corrosion, dried thread-locking compounds, and minor galling.

Essential Gear and Preparation Checklist

• Thread Pitch Gauge: This is the most critical tool for identifying the exact number of threads per inch (TPI) for imperial fasteners or the distance between thread peaks (pitch) for metric fasteners.

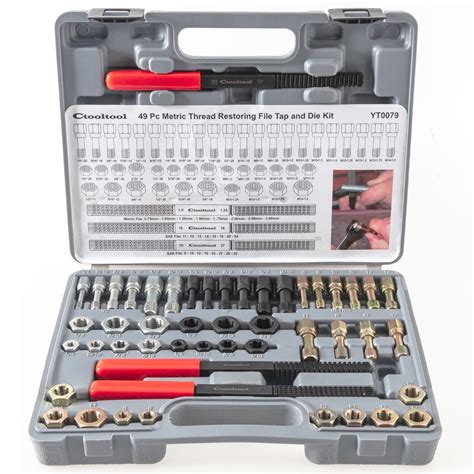

• Thread Chaser Set: Ensure you have both internal (for holes) and external (for bolts/studs) chasers in the required sizes (Metric and SAE/Imperial).
• Lubrication: High-quality cutting oil, tapping fluid, or even a light molybdenum grease is required to reduce friction and capture debris.
• Cleaning Tools: A stainless steel or brass wire brush, compressed air, and a degreasing solvent (like brake cleaner) are necessary to prep the surface.
• Inspection Lighting: A high-lumen LED shop light or a borescope for inspecting deep blind holes for cracks or structural failures.
• Time Benchmark: Allow 5 to 15 minutes per thread depending on the severity of the damage and the depth of the hole.

Executing Precision Thread Restoration: A Step-by-Step Workflow

Restoration is a delicate process where "feel" is just as important as the tool itself. If you force a chaser, you risk cross-threading the component, which may require a total drill-out and the installation of a thread insert like a Heli-Coil.

Step 1: Surface Decontamination and Initial Inspection

Begin by cleaning the damaged area thoroughly. If you are working on a bolt, use a wire brush to remove heavy rust and scale. For internal threads, spray a solvent into the hole and use compressed air to blow out any loose metal shavings or old Loctite. Inspect the first two or three threads of the hole or bolt; these are usually where the most significant damage occurs. If the first thread is completely flattened or rolled over, you may need to lightly file the leading edge with a needle file to provide a clean entry point for the chaser.

Step 2: Accurate Pitch Identification

Never guess the thread pitch. Use your thread pitch gauge to confirm the size. For example, a 10mm bolt may come in 1.0, 1.25, or 1.5 pitch. Forcing a 1.5 pitch chaser into a 1.25 pitch hole will permanently destroy the part. Place the gauge teeth into the threads of the fastener or the chaser itself to ensure a perfect "mesh" where no light is visible between the teeth and the thread valleys.

Step 3: Lubrication Application

Apply a generous amount of cutting oil to the thread chaser. Lubrication serves two purposes: it prevents the tool from galling (cold-welding) to the workpiece and it holds the removed debris within the flutes of the chaser, preventing it from falling deeper into a blind hole or an engine gallery.

Pro-Tip: In automotive applications where you are chasing head bolt threads in an engine block, avoid using heavy greases that might create a hydraulic lock at the bottom of the hole. Use a thin, high-pressure lubricant and ensure the hole is completely dry of liquid before final assembly.

Step 4: Engagement and Alignment

For internal threads, start the chaser by hand. Do not use a socket or an impact wrench to start the process. Spin the chaser into the hole using only your fingers until you feel it "catch" the existing thread path. If you feel immediate resistance, back it out, turn it counter-clockwise until you hear a faint "click" (indicating the tool has dropped into the start of the thread), and then try again.

Step 5: The Chasing Process (The Two-Step Motion)

Once the chaser is engaged, use a T-handle or a socket wrench to turn it slowly. Use the "half-turn forward, quarter-turn back" method. The forward turn performs the reforming of the metal, while the backward turn breaks up any debris and allows the lubricant to flow back into the cutting area.

Warning: If the resistance increases significantly, stop immediately. A thread chaser should not require extreme force. If it binds, back the tool out entirely, clean the flutes, re-lubricate, and re-insert. Continuing to force the tool can result in it snapping off inside the hole, which is a catastrophic failure.

Step 6: Final Cleaning and Verification

Once the chaser has reached the desired depth (or passed completely through the nut/hole), remove it and perform a final cleaning. Use compressed air to clear the hole and solvent to remove the oil. Test the restoration by taking a brand-new, high-grade fastener and threading it in by hand. It should spin freely to the bottom without the use of tools.

Thread Restoration Specifications and Tool Comparisons

Understanding the mechanical differences between various thread-handling tools is vital for maintaining the "Class of Fit" (the tolerance between the male and female threads). Thread chasers are designed to maintain a Class 2B fit, which is the standard for most commercial and industrial applications.

Common Thread Chasing Failures and Industrial Recovery Tactics

Even with the correct tools, metallurgical issues or excessive wear can lead to complications. Recognizing these early can save a workpiece from being scrapped.

• Scenario: The Chaser Cross-Threads the First Two Rows




  • Root Cause: Improper alignment or using a wrench too early in the process, causing the chaser to create a new, diagonal path across the original threads.
  • Actionable Fix: Stop immediately. Use a small triangular needle file to "clock" the thread back to its original entry point. If the damage is deeper than two threads, you must switch to a thread repair insert (Heli-Coil or Time-Sert) to restore structural integrity.

• Scenario: Galling in Aluminum Components




  • Root Cause: Aluminum is a "sticky" metal that tends to smear and weld itself to the steel chaser when dry, leading to torn threads.
  • Actionable Fix: Use a dedicated aluminum-specific tapping fluid or kerosene as a lubricant. Clean the chaser flutes every two full rotations to ensure no aluminum buildup is being dragged back through the hole.

• Scenario: Bottoming Out in a Blind Hole




  • Root Cause: Debris or liquid trapped at the bottom of a hole prevents the chaser from reaching full depth, or using a "taper" chaser when a "bottoming" chaser is required.
  • Actionable Fix: Use a vacuum or a thin wire with a magnet (if the debris is ferrous) to clear the bottom of the hole. If you need to clean threads to the very bottom of a hole, ensure you are using a bottoming-style chaser which has a flat tip.

• Scenario: The Chaser Removes Large Spirals of Metal




  • Root Cause: You are likely using a Tap instead of a Chaser, or the threads were so badly damaged that the chaser is "shaving" the remaining material rather than reforming it.
  • Actionable Fix: Check the tool markings. If it says "HSS Tap," stop. If it is a chaser and metal is still coming out in spirals, the thread is likely "stripped." In this case, the fastener will no longer hold torque and requires a thread replacement sleeve.

Frequently Asked Questions

Can I use a standard tap to clean threads if I don't have a chaser?

While possible, it is not recommended for critical applications like cylinder heads or suspension components. A tap is a cutting tool that will remove original metal from the thread walls, resulting in a looser fit and reduced clamping force once the bolt is torqued.

How do I know if a thread is too damaged to be chased?

If more than 25% of the thread height is missing or if the threads appear "flat" rather than "triangular," the structural integrity is compromised. In these instances, chasing will not restore the strength required for high-torque applications, and an insert should be used.

What lubricant is best for chasing threads in stainless steel?

Stainless steel is highly prone to galling. Use a high-sulfur cutting oil or a specialized "Moly" lubricant. Avoid using dry or light-duty oils like WD-40, as they do not provide enough film strength to prevent the stainless threads from seizing onto the tool.

Is it necessary to chase threads on new bolts?

Generally, no. However, in high-performance racing or aerospace applications, "blueprinting" threads by running a chaser over new studs or bolts ensures that any manufacturing burrs or coating inconsistencies (like thick zinc plating) are removed, ensuring perfectly accurate torque readings.

Professional Grade Maintenance Standards

Implementing thread chasing into your regular maintenance routine prevents catastrophic fastener failure and ensures that every assembly meets factory safety specifications. By prioritizing the preservation of base metal over aggressive cutting, you extend the service life of expensive engine blocks, casings, and specialized industrial hardware.
