Master The Arc: A Comprehensive Guide On How To Use A Stick Welder

Shielded Metal Arc Welding (SMAW), commonly referred to as stick welding, is a manual process that utilizes a consumable electrode coated in flux to create an electric arc between the rod and the base metal. Achieving a quality weld requires precise control over travel speed, arc length, and electrode angle to manage the molten puddle and slag inclusion effectively.

Essential Preparation and Equipment Setup

Stick welding is a versatile, high-deposition process that works well outdoors and in windy conditions where shielding gases would otherwise be displaced. Success depends entirely on the preparation of your equipment and the integrity of your ground connection. Before striking an arc, you must ensure the work environment is clear of flammable materials and that you are using the correct power supply settings for your electrode diameter.

• Essential Gear and Tools:

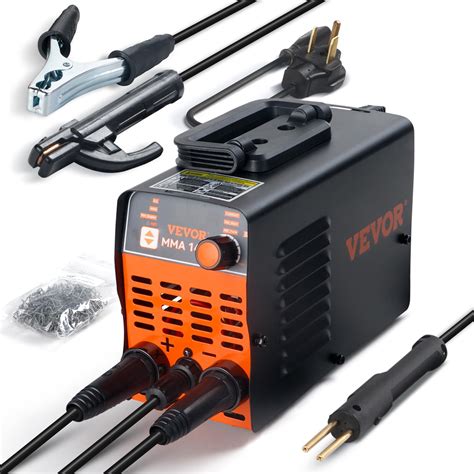

• SMAW power source (DC Inverter or AC Transformer welder).
• Electrode holder (stinger) and ground clamp.
• Personal Protective Equipment (PPE): Welding helmet with appropriate shade lens (typically 10-12), fire-resistant leather jacket, gauntlet-style welding gloves, and leather boots.
• Consumables: SMAW electrodes (e.g., E6010 for deep penetration, E7018 for high-strength structural joints).
• Prep tools: Angle grinder with flap discs, wire brush, and a chipping hammer.
• Material benchmarks: Metal thickness determines rod size (e.g., 1/8-inch rod for 1/8-inch to 1/4-inch steel) and amperage settings.
• Time requirement: Initial setup typically takes 15-20 minutes; mastery of bead control requires consistent practice sessions of 60-90 minutes.

Executing the Stick Welding Process

Step 1: Material Preparation and Grounding

Clean your base metal thoroughly to remove mill scale, rust, paint, or oil. A contaminated surface leads to porosity and brittle welds. Clamp the ground clamp directly onto the workpiece, ensuring a metal-to-metal contact point that is clean and free of debris. An poor ground connection creates electrical resistance, leading to inconsistent arc starts and overheating.

Step 2: Selecting and Inserting the Electrode

Select your electrode based on the tensile strength and penetration requirements of the project. Insert the bare end of the electrode into the stinger jaws, ensuring the angle allows for comfortable manipulation. Check your machine settings: if using E7018, set the welder to DCEP (Direct Current Electrode Positive). For E6010, DCEN or DCEP may be used depending on the specific rod formulation.

Step 3: Striking the Arc

Lower your helmet visor to protect your eyes from ultraviolet radiation. To strike the arc, use a motion similar to striking a match against the base metal. As soon as the arc ignites, pull the electrode back slightly to establish an arc length approximately equal to the diameter of the electrode core wire.

Warning: Never look at the arc with the naked eye, as the UV intensity can cause severe "arc eye" or flash burn to the retinas.

Step 4: Establishing and Moving the Puddle

Once the arc is stable, focus on the molten pool rather than the tip of the electrode. Maintain a consistent arc length. If the rod sticks to the metal, twist the holder firmly to snap it free. Move the electrode along the joint at a steady speed, maintaining a 10 to 20-degree drag angle. This angle pushes the slag behind the molten puddle, preventing it from getting trapped in the weld bead.

Step 5: Finishing the Weld

At the end of the weld bead, pause slightly to fill the crater before pulling the electrode away. This prevents "crater cracks," which are weak points in the weld. Once the metal cools and the slag solidifies, use your chipping hammer and wire brush to remove the slag coating. A high-quality weld should be consistent in width and height, with even ripple patterns.

Electrode Selection and Amperage Parameters

Troubleshooting Common Welding Defects

• Root Cause: Excessive Spatter


  • Fix: The amperage is likely set too high, or your arc length is too long. Lower the amperage in 5-amp increments and maintain a tighter arc gap.
• Root Cause: Slag Inclusion


  • Fix: This occurs when slag is trapped under the weld bead. Increase your travel speed, maintain the correct electrode drag angle, and ensure you are not moving too slowly.
• Root Cause: Porosity (Pinholes)


  • Fix: The base metal is likely contaminated, or the electrode is damp. Grind the metal to clean, shiny steel and ensure your electrodes are stored in a dry environment or a rod oven.
• Root Cause: Arc Instability/Sticking


  • Fix: The amperage is too low, or the ground connection is poor. Verify that the ground clamp is attached to clean metal and increase the amperage setting.

Frequently Asked Questions

What is the ideal electrode angle for a flat position weld?

For a flat position weld, keep the electrode at a 10 to 20-degree angle from vertical in the direction of travel. This "drag" technique helps push the slag away from the front of the molten pool, resulting in a cleaner bead.

How do I know if my amperage is set correctly?

A correct amperage setting produces a smooth, consistent sound often compared to bacon frying. If the sound is popping and aggressive, the amperage is too high; if the arc is difficult to strike and the electrode constantly sticks, it is too low.

Why does my weld have a crusty, black layer on top?

That layer is slag, which is a byproduct of the electrode's flux coating. It serves to protect the cooling metal from atmospheric oxygen and must be removed with a chipping hammer and wire brush after the weld is completed.

Can I use an AC welder for all types of electrodes?

Not all electrodes are rated for AC output. While E6011 is specifically designed for AC/DC compatibility, rods like E7018 require a DC power source to maintain a stable arc and achieve optimal mechanical properties.

Elevate Your Craft with Pro Welding Techniques

Mastering the art of stick welding requires the synthesis of patience, proper equipment calibration, and consistent physical technique. Secure your high-performance welding supplies today to ensure your next project meets professional structural standards.
