Comprehensive Guide On How To Use The OneTouch Ultra 2 Blood Glucose Monitoring System
The OneTouch Ultra 2 system utilizes electrochemical biosensor technology to provide accurate blood glucose readings from a small 1-microliter capillary blood sample in approximately five seconds. By following precise calibration protocols and maintaining clean testing conditions, users can consistently achieve clinical-grade results aligned with international ISO 15197 standards for blood glucose monitoring systems.
Essential Preparation and Equipment Checklist
Effective glycemic control relies on the integrity of the testing procedure. Before initiating a test, ensure that your workspace is sanitized and all necessary components are within reach to prevent contamination or sample degradation. The OneTouch Ultra 2 operates via a plasma-calibrated mechanism, meaning the results are mathematically adjusted to reflect plasma glucose values even though the sample is whole blood.
- Essential Hardware: OneTouch Ultra 2 meter, OneTouch Ultra test strips (check the expiration date on the vial), and a compatible lancing device with sterile lancets.
- Ancillary Supplies: 70 percent isopropyl alcohol swabs or mild soap and warm water, a puncture-resistant sharps container for biohazardous waste, and your personal diabetes logbook or digital monitoring application.
- Operational Benchmarks:
- Temperature Range: 43 degrees Fahrenheit to 111 degrees Fahrenheit.
- Relative Humidity: 10 percent to 90 percent (non-condensing).
- Sample Volume: 1.0 microliter (minimum).
- Test Duration: 5 seconds.
Clinical Workflow for Accurate Glucose Measurement
Successful blood glucose testing requires strict adherence to hygiene and proper sample application technique. Even minor deviations, such as insufficient sample volume or contaminated sites, can introduce significant variance in data accuracy.
Step 1: Hand Hygiene and Site Preparation
Wash your hands thoroughly with warm water and soap to remove any residue, such as sugar, fruit juice, or lotions, which can cause false high readings. Dry your hands completely, as residual water can dilute the blood sample and result in inaccurate, lower-than-actual readings. If using an alcohol swab, allow the site to air-dry entirely before lancing; alcohol may cause a stinging sensation and can potentially interfere with the test chemistry.
Step 2: Preparing the Lancing Device and Strip
Insert a new, sterile lancet into the lancing device and set the depth penetration based on your skin thickness. Remove one OneTouch Ultra test strip from the vial and immediately replace the cap to protect remaining strips from humidity. Insert the test strip into the meter’s test port with the metallic contact bars facing the meter. The meter will perform an automatic system check and display a flashing blood drop icon, indicating readiness.
Step 3: Obtaining the Capillary Sample
Choose a clean, fleshy area on the side of your fingertip to minimize pain. Press the lancing device firmly against the site and trigger the mechanism. Gently squeeze the base of your finger to produce a rounded droplet of blood. Do not press too hard or milk the finger, as this can introduce interstitial fluid into the sample, which compromises accuracy.
Step 4: Applying the Blood to the Test Strip
Bring the edge of the test strip toward the blood droplet. The strip is designed to draw the blood into the narrow channel via capillary action. Hold the edge of the strip against the blood drop until the confirmation window is completely filled.
Pro-Tip: If the meter does not start counting down immediately, the sample volume was likely insufficient. You have approximately 5 seconds to add a second drop of blood to the same strip before an error code is triggered.
Step 5: Interpretation and Documentation
After the 5-second countdown, the meter will display your blood glucose result in mg/dL. Record this value in your logbook alongside the time of day and any relevant metadata, such as post-meal status or physical activity. Remove and discard the used strip into a biohazard container immediately to prevent cross-contamination.

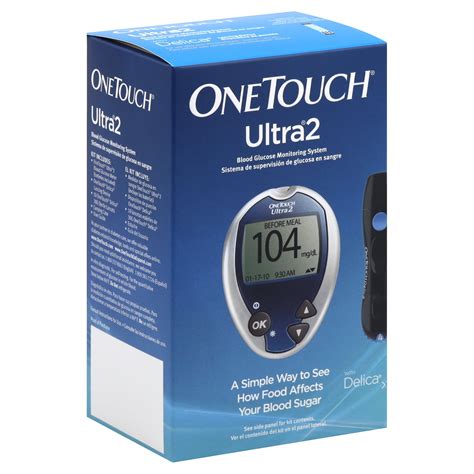

One Touch Ultra 2 Blood Glucose Monitoring System 1 ct | shipt
Technical Specifications and Measurement Matrix
Understanding the operational threshold of your device ensures you remain within the manufacturer’s design specifications. The OneTouch Ultra 2 is calibrated to equate blood glucose levels in whole blood to plasma levels, which is the standard used by clinical laboratories.
| Feature | Technical Specification |
|---|---|
| Detection Method | Glucose Oxidase Biosensor |
| Calibration Standard | Plasma-equivalent |
| Measuring Range | 20 to 600 mg/dL |
| Power Source | Two 3.0V CR2032 Lithium batteries |
| Data Memory | 500 test results with time/date |
| Sample Requirement | Whole capillary blood |
Troubleshooting Common Operational Failures
Errors during the testing process are typically related to strip storage, sample quality, or device maintenance. Below are the most frequent issues and their corresponding field-remediation strategies.
- Error 2 (Insufficient Sample): Occurs when the test strip did not receive enough blood to fill the confirmation window.
- Fix: Ensure the test strip edge is fully touching the blood droplet. If the error persists, discard the strip and use a fresh one with a slightly larger sample.
- Error 4 (Used or Damaged Strip): Often caused by reusing a strip or inserting one that has been exposed to high humidity.
- Fix: Always use a new, dry test strip. If a vial has been left open for more than six months or beyond its expiry date, discard the entire vial to avoid degraded reagents.
- Meter Not Turning On: Usually points to battery exhaustion or poor contact within the battery terminal.
- Fix: Remove the batteries and ensure the contact points are free of corrosion. Replace with two new 3.0V CR2032 lithium batteries. If the display remains blank, contact manufacturer support for a hardware diagnostic.
Frequently Asked Questions
Why do my results differ from my doctor's laboratory test?
Laboratory machines are more complex and analyze serum or plasma, while your meter analyzes whole blood. Slight variations are expected, but your result should typically fall within 15 to 20 percent of a laboratory result depending on the regulatory standard being applied.
Can I test blood from sites other than my fingertip?
The OneTouch Ultra 2 is specifically cleared for fingertip testing. Alternative site testing, such as the forearm or palm, may yield different results because blood glucose levels change more slowly in these areas, especially after meals or exercise.
How do I clean my OneTouch Ultra 2 meter?
Use a soft cloth dampened with water and a mild detergent to wipe the outer surface of the meter. Never submerge the meter in water or cleaning solutions, and ensure that no liquid enters the test strip port or battery compartment.
How often should I perform a control solution test?
You should run a control solution test when you open a new vial of strips, if you suspect the meter or strips are not working correctly, or if you consistently receive unexpected results. Always refer to your user manual for the specific range printed on the test strip vial.
Maintain Optimal Glycemic Awareness
Regular, accurate monitoring is the cornerstone of effective metabolic management and long-term health outcomes. Consult with your healthcare provider to establish your specific target range and ensure your device settings are correctly configured for your personalized care plan.
