How To Use The NOCO Boost Plus GB40: Complete Step-by-Step Jump-Starting Guide

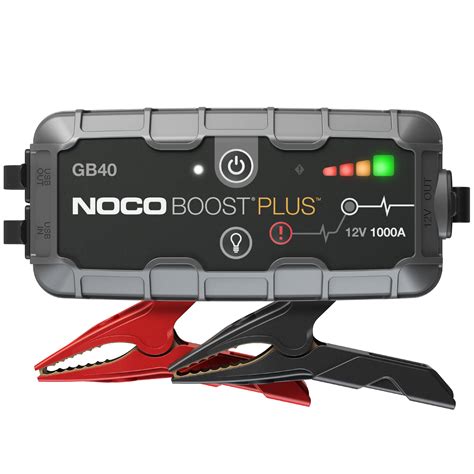

The NOCO Boost Plus GB40 is a 1000-amp portable lithium-ion jump starter designed to safely crank 12-volt dead batteries in gas engines up to 6.0 liters and diesel engines up to 3.0 liters. Operating this device requires a precise sequence of verifying charge levels, making secure terminal connections, engaging manual override when necessary, and adhering to strict polarity safety rules to protect modern vehicle electronics.

Pre-Operation Safety and Equipment Preparation

Before connecting any portable power pack to a stranded vehicle, verifying the operational readiness of both the jump starter and the host vehicle electrical system prevents catastrophic short circuits, blown fuses, and permanent battery damage. The GB40 utilizes advanced spark-proof technology and reverse polarity protection, but proper environmental and physical preparation remains essential for a safe roadside recovery.

• Essential Gear and Tools: NOCO Boost Plus GB40 unit, heavy-duty precision battery clamps, 12V USB charging cable (for recharging the unit), high-intensity LED flashlight (built into the unit), and a clean wire brush or terminal cleaner.
• Mandatory Prerequisite Knowledge: Verify that the vehicle's electrical system is strictly 12 volts. Confirm that accessories (headlights, radio, air conditioning, interior dome lights) are switched completely off to prevent current draw during the jump sequence. Inspect the target battery casing for visible cracks, leaking acid, or severe corrosion.
• Time and Environment Benchmarks: The physical jump-starting process takes approximately 3 to 5 minutes once connections are secured. Ensure you operate in a well-ventilated area away from open flames, sparks, and combustible materials due to explosive hydrogen gas generated by lead-acid batteries.

Step-by-Step Instructions on How to Use the NOCO Boost Plus GB40

Step 1: Check the Battery Pack Charge Level

Press the power button on the GB40 to check the internal lithium-ion battery capacity. The internal LED status indicators will illuminate sequentially to display the current state of charge.

Warning: Do not attempt to jump-start a vehicle if the GB40 displays less than 50 percent charge (fewer than two solid white LEDs). A depleted internal pack may fail to deliver the necessary peak amperage and can cause the lithium cells to overheat or suffer irreversible degradation. Recharge the unit via any powered USB port before proceeding.

Step 2: Connect the HD Precision Clamps

Plug the 12V output plug of the HD battery clamps securely into the 12V OUT port located on the bottom of the NOCO GB40 unit. Ensure the plug is firmly seated and pushed all the way into the socket to maintain low electrical resistance during high-current output.

Step 3: Attach Clamps to Vehicle Battery Terminals

Connect the positive (red) clamp from the GB40 to the positive battery terminal marked with POS, P, or a plus sign. Next, connect the negative (black) clamp to the negative battery terminal marked with NEG, N, or a minus sign, or to a stable unpainted vehicle chassis ground point away from fuel lines and moving parts.

Pro-Tip: Connecting the negative clamp to a solid engine block ground or chassis frame point rather than the direct negative battery terminal reduces spark risk and provides a cleaner ground path for high cranking amperage.

Step 4: Monitor the LED Status Indicators

Observe the LED indicators on the GB40 control panel once the clamps are correctly attached. A solid white light on the 12V Boost LED indicates that the unit has successfully detected the vehicle battery and is ready to deliver power.

Step 5: Crank the Vehicle Ignition

Turn the vehicle ignition key or press the start button to crank the engine. If the engine does not start immediately, wait at least 30 seconds before attempting a second crank to allow the GB40 internal circuitry to dissipate heat and recover.

Step 6: Disconnect and Power Down

Once the vehicle engine successfully starts, disconnect the HD battery clamps in the exact reverse order of connection. First, remove the negative (black) clamp from the chassis or negative terminal, then remove the positive (red) clamp from the positive battery terminal, and finally unplug the clamp assembly from the GB40 unit.

Technical Specifications and Capability Matrix

Understanding the operational limits of the NOCO Boost Plus GB40 ensures proper tool selection for specific automotive, marine, and power-sport applications.

Troubleshooting Common Jump-Starting Failures

Even with advanced smart-boost technology, operators occasionally encounter error states or stubborn no-start conditions that require manual intervention.

• Error State: Rapidly Flashing LED or No Boost Light Activation


  • Root Cause: The target battery voltage is extremely low (under 2 volts), preventing the GB40 smart sensors from automatically detecting the circuit, or the clamps are connected in reverse polarity.
  • Actionable Fix: Verify clamp polarity (red to positive, black to negative). If connections are correct and the 12V Boost LED remains unlit, press and hold the manual override button (a circular exclamation point icon) for 3 seconds to force power delivery.
• Error State: Unit Shuts Off Automatically During Cranking


  • Root Cause: Excessive starter draw or a short-circuited vehicle battery is pulling amperage beyond the GB40 safety thresholds, triggering thermal or over-current protection.
  • Actionable Fix: Allow the GB40 to cool for 5 minutes. Inspect the vehicle starter motor and battery cables for corrosion or shorts before attempting a secondary manual override crank.
• Error State: Vehicle Cranks Slowly But Fails to Catch


  • Root Cause: Insufficient internal charge on the jump starter pack or poor terminal contact causing high electrical resistance drop.
  • Actionable Fix: Clean lead-acid battery terminals thoroughly with a wire brush to bare metal, ensure the GB40 is charged to 100 percent, and re-clamp securely.

Frequently Asked Questions

Can the NOCO Boost Plus GB40 damage my car computer or electronics?

No. The GB40 incorporates ultra-safe spark-proof technology and reverse polarity protection. It features a micro-processor-controlled management system that regulates voltage output and isolates the vehicle's sensitive electronic control units (ECUs) from dangerous power surges.

How do I use the manual override feature on the GB40?

If a deeply discharged battery drops below the threshold for automatic detection, press and hold the manual override button featuring the exclamation point symbol for 3 seconds until the Boost LED illuminates. Once this manual mode is active, you have approximately 30 seconds to crank the engine before the safety timeout engages.

Can I leave the GB40 connected to the car battery after the engine starts?

You must disconnect the GB40 immediately after the vehicle starts. Leaving the portable pack connected to a running alternator for extended periods can cause back-feeding of current, potentially damaging the lithium-ion internal cells of the jump starter.

How often should I recharge the NOCO GB40 when not in use?

Because lithium-ion batteries experience natural self-discharge over time, you should check the charge level and recharge the GB40 every 3 to 6 months, or immediately after every use. Maintaining a full charge ensures the unit is ready for roadside emergencies when needed.

Can the GB40 be used to charge smartphones and tablets?

Yes. The GB40 functions as a portable power bank equipped with a standard 5V USB output port. You can use the included USB cable or your own device charging cables to power mobile phones, tablets, and other USB-compatible electronics on the go.

Equip yourself with reliable roadside emergency gear and master proper portable power operation to keep your vehicle journeys safe and uninterrupted.
