Master The Hole Saw: A Technical Guide To Precision Boring And Industrial Safety
To successfully use a hole saw drill bit, you must secure the correct arbor for the saw diameter, align the pilot bit with a pre-marked center point, and maintain a perpendicular drill angle while applying constant but moderate pressure. Achieving a professional finish requires managing heat through material-specific RPM settings—typically ranging from 1,500 RPM for small holes in softwood to as low as 100 RPM for large-diameter cuts in stainless steel—while periodically backing out the saw to clear debris and prevent binding.
Technical Configuration and Job Site Readiness
Before engaging the motor, you must understand that a hole saw is not a standard drill bit; it is a thin-walled cylindrical saw designed to remove a ring of material (the kerf) rather than pulverizing the entire hole volume. This makes it highly efficient for large diameters but introduces significant torque and heat management challenges. Preparation starts with matching the saw type to the substrate density and ensuring the drive motor possesses sufficient amperage or voltage to maintain steady rotation under load.
Essential Equipment and Prerequisite Standards

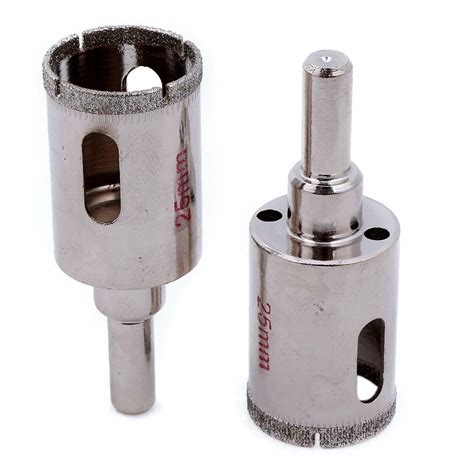

- Hole Saw Selection: Choose Bi-metal saws for wood and mild steel, Carbide-tipped saws for abrasive materials like fiber cement or cast iron, and Diamond-grit saws for porcelain tile or masonry.
- Arbor (Mandrel) Assembly: For saws 14mm to 30mm, use a small 1/2-inch-20 UNF threaded arbor. For saws larger than 32mm, utilize a heavy-duty 5/8-inch-18 UNF arbor equipped with locking pins to prevent the saw from overtightening during high-torque operation.
- The Power Source: A corded drill or a high-voltage (18V/20V Max) brushless cordless drill is mandatory. Ideally, the drill should feature a secondary side-handle to counteract the significant kickback force generated if the saw binds.
- Lubrication and Cooling: Keep a pressurized air canister or vacuum for wood dust, and sulfurized cutting oil or a specialized wax stick for metal applications to reduce friction-induced tempering.
- Personal Protective Equipment (PPE): High-impact safety goggles are non-negotiable due to the high-velocity ejection of metal shavings or wood chips. Use hearing protection for prolonged use and work gloves with tactile grip.
- Time and Precision Benchmarks: Allow 2-5 minutes per hole in structural timber and up to 10 minutes for large-diameter stainless steel penetrations, accounting for cooling intervals.
The Professional Boring Workflow: A Step-by-Step Execution
Executing a clean cut with a hole saw requires a combination of mechanical alignment and sensory feedback. The following steps outline the transition from initial layout to final plug ejection.
Step 1: Assembly and Arbor Lock-In
Begin by sliding the hole saw onto the arbor. If you are using a large-diameter saw (typically above 1-1/4 inches), retract the locking collar on the arbor, screw the saw onto the threads until it bottoms out, and then back it off slightly until the locking pins align with the holes in the saw's base plate. Slide the collar forward to engage the pins. This mechanical lock prevents the saw from becoming permanently seized onto the arbor threads during the drilling process. Ensure the pilot bit extends at least 1/4 inch beyond the deepest point of the saw teeth to provide an anchor before the teeth make contact.
Step 2: Marking the Center Point and Initial Pilot Entry
Accuracy in hole saw placement is determined entirely by the pilot hole. Use a center punch to create a physical indentation on your workpiece; this prevents the pilot bit from "walking" or skating across the surface. Place the tip of the pilot bit into the indentation. Hold the drill perfectly perpendicular to the workpiece. Engage the trigger at a medium speed to drill the pilot hole completely through the material. This hole acts as a stabilizer, keeping the large-radius saw teeth concentric to your target center.
Warning: Never attempt to start the saw teeth and the pilot bit simultaneously on a hard surface. If the pilot bit is not seated first, the saw will likely kick violently across the workpiece, causing surface damage and potential wrist injury.
Step 3: Establishing the Kerf and Scoring the Surface
Once the pilot bit has penetrated the material, slowly lower the drill until the teeth of the hole saw are just hovering above the surface. Pull the trigger to reach the desired RPM (refer to the speed chart for your specific material) and gently touch the teeth to the workpiece. The goal is to "score" a perfect circle. Once the teeth have created a groove (the kerf) approximately 1/16 of an inch deep, you can increase downward pressure.
Step 4: Managing Feed Pressure and Chip Evacuation
As the saw progresses into the material, resistance will increase. Apply firm, steady pressure, but do not lean your entire body weight into the drill. If the RPMs drop significantly, you are applying too much pressure. Every 1/4 inch of depth, lift the saw slightly out of the cut while it is still spinning. This action allows the gullets (the spaces between the teeth) to eject sawdust or metal chips. In deep wood cuts, this prevents the friction-generated heat from scorching the wood or "bluing" the steel of the saw teeth, which ruins their temper and sharpness.
Pro-Tip: If drilling through thick timber, use a "rocking" motion. Slightly tilt the drill from side to side as you rotate. This creates a slightly wider kerf than the actual saw width, which significantly reduces friction and prevents the saw from binding or getting stuck.
Step 5: Completing the Cut and Plug Ejection
When you feel the resistance give way as the pilot bit exits the back of the material, prepare for the final breakthrough. Reduce your downward pressure to prevent the saw from "punching" through and splintering the exit side. For the cleanest possible results in wood, stop drilling once the pilot bit exits the back, move to the opposite side of the workpiece, insert the pilot bit into the existing hole, and finish the cut from the rear. Once the cut is complete, the "plug" of material will likely be wedged inside the saw. Use a screwdriver inserted through the side slots (ejected ports) of the saw body to pry the plug out.
1Pc 16mm 53mm Drill Bit Hole Saw Twist Drill Bits Cutter Power Tool ...
Technical Specifications and Operational Parameters
The most common cause of hole saw failure is operating at an incorrect speed. The following table provides the standard industrial RPM recommendations for various materials using a standard 2-inch (51mm) Bi-metal hole saw. Larger saws require slower speeds, while smaller saws can handle higher speeds.
| Workpiece Material | Recommended RPM (2" Saw) | Recommended Lubricant | Tooth Geometry Preference |
|---|---|---|---|
| Softwood (Pine/Cedar) | 1,200 - 1,500 | None / Dry | Variable Pitch (4/6 TPI) |
| Hardwood (Oak/Maple) | 700 - 900 | None / Dry | Variable Pitch (4/6 TPI) |
| Mild Steel | 150 - 200 | Cutting Oil | Constant Pitch (10+ TPI) |
| Aluminum | 400 - 600 | Kerosene or WD-40 | Large Gullet / Deep TPI |
| Stainless Steel | 75 - 100 | High-Sulphur Oil | Cobalt or Carbide Tipped |
| Plastic / PVC | 600 - 800 | Water (if heat is high) | Wide Gullet |
| Ceramic Tile | 100 - 300 | Constant Water Flow | Diamond Grit (No Teeth) |
Diagnostic Solutions for Common Hole Saw Failures
Even with high-quality equipment, the physics of hole-sawing can lead to several common field issues. Understanding the root cause allows for immediate correction.
Problem: Excessive Smoke and Wood Charring
- Root Cause: The RPM is too high, or the gullets are packed with dust, causing friction to override the cutting action.
- Actionable Fix: Reduce drill speed and use the "peck drilling" technique—frequently extracting the saw to clear debris. If the wood is particularly resinous, apply a small amount of beeswax to the side of the saw body.
Problem: Drill Kickback and Binding
- Root Cause: The drill is not being held perpendicular to the surface, causing one side of the saw to "grab" more material than the other.
- Actionable Fix: Use a side handle on your drill for better leverage. If the saw binds, immediately release the trigger, remove the saw from the cut, and verify that the workpiece is securely clamped. Ensure you are not "forcing" the cut.
Problem: Pilot Bit Wandering or Oversized Hole
- Root Cause: The pilot bit is dull, or the arbor is bent/loose, causing the entire assembly to oscillate (wobble).
- Actionable Fix: Inspect the arbor for "runout." Replace the pilot bit with a high-speed steel (HSS) split-point bit that bites into the material without skating. Ensure the arbor locking pins are fully engaged.
Problem: Teeth Stripping on Metal
- Root Cause: Cutting at too high a speed without lubrication, or attempting to cut hardened steel with a standard bi-metal saw.
- Actionable Fix: Shift the drill to its lowest gear (Speed 1). Apply constant cutting oil to the teeth. Ensure the material being cut is not harder than the saw teeth (e.g., do not use bi-metal saws on hardened tool steel or stainless steel alloys without carbide tips).
Frequently Asked Questions
Why does my hole saw keep getting stuck in the wood?
This is usually caused by the buildup of sawdust in the kerf, which creates friction against the inner and outer walls of the saw. To prevent this, use a slight rocking motion while drilling to widen the cut slightly, and pull the saw out every few seconds to clear the chips.
Can I use a hole saw with a hand drill, or do I need a drill press?
While a drill press offers the most precision and safety, a high-torque hand drill is the industry standard for most applications. If using a hand drill, always use the auxiliary side handle to prevent wrist injuries from sudden kickback if the saw snags on a knot or metal burr.
How do I remove a stuck wood plug from the hole saw?
Most professional hole saws have "speed slots" or "plug jacks" on the side. Insert a flat-head screwdriver into these slots and lever the plug out. If it is still stuck, you can thread a long screw into the plug and pull it out with pliers, or briefly run the saw in reverse against a scrap piece of wood to loosen the grip.
What is the difference between a bi-metal and a carbide hole saw?
Bi-metal saws are made of high-speed steel teeth bonded to a flexible carbon steel backing, making them ideal for wood and general-purpose metal. Carbide-tipped saws are much harder and more heat-resistant, designed specifically for abrasive materials like cast iron, stainless steel, and cement board where bi-metal teeth would dull almost instantly.
Precision Tools for Professional Results
Maintaining your equipment is the final step in the mastering process; always clean your saws after use and check the pilot bit for sharpness. For high-volume projects requiring absolute accuracy, consider investing in a dedicated hole saw kit with quick-change arbors to minimize downtime and maximize your efficiency on the job site.
