How To Use Heat Transfer Vinyl: A Professional Guide To Professional Apparel Decoration

Heat transfer vinyl (HTV) is a specialized polyurethane or PVC film that utilizes a heat-activated adhesive to bond permanently with textiles through the application of precise pressure and temperature. Achieving a professional-grade finish requires strict adherence to manufacturer-specific dwell times and thermal settings, typically ranging between 305 degrees Fahrenheit and 320 degrees Fahrenheit for 10 to 15 seconds.

Essential Prerequisites and Material Requirements

Successful heat transfer operations rely on selecting the correct substrate-to-vinyl compatibility. Before beginning, ensure your workspace is equipped with a stable, heat-resistant surface or a professional-grade heat press. Attempting to use a household iron often results in inconsistent pressure, leading to premature peeling and poor wash durability.

• Essential Hardware: A computer-controlled cutting machine (plotter), a dedicated heat press, a weeding tool (pick or dental-style hook), and a Teflon sheet or parchment paper cover.
• Core Consumables: Heat transfer vinyl (ensure the finish matches your project, such as standard matte, glitter, or stretchable), and the garment or substrate (100% cotton, 100% polyester, or poly-cotton blends are ideal).
• Technical Standards: Always confirm the carrier sheet type. Most HTV comes on a sticky, clear PET carrier sheet, which allows for easier positioning, though some specialty brands utilize non-sticky heat-resistant paper carriers.
• Budget and Duration: Entry-level setups range from 200 to 500 dollars, while full production environments can exceed 2,000 dollars. A single design transfer typically takes 15 to 20 minutes from vector file setup to final press.

Comprehensive Application Workflow

Step 1: Design and Vector Preparation

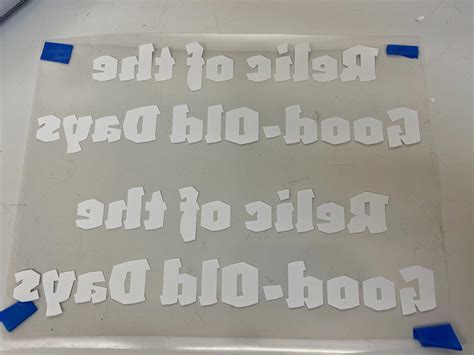

Every HTV project begins in design software. You must use vector graphics to ensure your cutting machine follows clean, precise paths. Import or create your artwork and convert all text to outlines or paths. If your design contains text or directional imagery, you must mirror the image horizontally before sending it to the cutting machine. Failure to mirror the design results in an unreadable transfer once applied to the garment.

Step 2: Calibrating the Cutting Machine

Load your HTV into the cutter with the shiny, carrier-sheet side facing down. Adjust your blade depth based on the specific thickness of the vinyl; standard matte HTV usually requires a shallower blade setting than glitter or flock variants. Execute a test cut to ensure the machine pierces the vinyl layer without cutting through the carrier sheet.

Pro-Tip: If the carrier sheet is cut through, your blade depth is too deep. Adjust the dial on your blade housing down by one increment and perform a second test cut.

Step 3: Weeding Excess Material

Once the cutting cycle finishes, remove the material from the machine. Use a weeding tool to strip away the negative space (the vinyl not part of the design). Work slowly and methodically, starting from a corner. Ensure you do not accidentally lift pieces of the intended design as you peel away the background.

Step 4: Substrate Preparation and Pre-Pressing

Prepare your garment by running it through the heat press for 3 to 5 seconds without any vinyl. This step removes moisture trapped in the fabric fibers and eliminates wrinkles, creating a perfectly flat, dry surface for the adhesive to bond with.

Step 5: Thermal Application

Position your weeded design face-down (vinyl side against the fabric). Place a Teflon sheet over the design to protect both the vinyl and your heat press platen from residue. Apply medium to firm pressure according to the manufacturer’s instructions.

Warning: Verify your heat press temperature using an infrared thermometer occasionally. Built-in digital displays can sometimes drift or become inaccurate after prolonged use, leading to under-curing.

Step 6: Post-Press Finishing

Most HTV requires a specific peel temperature—either "hot peel" or "cold peel." If the manufacturer specifies a hot peel, remove the carrier sheet immediately after the press opens. For cold peel, wait for the vinyl to reach room temperature before slowly pulling the carrier sheet at a 45-degree angle.

Material Compatibility and Thermal Benchmarks

Troubleshooting Common Application Failures

• Root Cause: The vinyl peels off after the first wash.


  • Actionable Fix: The adhesive likely did not reach the proper activation temperature. Increase your press temperature by 5-10 degrees or increase the dwell time by 3-5 seconds. Ensure you are applying firm, consistent downward pressure.
• Root Cause: The vinyl bubbled or puckered after pressing.


  • Actionable Fix: You have overheated the polyurethane, causing it to shrink or melt. Reduce the heat setting by 10-15 degrees or shorten the dwell time significantly.
• Root Cause: The design is lifting during the weeding process.


  • Actionable Fix: Your blade is dull or the cutting force is too low. Replace the blade cartridge and run a test cut on a scrap piece of vinyl to ensure a clean score through the vinyl layer only.

Frequently Asked Questions

Can I use a household iron instead of a professional heat press?

While technically possible for hobbyist projects, a household iron cannot provide the consistent pressure or even heat distribution required for professional durability. If you must use an iron, turn off the steam, use a hard surface, and apply intense, steady downward pressure for at least 30-45 seconds per section.

Does the type of garment material affect the vinyl choice?

Yes, specific vinyls are engineered for different substrates. For example, standard HTV may not bond correctly to moisture-wicking synthetic nylon jackets. Always check the manufacturer's technical data sheet to ensure the vinyl is rated for the specific fabric content of your garment.

How long should I wait before washing an HTV-decorated garment?

Standard industry practice dictates a minimum 24-hour cure time before the first wash. This allows the heat-activated adhesive to fully cross-link with the fabric fibers, significantly increasing the longevity of the design against laundry cycles.

Can I layer different colors of heat transfer vinyl?

Yes, but you must use compatible materials. Only layer "base" or standard HTV layers, and avoid layering glitter or flocked vinyls as the top layer, as the adhesive will not bond to those textured surfaces. Always ensure the bottom layer is only tacked for a few seconds before adding the next layer to prevent over-curing the adhesive.
