Mastering The Effects Loop: A Comprehensive Guide To Signal Chain Optimization

An effects loop provides a dedicated signal path that inserts processing equipment between an amplifier's preamp and power amp stages, ensuring time-based and modulation effects remain clear and defined. By utilizing the Send and Return jacks to bypass the preamp's gain stage, musicians can prevent high-gain distortion from muddying delays and reverbs, maintaining a professional-grade signal-to-noise ratio and tonal integrity.

Pre-Operation Requirements and Signal Chain Planning

Before integrating an effects loop into your rig, it is essential to understand the architectural divide within your amplifier. A standard guitar amplifier consists of two primary sections: the preamp, which handles the initial gain, equalization, and tonal shaping, and the power amp, which provides the wattage necessary to drive the speakers. Placing effects "in front" of the amp (between the instrument and the input) means those effects are processed by the preamp. Conversely, the effects loop allows you to place pedals "after" the preamp’s distortion, which is critical for maintaining the clarity of specific effect types.

Essential Gear and Prerequisite Checklist

• Amplifier with Dedicated Ports: Your amplifier must feature jacks labeled "Effects Loop," "Send/Return," or "Preamp Out/Power Amp In."
• High-Quality Patch Cables: At least two additional shielded TS (Tip-Sleeve) cables are required to complete the loop. Using low-capacitance cables is recommended to prevent high-end signal loss over long runs.
• Isolated Power Supply: Because the effects loop often introduces a second ground path, using an isolated power supply for pedals in the loop is mandatory to prevent ground loop hum.
• Pedal Classification Knowledge: You must distinguish between "Front-of-Amp" effects (Wah, Compression, Overdrive, Fuzz) and "Loop" effects (Delay, Reverb, Chorus, Flanger).
• Signal Level Awareness: Be aware of whether your loop operates at Instrument Level (-10dBV) or Line Level (+4dBu). Most modern pedals expect instrument level, while rack gear often requires line level.

Executing the Effects Loop Connection Workflow

The process of setting up an effects loop requires a systematic approach to cabling to ensure the signal flow remains unidirectional and hum-free. Following a specific order prevents phase issues and protects your speakers from unexpected transients.

Step 1: Identifying the Loop Architecture

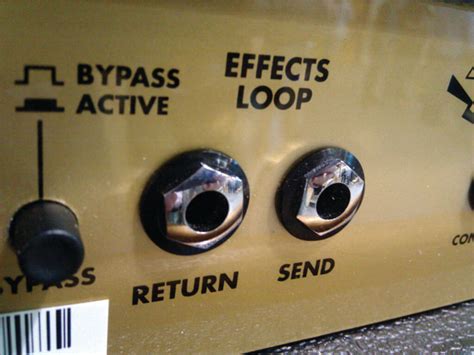

Examine the rear panel of your amplifier to determine if you have a Serial or Parallel loop. A Serial loop breaks the connection between the preamp and power amp entirely, sending 100% of the signal through your pedals. A Parallel loop splits the signal, allowing you to blend the "wet" effected signal with the "dry" preamp signal via a Mix or Level knob. If your amp has a Level switch (+4/-10dB), set it to -10dB for standard floor pedals and +4dBu for professional rack-mounted processors.

Pro-Tip: If you are using a Parallel loop, set the "Mix" or "Dry/Wet" control on your digital delay or reverb pedal to 100% wet. This prevents phase cancellation issues between the dry signal inside the amp and the slightly delayed dry signal passing through the pedal’s digital converters.

Step 2: Establishing the "Send" Connection

Run a high-quality shielded cable from the "Send" (or "Preamp Out") jack on the back of your amplifier to the "Input" of the first pedal you wish to place in the loop. This "Send" jack carries the signal after it has been shaped by your amp's gain and EQ sections. By moving time-based effects here, you ensure that the repeats of a delay pedal are repeating the distorted sound, rather than the distortion pedal trying to distort a series of existing echoes, which typically results in a sonic "mush."

Step 3: Organizing the Internal Loop Chain

Arrange your pedals within the loop for optimal fidelity. The industry standard sequence for an effects loop is:

1. Modulation: Chorus, Flanger, Phaser (though some prefer Phaser in front of the amp for a vintage "chewy" sound).
2. Time-Based Effects: Digital or Analog Delay.
3. Ambience: Reverb.
4. Boost/Volume: A volume pedal or clean boost placed here acts as a master volume control, allowing you to increase the overall loudness of your solo without adding more preamp distortion.

Step 4: Completing the "Return" Path

Connect a cable from the "Output" of the last pedal in your chain back to the "Return" (or "Power Amp In") jack on the amplifier. This completes the circuit, feeding the processed signal directly into the power amplifier stage.

Warning: Never plug the "Send" of an effects loop into the "Input" of another amplifier's speaker output. This will cause catastrophic damage to both pieces of equipment. The effects loop operates at preamp signal levels, not speaker levels.

Step 5: Calibrating Levels and Testing

Turn your amplifier’s master volume down before switching it on. Gradually increase the volume while engaging each pedal one by one. Check for a significant "volume drop" or "volume jump" when the loop is engaged. If your amp has a "Loop Level" or "Send Level" control, adjust it until the volume with the pedals active matches the volume of the amp when the pedals are bypassed. This ensures unity gain across your entire rig.

Technical Specifications and Signal Path Comparison

Understanding the technical variations in loop design is vital for matching your pedals to your amplifier’s circuitry. The following table highlights the key differences between the two primary loop types found in modern guitar amplifiers.

Troubleshooting Common Effects Loop Failures

When integrating complex routing, technical issues such as ground loops, impedance mismatches, and phase cancellation are common. Resolving these requires a methodical isolation of the signal chain.

• Excessive Hum or Buzzing when the Loop is Engaged




  • Root Cause: A ground loop is created because the pedals are grounded through the power supply and again through the Send/Return cables.
  • Actionable Fix: Use an isolated power supply for the pedals in the loop. If the hum persists, use a 1:1 isolation transformer (like a Hum Eliminator) on the Return line to break the ground loop without affecting the audio signal.

• Thin, "Hollow," or "Phased" Sound in Parallel Loops




  • Root Cause: Phase cancellation occurring because the digital processing latency in the pedal causes the "Wet" signal to be slightly out of alignment with the "Dry" signal.
  • Actionable Fix: Engage the "Kill-Dry" function on your digital pedals or turn the pedal's Mix/Level knob to 100%. This ensures that only the effect (the echoes or reverb trails) is returned to the amp, while the amp handles the dry signal internally.

• Significant Loss of High-End Clarity (Tone Suck)




  • Root Cause: High capacitance in long cable runs or a non-buffered effects loop in a vintage-style amplifier.
  • Actionable Fix: Place a dedicated buffer pedal at the very beginning of the effects loop (immediately after the Send jack) or ensure the first pedal in your loop features a high-quality "Buffered Bypass."

• The Effects Loop is Clipping or Distorting Heavily




  • Root Cause: The preamp signal (Send) is hitting the pedal's input stage with too much voltage, exceeding the pedal's headroom.
  • Actionable Fix: If your amp has a "Send Level" or "+4/-10dB" switch, set it to the lower output (-10dB). Alternatively, reduce the "Channel Volume" or "Gain" on your preamp and compensate with the "Master Volume."

Frequently Asked Questions

Can I put my Overdrive and Distortion pedals in the effects loop?

While technically possible, it is generally discouraged because the effects loop is situated after the preamp. Putting a distortion pedal in the loop means you are distorting a signal that has already been distorted by your amp, which usually results in a harsh, thin, and unpleasantly compressed tone. These pedals are designed to drive the front end of an amplifier.

Why does my amplifier not have an effects loop?

Many vintage-style or lower-wattage amplifiers omit the effects loop to maintain a simpler signal path and lower production costs. In these amplifiers, all effects must be run into the front input. To get the best results without a loop, you should run your amp "clean" and use pedals for all your overdrive needs, ensuring the delay and reverb come after the distortion pedals.

What is the 4-Cable Method (4CM)?

The 4-Cable Method is a routing technique used with multi-effects processors to place some effects (like Wah and Overdrive) before the preamp and others (like Delay and Reverb) in the effects loop. This requires four cables: 1) Guitar to Processor Input, 2) Processor Loop Send to Amp Input, 3) Amp Loop Send to Processor Loop Return, and 4) Processor Output to Amp Loop Return.

Does the length of cables in the effects loop matter?

Yes, cable length significantly impacts signal integrity. Because the effects loop involves two long cable runs (from the amp to the pedalboard and back), the total cable length can easily exceed 30 or 40 feet. This cumulative length increases capacitance, which rolls off high frequencies. Using high-quality, low-capacitance cables or a buffer is critical for long runs.

Enhance Your Sonic Architecture

Optimizing your signal flow through an effects loop is the most effective way to achieve a professional, studio-quality guitar tone in a live environment. By isolating your time-based processors from the preamp's gain stage, you unlock a level of depth and clarity that traditional "front-of-amp" setups simply cannot replicate.
