How To Use Drill Doctor 750x: Complete Precision Sharpening Guide

The Drill Doctor 750x restores worn, chipped, or dull high-speed steel, cobalt, carbide, and TiN-coated drill bits ranging from 3/32 inch to 3/4 inch (2.5 mm to 19 mm) to original factory specifications. By mastering chuck alignment, point angle selection (115° to 140°), custom relief adjustment, and web-thinning split point creation, operators can achieve exact drill geometries for maximum cutting efficiency and extended tool life.

Pre-Sharpening Setup & Tool Calibration

Achieving shop-grade cutting edges on the Drill Doctor 750x requires systematic setup and accurate identification of your cutting tools. Sharpener performance relies on accurate physical alignment in the chuck and clean grinding components. Dirt, metal filings, or improper wheel installation will degrade edge accuracy, alter chisel angles, and cause uneven flute geometry.

Essential Equipment and Tool Inspection Checklist

• Standard Sharpening Rig Components:


  • Drill Doctor 750x Main Unit with power cord (110V/120V standard outlet).
  • Standard 3/32" to 3/4" (2.5 mm to 19 mm) High-Precision Chuck.
  • Pre-installed 180-Grit Diamond Grinding Wheel (suitable for bits 3/32" to 3/4").
  • Hub Wrench (stored in the base unit for wheel removal and maintenance).
  • Optional: 100-Grit Coarse Diamond Grinding Wheel (recommended for rapid material removal on bits larger than 1/2" or severely damaged tips).
• Safety Equipment and Workspace Preparation:


  • ANSI Z87.1 approved safety glasses with side shields.
  • N95 or equivalent dust mask (prevents inhalation of fine metallic dust).
  • Soft-bristle bench brush and shop vacuum for cleaning metal debris.
  • Microfiber cloth and isopropyl alcohol (for cleaning grease off drill bit flutes).
• Prerequisite Technical Knowledge:


  • Bit Material Identification: Differentiate High-Speed Steel (HSS), Cobalt (HSCO), Titanium Nitride (TiN) coated, and solid Carbide bits to determine correct feed rate.
  • Flute Angle Fundamentals: Standard twist bits use a 118° point angle for soft metals, wood, and plastics, whereas hard metals (stainless steel, cast iron, titanium) require a 135° point angle to reduce work hardening.
• Process Benchmarks:


  • Setup Time: 2 to 3 minutes.
  • Sharpening Duration: 30 to 90 seconds per standard dull bit; 2 to 3 minutes for broken tip re-shaping.
  • Operating Cost: Negligible; diamond wheels typically sharpen 200 to 400 bits before requiring replacement.

Step-by-Step Sharpening and Point-Splitting Procedure

Step 1: Adjusting the Point Angle and Alignment Tube

Select the correct point angle before loading your bit. The Drill Doctor 750x features an adjustable angle gauge on the sharpening port housing ranging from 115° to 140°.

1. Loosen the angle adjustment knob located on the front face of the unit below the main grinding port.
2. Slide the angle selector assembly until the indicator line matches your target angle:


   • 118 Degrees: Use for standard drilling in wood, mild steel, aluminum, and general maintenance.
   • 135 Degrees: Use for hard materials including stainless steel, nickel alloys, and structural steel beams.
3. Tighten the angle adjustment knob securely to lock the sharpening port housing in place.

Warning: Do not attempt to adjust the angle selector while the motor is running or while a chuck is engaged in the grinding port. Internal gear damage and asymmetric face angles may result.

Step 2: Aligning the Bit in the Heavy-Duty Chuck

Proper alignment sets the exact depth and rotation angle of the bit flutes relative to the internal sharpening cams.

1. Turn the chuck jaw knob counterclockwise to open the jaws wider than the diameter of the drill bit.
2. Press the push-stop button located on the top of the Alignment Port and hold it down completely.
3. Slide the chuck into the Alignment Port until the white alignment mark on the chuck nose aligns with the 118°/135° mark on the alignment tube.
4. Insert the dull drill bit through the back of the chuck until the tip makes solid contact with the internal bit stop inside the alignment tube.
5. Release the push-stop button.
6. Rotate the bit inside the chuck until the spring-loaded metal alignment paws grip the narrowest part of the bit flutes (the land margins).
7. While applying light forward pressure on the back of the bit to keep it seated against the bit stop, turn the rear chuck knob clockwise to tighten the jaws firmly onto the bit shank.
8. Press the push-stop button once more, pull the chuck straight out of the alignment port, and give the chuck ring a final hand-tightening twist to ensure zero axial slip.

Pro-Tip: For bits smaller than 1/8 inch, double-check that the alignment paws seat cleanly against the flute channels rather than pinching the top edges of the cutting lands, as this will lead to an out-of-round point angle.

Step 3: Setting the Custom Material Relief Angle

The relief setting determines the clearance angle behind the cutting lip. The 750x features an adjustable relief control hatch on the side of the unit.

1. Locate the relief adjustment lever or alignment cam setting on the sharpening port rim.
2. Standard factory default positioning aligns with the center indicator notch (Standard Relief).
3. Adjust as required for specific applications:


   • Push toward "+": Increases lip relief angle for aggressive cutting action in softer materials like wood, brass, and plastics.
   • Push toward "-": Decreases lip relief angle to provide maximum strength and thermal backing behind the cutting lip when drilling stainless steel or hard alloys.

Step 4: Grinding the Cutting Lips

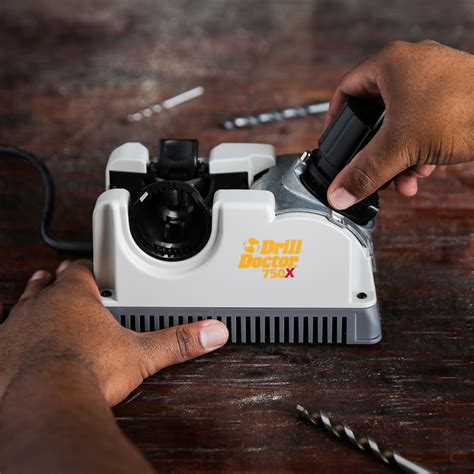

1. Place the Drill Doctor 750x on a stable, level workbench and turn the power switch ON. Allow the motor to reach full operational speed (approx. 15,000 RPM).
2. Hold the chuck firmly with your dominant hand and line up the white guide line on the chuck body with the top guide pin (12 o'clock position) on the sharpening port.
3. Insert the chuck straight into the sharpening port until the internal cam surface makes light contact with the guide pins.
4. Rotate the chuck smoothly in a clockwise direction 180 degrees until the secondary guide line meets the top guide pin. As you turn, apply gentle inward pressure while allowing the internal cam profile to rock the chuck back and forth naturally.
5. Complete paired 180-degree half-turns (one turn per lip side). Always execute grinding in balanced pairs (e.g., 2, 4, 6, 8 half-turns).
6. Continue rotating until the abrasive grinding sound fades and no further material contact is heard.
7. Switch the unit OFF, remove the chuck, and inspect the bit tip. Check for full surface clean-up across both chisel facets.

Pro-Tip: Do not force or plunge the chuck hard into the grinding wheel. Let the precision cam geometry dictate the feed depth. Excessive inward force will heat-treat the steel, cause blue thermal discoloration, and destroy the bit's temper.

Step 5: Executing the Point Split (Self-Centering Feature)

Standard point bits tend to "walk" or wander across flat metal surfaces before biting. Thinning the center web through point-splitting creates a self-centering point that eliminates the need for a center punch.

1. Ensure the power switch remains ON.
2. Locate the Split Port on the upper left side of the main housing.
3. Take the loaded chuck (with the freshly ground bit still clamped in place) and align the white guide line on the chuck body with the guide notch on the Split Port frame.
4. Insert the chuck straight into the Split Port until the chuck guide shoulder makes firm contact with the internal stop.
5. Press inward steadily until you hear and feel the diamond wheel lightly grind the web area. Hold for 1 second, then pull straight out.
6. Rotate the chuck 180 degrees to align the opposite white mark with the Split Port guide notch.
7. Repeat the plunge movement to grind the second side of the web evenly.
8. Inspect the tip. The two split cuts should meet precisely at the central axis of the bit without removing the primary cutting edges.

Technical Specifications & Bit Geometry Parameters

The operational parameters below outline exact geometric tolerances, point angles, relief settings, and sharpening cycle counts across common industrial bit classes.

Common Sharpening Errors & Field Troubleshooting

Asymmetric Flutes and Off-Center Point

• Root Cause: The drill bit was clamped crookedly in the chuck, or an odd number of half-turns was completed during grinding (e.g., 5 half-turns instead of 6), leaving one cutting lip longer than the other.
• Actionable Fix: Unclamp the bit from the chuck completely. Clean all grit and metal shavings out of the alignment tube and chuck jaws using compressed air or a bench brush. Re-align the bit using Step 2, ensuring the alignment paws pinch precisely into the narrowest portion of the flutes. Re-sharpen using precise, even pairs of 180-degree rotations.

Blue Thermal Discoloration / Temper Loss at Bit Tip

• Root Cause: Excessive inward force applied while pushing the chuck into the grinding port, or executing too many continuous passes without letting heat dissipate.
• Actionable Fix: Grind off the blued/overheated section of metal by executing light, rapid half-turns. Thermal bluing softens high-speed steel and ruins edge retention. Apply light contact pressure—allow the diamond abrasive to remove metal at its natural cutting rate.

Split Point Off-Center or Gouging Flutes

• Root Cause: Chuck was pushed into the Split Port at an angle, or the chuck alignment marks were misaligned with the Split Port guide notches.
• Actionable Fix: Insert the chuck straight into the Split Port without twisting or angling the body. Always pull the chuck completely out of the port before rotating 180 degrees for the second plunge. If the split is shallow, increase inward push force slightly until the chuck shoulder firmly hits the internal mechanical stop.

Bit Skips, Wanders, or Refuses to Cut Metal

• Root Cause: Insufficient heel relief angle, resulting in the heel (the metal behind the cutting lip) rubbing against the workpiece before the cutting edge can engage.
• Actionable Fix: Increase the relief setting by moving the adjustment hatch toward the "+" indicator. Re-sharpen the primary facets to steepen the slope behind the cutting edge.

Frequently Asked Questions

Can the Drill Doctor 750x sharpen solid carbide or masonry drill bits?

Yes. The factory-installed diamond wheel grinds solid carbide and carbide-tipped masonry bits cleanly without heat fracture. However, masonry bits should be ground using flat primary facets only—do not attempt to run masonry bits through the point-splitting port.

How many half-turns are required to sharpen a standard dull bit?

Most standard dull bits require 4 to 8 half-turns (2 to 4 full rotations) to clean up both cutting edges. Extremely dull or damaged bits may require 12 to 20 half-turns. Always stop grinding once the wheel noise becomes quiet and uniform.

When should the diamond grinding wheel be replaced?

Replace the diamond wheel when grinding takes significantly longer than normal, requires heavy push force, or leaves rough, jagged edges on the bit tip. A standard 180-grit wheel typically lasts for 200 to 400 sharpenings depending on bit size and material hardness.

Why does my drill bit binding or stall in the hole after sharpening?

This occurs when the relief angle is set too low or the outer margin corners of the bit have worn undersized. Increase the relief angle setting toward "+" and inspect the outer diameter margins of the bit; if the margins are rounded or worn tapered, cut back the damaged tip section before re-sharpening.

What is the advantage of a 135-degree point angle over a 118-degree point angle?

A 135-degree point angle presents a flatter profile that engages more surface area immediately, reducing chip load per revolution and preventing tool chatter in hard materials like stainless steel. A 118-degree point angle features a steeper point that penetrates softer materials like wood and aluminum faster with less downward thrust.
