Mastering Delimited Files In Excel: A Technical Guide For Data Integrity

Utilizing delimited files in Excel involves parsing structured text data—typically CSV or TXT formats—into specific cells based on defined character separators such as commas, tabs, or semicolons. Mastery of the Text Import Wizard and the Power Query editor ensures seamless data migration, prevents character encoding errors, and maintains numerical precision during cross-platform information exchanges.

Foundational Requirements for Data Import Success

Before executing a delimited import, ensure the source file adheres to standard formatting conventions to prevent data truncation or misaligned columns. Misaligned data is the most common cause of database corruption when moving between CRM systems and spreadsheet software.

• Essential Technical Prerequisites


  • Confirmed source file format: Ensure your file is saved as .csv, .txt, .prn, or .tsv.
  • Character Encoding Awareness: Identify whether your file is UTF-8, ANSI, or Unicode (UTF-16). Mismatched encoding often causes special characters and foreign language symbols to display as "mojibake" or illegible text strings.
  • System Regional Settings: Verify that your Windows or macOS system language settings match the delimiter used in the file; for instance, European regions often use semicolons as decimal separators, which can conflict with standard comma-delimited files.
• Mandatory Operational Standards


  • Source File Validation: Ensure the delimiter (comma, tab, pipe, etc.) is consistent throughout the entire document. A single row with an extra or missing delimiter will shift every subsequent cell to the right or left.
  • Memory Allocation: For files exceeding 100MB, avoid the traditional import wizard and utilize Power Query (Data > Get Data) to prevent application memory crashes.

Professional Workflow for Importing Delimited Data

Step 1: Initiating the Text Import Wizard

Navigate to the Data tab on your Excel ribbon and select Get Data, then From File, and choose From Text/CSV. If you are working with an legacy .txt file, selecting the file directly will trigger the Power Query interface. If you prefer the classic Wizard interface for granular control over fixed-width data, you can reactivate it via File > Options > Data > Show legacy data import wizards.

Step 2: Defining the Delimiter and Data Type

Once the file is selected, the preview window will display how Excel interprets your data. In the File Origin dropdown, ensure the encoding is set correctly. The Delimiter dropdown allows you to specify the character separating your values.

Pro-Tip: If your file uses a non-standard delimiter—such as a pipe (|), caret (^), or tilde (~)—select the Custom option and manually input the character. If you select the wrong delimiter, the entire data set will appear trapped within a single column.

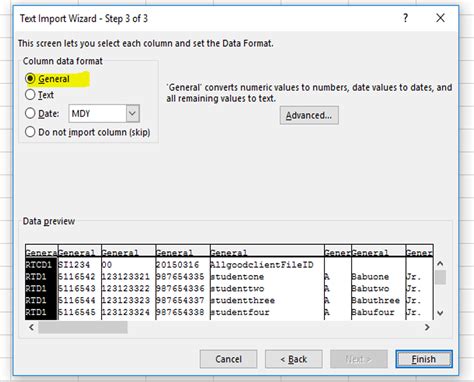

Step 3: Column Data Formatting and Precision

During the import process, Excel automatically guesses the data type for each column (General, Text, or Date). This is a frequent point of failure for serial numbers or leading-zero codes (like Zip codes).

Warning: Allow Excel to treat identification numbers as General or Number types, and it will strip leading zeros. Always manually set columns containing IDs, phone numbers, or account codes to "Text" format during the import phase to preserve exact data integrity.

Step 4: Loading into the Data Model

Once the columns are correctly delimited and formatted, choose whether to Load the data directly into a worksheet or to Load To the Data Model. Loading to the Data Model is recommended if you intend to perform relational analysis between multiple delimited files using Power Pivot.

Comparative Analysis of Import Methods and Constraints

Addressing Common Parsing Failures and Data Errors

Data integrity errors during delimited imports usually stem from underlying syntax issues in the source file. Adhere to these field-proven solutions to rectify common disruptions.

• Failure: Leading Zeros Disappear


  • Root Cause: Excel’s internal engine treats numeric strings as math-ready integers, automatically stripping non-significant leading zeros.
  • Actionable Fix: In the Power Query editor, select the transform column, change the Data Type from "Whole Number" to "Text," and ensure "Replace Current" is selected.
• Failure: Text Wrapped in Quotation Marks


  • Root Cause: The source system generated the file with text qualifiers to preserve commas inside fields (e.g., "City, State").
  • Actionable Fix: Within the Text Import Wizard or Power Query, ensure the "Quote" or "Text Qualifier" setting is set to double-quotes ("). This tells Excel to ignore delimiters located between quote marks.
• Failure: Date Format Incompatibility


  • Root Cause: A conflict between the source file's date format (e.g., DD/MM/YYYY) and the system's local region settings (e.g., MM/DD/YYYY).
  • Actionable Fix: Use the "Using Locale" feature in the Power Query column transformation menu to specify the source date format exactly, forcing Excel to parse the dates correctly regardless of your local machine settings.

Frequently Asked Questions

Why does my delimited file open all in one column?

This occurs because Excel did not recognize the specific character being used as a delimiter. You must manually select the file using the Get Data menu and explicitly define the delimiter character—such as a comma or tab—in the import dialog box.

What is the difference between a CSV and a TSV file?

A CSV uses a comma (,) as the separator, while a TSV uses a horizontal tab character. TSV files are generally safer for technical data because commas are common punctuation in standard text fields, whereas tabs are rarely used within body copy.

Can I save an Excel file as a delimited file?

Yes, navigate to File > Save As and select CSV (Comma delimited) from the file format dropdown menu. Note that this will only save the active sheet and will strip all formulas, macros, and formatting, leaving only the raw data values.

How do I handle large delimited files that exceed one million rows?

Excel's grid limit is 1,048,576 rows. If your delimited file is larger, do not load the data into the spreadsheet. Use the Power Query "Load To" option to select "Only Create Connection" and load the data directly into the Data Model for analysis via PivotTables.
