Mastering The Clamp Ammeter: A Professional Guide To Non-Invasive Current Measurement
A clamp ammeter measures AC or DC electrical current by detecting the magnetic field generated by current flowing through a conductor, allowing for circuit testing without physical disconnection. Achieving accurate readings requires isolating a single conductor and ensuring the clamp jaws are fully closed to maintain the integrity of the magnetic flux path around the internal current transformer.
Essential Preparation and Operational Prerequisites
Before initiating any electrical measurement, verify that the clamp meter is rated for the specific environment and voltage levels of the circuit under test. Professional-grade digital clamp meters should meet the International Electrotechnical Commission (IEC) standards, specifically CAT III for distribution circuits or CAT IV for utility service entrances.
- Required Equipment:
- True RMS digital clamp meter (essential for non-sinusoidal waveforms).
- Personal Protective Equipment (PPE) including arc-rated clothing and insulated gloves if working near live terminals.
- Non-contact voltage tester for secondary verification.
- Mandatory Knowledge: Familiarity with the National Electrical Code (NEC) regarding conductor insulation types and circuit load limits.
- Estimated Duration: 5 to 15 minutes depending on accessibility and circuit complexity.
- Budgetary Benchmark: Professional instrumentation ranges from 100 USD for general maintenance models to 800 USD for advanced diagnostic units with Bluetooth integration and high-frequency capabilities.
Procedural Workflow for Precision Current Measurement

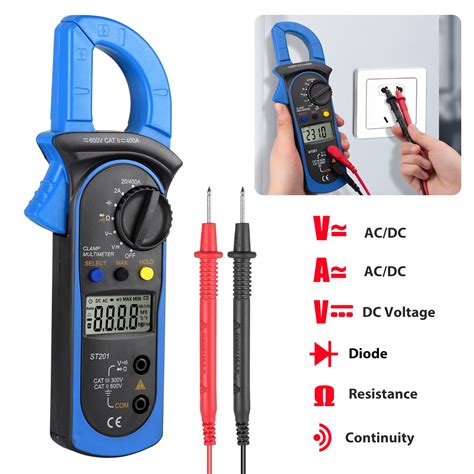

Step 1: Initial Instrument Configuration
Select the appropriate measurement mode on your clamp meter dial. If measuring standard house current, set the dial to the Amperes (A) position with the AC symbol. If your device has a manual range selection, choose a range higher than the expected current to prevent overload errors. Ensure the test leads are disconnected from the meter if you are only measuring current, as they can interfere with the ergonomic handling of the jaws.
Step 2: Isolation of the Conductors
Identify the conductor you intend to measure. The most frequent error in current measurement is clamping around an entire multi-conductor cable, such as a standard power cord or Romex cable. Because the current flowing toward the load and the return current flowing away from the load produce equal and opposite magnetic fields, they cancel each other out, resulting in a zero reading on the meter. You must separate the conductors and clamp around only one hot (ungrounded) wire.
Warning: Never attempt to strip live wires to separate them unless you are a licensed professional equipped with appropriate arc-flash protection. Use a line splitter accessory if the wires are bundled in a sheath.
Step 3: Proper Positioning of the Jaws
Open the jaws of the clamp meter and position the conductor deep into the center of the jaw opening. The sensor is located at the center of the iron core; improper alignment near the jaw tips can introduce significant error margins. Ensure the jaws snap shut completely and are free of debris, as any gap in the iron core creates magnetic resistance, leading to false low readings.
Step 4: Capture and Hold Data
Once the jaws are securely closed, observe the digital display. If the reading fluctuates, press the Data Hold button to capture the stable value. If you are diagnosing an intermittent fault or checking for high inrush current, use the Inrush (INR) or Min/Max capture function. The meter will record the peak current value during the first few cycles of motor startup, which is critical for sizing breakers.
Step 5: Verification and Finalization
Release the clamp from the conductor, return the selector dial to the Off position, and inspect the meter for any housing damage or frayed leads. If the reading obtained is higher than the rated capacity of the wire gauge being tested, immediately check the circuit for downstream faults or excessive load conditions.
How To Measure Voltage Using Clamp Meter at Karen Medina blog
Technical Specifications and Measurement Parameters
The following table outlines the standard operational thresholds and selection criteria for professional-grade clamp ammeters to ensure compliance with field diagnostics.
| Feature Category | Specification Metric | Industrial Application |
|---|---|---|
| Measurement Type | True RMS | Eliminates error in non-linear or harmonic-rich loads. |
| Safety Rating | CAT III 600V / CAT IV 300V | Baseline protection for distribution panel access. |
| Jaw Opening | 30mm to 50mm | Capacity for various busbar and thick cable sizes. |
| Frequency Range | 40Hz to 400Hz | Accurate capture of variable frequency drive (VFD) outputs. |
| Inrush Capacity | 100ms Integration | Captures motor starting surges accurately. |
Troubleshooting Common Measurement Failures
Electrical measurement errors typically stem from environmental interference or operator oversight rather than tool malfunction. Addressing these issues immediately ensures the safety of the technician and the accuracy of the diagnostics.
- Symptom: Meter reads zero despite known load.
- Root Cause: Clamping around a multi-conductor cable where magnetic fields cancel out.
- Actionable Fix: Use a line splitter or carefully isolate the individual hot wire from the sheath to ensure only one conductor is within the magnetic loop.
- Symptom: Reading fluctuates significantly while the load is stable.
- Root Cause: Incomplete jaw closure or external magnetic interference from nearby high-voltage equipment.
- Actionable Fix: Clean the mating surfaces of the jaws and move away from high-power transformers or heavy-gauge busbars that may induce stray fields.
- Symptom: Inconsistent values on VFD-controlled equipment.
- Root Cause: The clamp meter is not True RMS or is operating outside the frequency bandwidth of the drive.
- Actionable Fix: Switch to a high-end, True RMS meter capable of measuring low-frequency PWM signals typical of modern inverter drives.
Frequently Asked Questions
Can I measure DC current with any clamp meter?
No, most standard clamp meters only measure AC current using current transformers. To measure DC current, you must use a meter equipped with a Hall Effect sensor, which is specifically designed to detect static magnetic fields.
Why does my reading change when I move the wire inside the jaw?
This indicates the meter has poor sensor centering or internal calibration issues. Always ensure the conductor is positioned at the exact center of the iron core to minimize the influence of the earth's magnetic field and physical gaps in the core.
Do I need to turn off the power before clamping the wire?
No, the primary advantage of a clamp ammeter is its ability to measure current while the circuit is live. This allows for real-time load testing without the downtime required to break the circuit for an inline series measurement.
What is the purpose of the Inrush setting?
The Inrush setting allows the meter to sample current at a high rate for a short duration, typically 100 milliseconds. This captures the temporary current spike that occurs when a motor or compressor first turns on, which is essential for determining if a circuit breaker is tripping due to an actual fault or just a normal startup surge.
