How To Use Bissell Spotbot: Complete Step-by-Step Operating Guide

The Bissell Spotbot is an automated hands-free portable carpet cleaner designed to lift embedded pet stains and high-traffic spots through preset cleaning cycles and specialized spiral brushing technology. Operating the device successfully requires proper chemical dilution ratios, correct suction plate alignment, and systematic pre-treatment protocols to prevent moisture damage to subfloors.

Pre-Operation Setup & Material Checklist

Executing a successful cleaning session with your Bissell Spotbot requires checking mechanical components, staging specific cleaning agents, and assessing the target carpet fiber type. Operating portable carpet extractors without proper preparation can result in excessive moisture retention, chemical residue accumulation, or carpet backing delamination.

• Essential Gear & Materials: Bissell Spotbot machine, Bissell 2X Pet Stain & Odor formula (or Oxy formula), warm tap water (not boiling), dry absorbent microfiber towels, and a stiff-bristled upholstery brush.
• Mandatory Prerequisite Knowledge: Verification of carpet fiber colorfastness (test an inconspicuous corner for dye bleeding), confirmation that the surface is synthetic (nylon, polyester, olefin) rather than natural delicate fibers like wool or sisal, and understanding the two main operational modes: Hands-Free and Hose/Tool mode.
• Estimated Time & Benchmarks: 15 to 20 minutes per active spot cycle, followed by a minimum of 4 to 6 hours of passive air-drying time to prevent mold growth in the carpet backing.

Step-by-Step Operating Workflow for the Bissell Spotbot

Step 1: Inspect and Vacuum the Target Area

Before introducing any liquid cleaning solutions, remove loose dirt, pet hair, and particulate debris from the stained zone using a standard dry vacuum cleaner. Vacuuming prevents loose grit from being pushed deeper into the carpet tufts during the mechanical scrubbing phase, which creates abrasive mud that wears down carpet fibers.

Warning: Never skip the dry vacuuming step. Introducing water to un-vacuumed pet hair and dry soil turns the debris into a cement-like slurry that is significantly harder to extract from the base of the carpet.

Step 2: Prepare the Clean Water and Solution Tank

Remove the removable clean water tank from the back of the Spotbot base. Twist off the tank cap and measure warm tap water up to the designated water fill line (ensure water temperature does not exceed 140 degrees Fahrenheit or 60 degrees Celsius to avoid warping plastic reservoirs). Add Bissell cleaning formula up to the specified formula fill line, ensuring you do not over-concentrate the detergent, as excess soap acts as a magnet for future dirt. Replace the cap securely, lock it into place, and seat the tank firmly back onto the machine base.

Step 3: Select the Appropriate Cleaning Cycle

Plug the power cord into a properly grounded 120-volt electrical outlet. Press the power button to activate the machine. Use the cycle selection button on the control panel to choose your automated cleaning mode based on the severity of the stain:

1. Press once for the Quick Clean cycle, designed for surface spots and minor liquid spills (approx. 3-minute run time).
2. Press twice for the Set-In Stain cycle, designed for deeper, dried-on messes that require extended scrubbing and soaking periods (approx. 6-minute run time).

Step 4: Position the Hands-Free Spiral Brushing Head

Unwrap the flexible hose and lift the heavy-duty spray and suction foot (the circular cleaning head). Place the cleaning head directly over the center of the stain, ensuring the circular vacuum and brush ring makes flat, flush contact with the carpet surface.

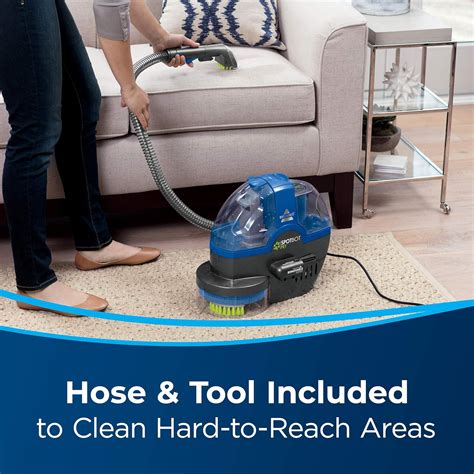

Pro-Tip: For vertical surfaces or awkward upholstery stairs, detach the hands-free head and switch to manual Hose Mode, holding the manual Tough Stain Tool against the fabric while pressing the spray trigger manually.

Step 5: Execute the Automated Cycle and Extract

Press the Start button on the control panel to initiate the pre-programmed spray, brush, and suction sequence. The internal motor will automatically cycle through dispensing cleaning solution, agitating the fibers via dual spiral rotating brushes, and vacuuming up the dirty slurry. Allow the machine to run through its entire programmed cycle automatically until the indicator lights signal completion, then lift the unit straight up by its handle.

Technical Parameter Comparison of Spotbot Modes and Settings

Troubleshooting Common Spotbot Performance Errors

• Root Cause: Zero spray output or weak fluid distribution from the spray jets.


  • Actionable Fix: Turn off the machine, remove the clean water tank, and check the valve cap on the bottom of the tank to ensure it is not jammed. Clear any mineral or detergent buildup from the spray nozzle tips using a fine needle or toothpick.
• Root Cause: Loss of suction or excessive water left behind in the carpet fibers.


  • Actionable Fix: Empty the dirty water recovery tank, as the automatic float stack has likely engaged to prevent overflow. Ensure the recovery tank lid is snapped down completely airtight, and check the flexible hose for kinks or clogs.
• Root Cause: Rotating brushes fail to spin during the active cycle.


  • Actionable Fix: Remove the clear nozzle cover on the bottom of the circular cleaning foot, clear away wrapped hair or carpet threads choking the brush axle, and ensure the belt is properly seated on the drive gear.
• Root Cause: Foul sour odor persisting after cleaning.


  • Actionable Fix: The stain has likely penetrated past the carpet backing into the subfloor or cushion padding. Use the manual hose mode to inject an enzyme-based pet odor neutralizer deep into the pad, followed by pressing dry towels firmly onto the area to wick out deep moisture.

Frequently Asked Questions

Can I use regular laundry detergent or dish soap in my Bissell Spotbot?

No. Standard household detergents, dish soaps, and high-foaming cleaners produce excessive suds that will overwhelm the recovery tank, damage the internal vacuum motor, and leave a sticky residue on your carpet fibers that rapidly attracts new dirt. Always use low-foam formulas specifically engineered for portable carpet extractors.

Why is my Spotbot leaking water from the bottom during operation?

Bottom leaks typically stem from an improperly seated recovery tank, a loose tank gasket seal, or a cracked dirty water basin. Ensure the recovery tank is clicked firmly into its latches, and inspect the rubber drain plug on the back of the tank to verify it is pushed completely shut.

How do I clean the machine after finishing a stain removal job?

Empty and rinse out the dirty water recovery tank thoroughly with warm water, wash any collected pet hair and debris off the circular brush head, and run a clean cup of plain water through the suction intake using the manual hose to flush out internal lines before storing the unit dry.

Is it safe to use the Bissell Spotbot on wool carpets or natural fiber rugs?

No. Natural fibers such as wool, silk, jute, and sisal are sensitive to high moisture, mechanical friction, and standard extraction chemicals, which can cause severe shrinkage, fiber distortion, and permanent browning or dye bleeding. Restrict Spotbot use strictly to synthetic carpet fibers like nylon, polyester, and olefin.

Master the art of fabric maintenance and eliminate stubborn household stains by following proper operating protocols for your extraction equipment every single time.
