How To Use An Amp Clamp: A Professional Guide To Current Measurement

An amp clamp, or current clamp, functions by measuring the magnetic field generated by current flowing through a single conductor, allowing for non-invasive amperage readings without breaking the circuit. Proper execution requires isolating a single current-carrying wire, ensuring the clamp jaws are fully closed, and selecting the appropriate AC or DC mode on the multimeter to achieve precise diagnostic accuracy.

Essential Preparation and Technical Requirements

Before initiating current measurement, you must establish a safe and accurate testing environment. Using an amp clamp incorrectly can lead to erroneous readings, such as measuring the net flux of a power cord rather than the actual current draw of a device.

• Essential Equipment: A digital multimeter with a compatible current clamp attachment or a dedicated clamp meter, personal protective equipment (PPE) such as rated electrical gloves if working near live high-voltage components, and a line splitter for testing standard appliance cords.
• Prerequisite Knowledge: Basic understanding of Ohm’s Law, familiarity with the difference between alternating current (AC) and direct current (DC) measurement protocols, and knowledge of the specific current rating limits of your meter.
• Standards and Compliance: Ensure your device meets Cat III or Cat IV safety ratings depending on the voltage environment. Calibration should be verified annually to meet ISO/IEC 17025 standards for precision instrumentation.
• Budget and Duration: Basic clamp meters range from 50 to 500 USD. The diagnostic process typically takes less than 5 minutes once access to the conductor is secured.

Executing Precise Amperage Measurements

Step 1: Mode Selection and Zeroing

Set your multimeter dial to the current measurement function (labeled A or ACA/DCA). If you are using a clamp meter that measures DC current, you must perform a zero-adjustment. With the jaws completely closed and away from any magnetic fields, press the REL or ZERO button to null out the residual magnetic flux in the core. Failure to zero the meter in DC mode is the most common cause of significant measurement drift.

Step 2: Isolating a Single Conductor

An amp clamp cannot measure current if you clamp it around a standard two-wire or three-wire power cord. Because electricity flows in equal and opposite directions through the hot and neutral wires, the magnetic fields cancel each other out, resulting in a reading of zero. You must access the internal wiring or use a line splitter. A line splitter separates the hot and neutral wires, allowing you to clamp onto just the individual hot conductor.

Warning: Never attempt to strip live insulation unless you are trained in high-voltage procedures. If you cannot isolate a single conductor safely, utilize a calibrated line splitter device.

Step 3: Positioning the Clamp Jaws

Open the clamp jaws and place the single conductor in the center of the aperture. The jaws must snap shut completely. Any gap in the magnetic core will introduce air-gap error, which significantly degrades the accuracy of the reading. If the conductor is positioned at an angle or touching the hinge of the jaws, the measurement will likely be skewed.

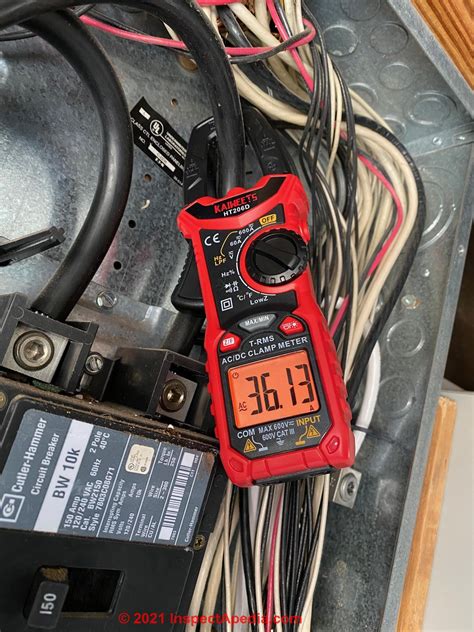

Step 4: Reading and Analyzing the Current

Once the jaws are closed firmly around the conductor, observe the display. If the reading is unstable or fluctuating, engage the Data Hold or Min/Max recording function to capture the steady-state current. If you are measuring a motor start-up or an inrush current, use the Inrush function on your meter to capture the high-amperage spike that occurs within the first 100 milliseconds of operation.

Pro-Tip: If the current is too low to register, loop the wire through the clamp jaws multiple times (e.g., 5 loops) and divide the final reading by the number of loops to increase sensitivity.

Technical Specifications and Measurement Parameters

The following table outlines the recommended parameters for various electrical measurement scenarios to ensure high-fidelity data capture.

Resolving Common Measurement Failures

Even with high-quality equipment, field measurements can be compromised by environmental factors or improper technique.

• Zero-Reading on a Live Circuit:


  • Root Cause: The clamp is encircling both the hot and neutral wires, canceling out the magnetic field.
  • Actionable Fix: Use a line splitter or peel back the outer sheath of the cable to isolate a single conductor before re-clamping.
• Erratic or Drifting DC Measurements:


  • Root Cause: The meter was not zeroed before the measurement, or the orientation of the clamp was changed during the test.
  • Actionable Fix: Remove the clamp from the wire, hold the meter in its final testing orientation, perform a zero-calibration, and re-clamp the conductor.
• Inaccurate Reading on Inverter or VFD Circuits:


  • Root Cause: The meter is not rated for True RMS, resulting in errors due to non-sinusoidal waveforms.
  • Actionable Fix: Utilize a True RMS-rated clamp meter capable of capturing the high-frequency harmonics inherent in switching power electronics.

Frequently Asked Questions

Can I use an amp clamp to measure voltage?

No, an amp clamp is designed exclusively for measuring current by detecting the magnetic field around a wire. To measure voltage, you must use the standard test leads and plug them into the voltage (V) input ports on your multimeter.

Why does my clamp meter display a reading when there is no current?

This is usually caused by residual magnetism in the clamp core, especially common in DC-capable meters. Always ensure you press the zeroing button while the jaws are closed and away from any conductors to reset the magnetic sensor.

Is True RMS necessary for measuring house current?

While standard averaging meters are sufficient for pure sine waves, most modern electronics and LED lighting create distorted waveforms. A True RMS meter is highly recommended for accurate results in any modern residential or commercial diagnostic environment.

Can I clamp onto a shielded cable?

You cannot reliably measure current through a shielded cable or metal conduit. The shielding creates a Faraday cage effect that blocks the magnetic field from reaching the clamp sensor. You must expose the internal conductor for an accurate reading.

What is inrush current and why does it matter?

Inrush current is the high initial surge of electricity that occurs when a motor or appliance starts. It can be several times higher than the running current; capturing it is essential to prevent nuisance tripping of circuit breakers or to diagnose failing motor bearings.
