Master The Airless Spray Gun: A Professional Guide To Flawless Finishes

Achieving a professional-grade finish with an airless spray gun requires precise hydraulic atomization, typically between 1,500 and 3,000 PSI, to force coating materials through a specialized tungsten carbide tip. Success hinges on a 50% stroke overlap, maintaining a consistent 12-inch substrate distance, and selecting the correct orifice size to prevent "tails" or excessive overspray.

Pre-Operation Setup and Material Preparation

Before engaging the pump, understanding the mechanics of an airless system is vital. Unlike HVLP (High Volume Low Pressure) systems that use air to atomize paint, airless sprayers use high-pressure fluid displacement. This allows for significantly higher production speeds and the ability to spray thick architectural coatings without thinning. However, this high pressure introduces specific safety risks, most notably high-pressure injection injuries, which occur if the skin comes into contact with the fluid stream.

Essential Equipment and Preparation Checklist

• Airless Sprayer Unit: Rated for the specific Gallons Per Minute (GPM) required by the coating's viscosity.
• High-Pressure Hose: Standard 1/4-inch or 3/8-inch diameter, typically 50 feet in length, rated for at least 3,300 PSI.

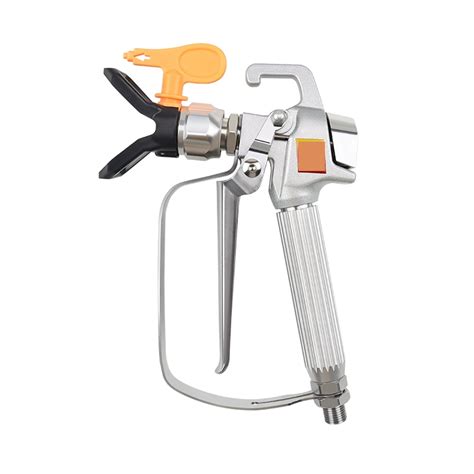

• Spray Gun and Tip Guard: The assembly that holds the tip and prevents accidental contact with the orifice.
• Reversible Spray Tips: Sized according to the material (e.g., 515 for latex, 311 for stains).
• Personal Protective Equipment (PPE): NIOSH-approved respirator (N95 or P100 depending on VOCs), safety goggles, and chemical-resistant gloves.
• Straining Supplies: Fine-mesh paint strainers to remove particulates that cause tip clogs.
• Cleaning Solvents: Water for latex/acrylic; mineral spirits or lacquer thinner for oil-based products.

Site Preparation Benchmarks

Proper site prep is non-negotiable due to the inherent overspray of airless systems. You should plan for at least two hours of masking for every one hour of actual spraying. Use 12-inch or 18-inch masking paper combined with 2-mil plastic sheeting to protect any surface not intended for coating. Ensure the ambient temperature is between 50°F and 85°F (10°C - 29°C) and humidity is below 85% to facilitate proper evaporation and film formation.

Mastering the Airless Spraying Sequence

Operating an airless sprayer is a rhythmic process that demands coordination between the trigger finger and the movement of the arm. Failure to sync these lead to "banding" or heavy deposits at the start and end of each stroke.

Step 1: Priming and Flushing the System

The system must be cleared of air and storage fluids (like pump armor or water) before paint is introduced.

1. Submerge the suction tube into the paint bucket and place the smaller prime/drain tube into a waste bucket.
2. Turn the "Prime/Spray" valve to the "Prime" position.
3. Turn the pressure control to the lowest setting and switch the power on.
4. Slowly increase the pressure until the pump cycles steadily and paint flows consistently out of the drain tube.
5. Switch the valve to the "Spray" position. Hold the gun (without a tip installed) against the side of the waste bucket and pull the trigger until a steady stream of paint appears, then engage the trigger lock.

Step 2: Tip Selection and Pressure Calibration

The three-digit code on the spray tip determines the performance. The first digit represents half the fan width (a 517 tip produces a 10-inch fan). The last two digits represent the orifice size in thousandths of an inch (.017 inches).

1. Insert the tip into the guard and tighten it onto the gun.
2. Adjust the pressure knob to a medium-low setting.
3. Test the spray pattern on a piece of scrap cardboard.
4. If the pattern shows "tails" (heavy lines at the top and bottom of the fan), increase the pressure incrementally.
5. The goal is the lowest pressure possible that achieves full atomization without tails. Over-pressurizing leads to excessive overspray and premature tip wear.

Warning: Never attempt to clear a tip clog by wiping the orifice with your finger while the system is pressurized. Use the "Reverse-A-Clean" feature by rotating the tip 180 degrees and spraying into a waste bucket.

Step 3: Executing the Stroke and Overlap

Consistency is the hallmark of a professional finish. The gun must remain equidistant from the surface at all times.

1. Hold the spray gun exactly 10 to 12 inches from the substrate.
2. Keep the gun perpendicular to the surface. Avoid "arcing" the gun at the ends of the stroke, as this creates uneven thickness and "dusty" edges.
3. Start moving your arm before pulling the trigger. Release the trigger before stopping the arm movement. This "feathering" prevents heavy build-up at the transition points.
4. Aim the center of the spray fan at the edge of the previous pass. This 50% overlap ensures uniform coverage and eliminates "holidays" (missed spots).

Step 4: Maintenance and Post-Application Cleanup

Failing to clean an airless sprayer immediately after use will result in internal valve failure and hardened paint in the hose, often requiring expensive professional repair.

1. Perform the pressure relief procedure: Turn off the power, switch the valve to prime, and trigger the gun into a waste bucket to bleed off pressure.
2. Remove the spray tip and guard; place them in a container of solvent/water.
3. Flush the pump by drawing clean water or solvent through the suction tube until the discharge from the gun is clear.
4. Disassemble and clean the manifold filter, the gun filter, and the suction strainer. These are the three primary failure points for debris accumulation.

Material Compatibility and Technical Specifications

Selecting the correct pressure and tip size is dependent on the viscosity of the material. The following table provides the industry-standard benchmarks for various architectural and industrial coatings.

Troubleshooting Common Finish Defects

Real-world spraying environments often introduce variables like wind, humidity, and material inconsistencies. Identifying the root cause of a defect is the only way to ensure a durable finish.

• Problem: Significant Overspray and "Dusting"




  • Root Cause: The pressure is set too high for the tip size, or the gun is being held too far (more than 14 inches) from the surface.
  • Actionable Fix: Reduce the pressure until atomization barely holds, and maintain a strict 12-inch distance. Ensure there are no drafts in the workspace.

• Problem: Craters or "Fish-Eyes" in the Finish




  • Root Cause: Surface contamination, typically from oil, silicone, or leftover cleaning solvents that were not fully dried.
  • Actionable Fix: Stop spraying immediately. Allow the surface to dry, sand the affected area, clean with a degreaser, and ensure the pump system is flushed of any old solvent before restarting.

• Problem: Constant Tip Clogging




  • Root Cause: The paint was not strained, or the internal gun/manifold filters are bypassed or damaged.
  • Actionable Fix: Strain all paint through a fine mesh bag before it enters the suction tube. Inspect the gun filter and manifold filter for holes or improper seating.

• Problem: "Tails" or Heavy Edges in Spray Pattern




  • Root Cause: Insufficient fluid pressure to fully break apart the coating at the edges of the orifice.
  • Actionable Fix: Increase the pressure at the pump. If the pump is at maximum and tails persist, switch to a smaller orifice tip or slightly thin the material (if permitted by the manufacturer).

Frequently Asked Questions

Do I need to thin latex paint before using an airless sprayer?

In most cases, no. Modern airless sprayers are designed to pump heavy-bodied latex directly from the bucket. Thinning is only necessary if you are using an underpowered DIY-grade sprayer or if you are working in exceptionally cold temperatures where the paint has thickened.

How do I prevent the spray tip from drying out during a break?

If you are taking a break for more than 10 minutes, wrap the spray gun head and tip in a damp rag or submerge the tip in a small container of water (for latex) or solvent (for oil-based). This prevents the paint from skinning over the orifice.

What is the most common cause of airless sprayer pump failure?

The most frequent cause is improper cleaning and storage. If paint dries inside the "repackings" (the seals around the piston), it will score the piston rod and cause the pump to lose pressure. Always use a storage fluid like Pump Armor to prevent corrosion and sticking during the off-season.

How often should I replace my spray tips?

Spray tips are wear items. A standard tungsten carbide tip lasts for approximately 40 to 60 gallons of latex paint. You will know a tip is worn when the fan width decreases and the orifice becomes rounder, leading to more paint being applied in a smaller, thicker area.

Can I use an airless sprayer for cabinets and furniture?

Yes, but it requires a Fine Finish Low Pressure (FFLP) tip. These tips are designed to atomize material at 50% less pressure than standard tips, which reduces overspray and provides the high-quality, smooth finish required for cabinetry.

Optimize Your Coating Workflow

Mastering the airless spray gun is a definitive shift from basic DIY to professional-grade efficiency. By strictly adhering to pressure calibration and maintenance protocols, you ensure a durable, aesthetic finish that lasts for years.
