How To Update BTT Octopus Firmware: The Complete Step-by-Step Guide

Updating the BigTreeTech Octopus firmware requires compiling a custom Marlin or Klipper binary configured for the specific STM32 microcontroller variant on your board, transferring it via an SD card or DFU mode, and verifying successful flashing through system logs. Mastering this process ensures reliable multi-axis motion control, accurate thermal safety protections, and seamless expansion capabilities for advanced 3D printers.

Pre-Operation & Equipment Checklist

Flashing a modern 3D printer motherboard requires meticulous preparation to prevent corrupted bootloaders, bricked microcontrollers, or communication failures between the host and the MCU. Because the BigTreeTech Octopus series features multiple hardware revisions (such as the standard v1.1 and the Pro variant), verifying your specific board layout and chip architecture is mandatory before writing any binary files.

• Essential Gear and Tools: A reliable FAT32-formatted MicroSD card (capacity between 8GB and 32GB is ideal), a high-quality USB Type-C cable, a computer running Linux or Windows with your firmware development environment installed, and a stable power source (either a 24V PSU or 5V USB bridge depending on your flashing method).
• Mandatory Prerequisite Knowledge: Familiarity with text editors, basic command-line navigation, and the underlying configuration files for your chosen firmware framework (Klipper's printer.cfg and make menuconfig, or Marlin's Configuration.h and Configuration_adv.h).
• Estimated Budget and Duration: Budget zero financial cost if utilizing open-source toolchains, and allocate approximately 30 to 45 minutes for compilation, flashing, and initial diagnostic validation.

Complete Firmware Flashing Workflow for BTT Octopus Boards

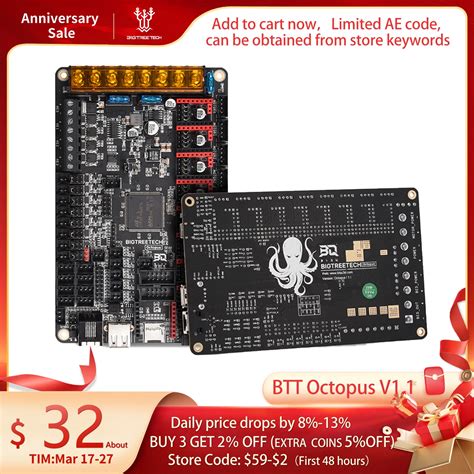

Step 1: Identify Your Exact Microcontroller Variant

Before touching any source code, you must determine which STM32 processor chip populates your specific BigTreeTech Octopus board. Inspect the physical board or your original purchase documentation to see if your board utilizes the STM32F446, STM32F429, or the newer STM32H723 processor. Compiling a binary for the wrong processor variant will fail to boot the board and may require explicit DFU recovery procedures.

Warning: Never attempt to flash a compiled binary built for an STM32F4 series onto an Octopus Pro featuring the STM32H7 series chip, as hardware registers and memory maps differ fundamentally between these architectures.

Step 2: Configure and Compile the Firmware Binary

Open your firmware compilation environment—such as Visual Studio Code with PlatformIO for Marlin, or the Katapult/Klipper build environment via SSH. Access the configuration menu using the appropriate processor architecture parameters matching your board identification from Step 1. For Klipper, run the make menuconfig command, set the micro-controller architecture to STMicroelectronics STM32, select the exact processor model (such as STM32F446 or STM32H723), select the appropriate bootloader offset (typically 32KiB bootloader or standard 64KiB depending on use), and configure the communication interface (usually USB on PA11/PA12 or CAN bus on PB12/PB13). Execute the make command to generate your firmware file.

Pro-Tip: Always keep a backup copy of your working configuration files in a secure version control system or local folder before making structural modifications or updating source repositories.

Step 3: Prepare the SD Card and Rename the Binary File

Locate your compiled firmware file on your computer. If you are flashing via MicroSD card, rename the output file strictly to firmware.bin. Note that the file extension must remain .bin, and Windows users should ensure that hidden file extensions are visible to prevent accidentally naming the file firmware.bin.txt. Copy this renamed file to the root directory of your FAT32-formatted MicroSD card, ensuring no other firmware files reside on the storage medium.

Step 4: Execute the Flash Sequence on the Octopus Board

Power down your 3D printer entirely and disconnect any high-voltage AC lines if you want to be extra cautious. Insert the prepared MicroSD card into the MicroSD slot on the BigTreeTech Octopus board. Power the board back on either by turning on your 24V power supply or by connecting the USB cable to your host computer or Raspberry Pi. Wait approximately 10 to 15 seconds to allow the onboard bootloader to read the MicroSD card and flash the binary into flash memory.

Step 5: Verify Successful Firmware Installation

After waiting the allotted time, power down the printer once more, remove the MicroSD card, and insert it into a computer to check its contents. If the flashing process succeeded, the bootloader will automatically rename the file on the SD card from firmware.bin to firmware.cur, indicating that the binary has been successfully consumed. Power the board back up and connect via your terminal software or Klipper host interface to check version numbers and confirm that all stepper drivers, thermistors, and endstops report telemetry correctly.

Comparison of BTT Octopus Processor Variants and Compilation Parameters

Common Flash Failures and Field Fixes

• Root Cause: The board fails to recognize the MicroSD card, leaving the file named firmware.bin unchanged on the storage medium after rebooting.


  • Actionable Fix: Ensure your MicroSD card has a capacity of 32GB or smaller, and format it strictly using the FAT32 file system with an allocation unit size of 4096 bytes (4KB). Avoid using large, high-speed SD cards formatted as exFAT.
• Root Cause: The firmware appears to flash, but communication over USB or serial fails entirely, preventing the host from connecting to the MCU.


  • Actionable Fix: Re-check your compilation configuration settings to ensure you selected the correct communication pins (such as USB on PA11/PA12) and verified the correct crystal frequency matching your specific board revision.
• Root Cause: The board becomes completely unresponsive after an interrupted flash attempt or a bad binary upload, resulting in a blank screen and dead LEDs.


  • Actionable Fix: Utilize the physical BOOT0 jumper pins on the Octopus board to force the MCU into DFU (Device Firmware Upgrade) mode, connect via USB-C to a computer running STM32CubeProgramter, and flash the bootloader or firmware directly.

Frequently Asked Questions

Can I flash the BTT Octopus firmware using a USB cable without an SD card?

Yes, you can flash the board directly over USB if your board already has a DFU-compatible bootloader or Katapult installed. However, for a completely fresh board or recovering a corrupted bootloader, using a formatted MicroSD card or hardware DFU programming pins is the most reliable method.

What should I do if my MicroSD card does not rename firmware.bin to firmware.cur?

This indicates that the bootloader on the STM32 chip did not detect or read the storage medium. Try using a different brand of MicroSD card, reformat it to FAT32, ensure the file is placed directly in the root directory rather than a folder, and verify that the file extension is strictly .bin.

How do I know which clock frequency and offset to select during compilation?

Consult the official BigTreeTech GitHub documentation for your exact Octopus hardware revision. The standard STM32F446 processors typically use a 32KiB bootloader offset, while the high-performance STM32H723 processors found on newer Pro models require specific offset configurations detailed in the manufacturer's pinout schematics.

Is it possible to update Klipper on the Octopus via CAN bus?

Once you have initially flashed the board with Katapult and a base firmware supporting CAN bus communication, subsequent updates can be compiled and flashed directly over the CAN bus network without physically accessing the printer or using an SD card.
