How To Unscrew A Stripped Allen Screw: Step-by-Step Extraction Guide

Stripped internal hex fasteners yield quickly when approached with a non-destructive to aggressive extraction sequence. Applying deep-penetrating solvent, driving an oversized Torx bit into the rounded recess, or cutting a slotted drive interface clears over 90% of stubborn socket cap screws without ruining surrounding host materials. When thread-locking compounds or severe corrosion are present, combining localized heat with left-hand drill bits and spiral extractors guarantees safe fastener removal.

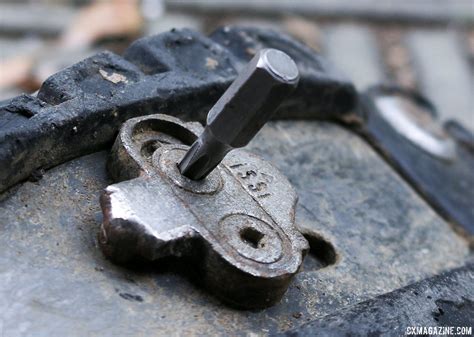

Pre-Extraction Diagnostic & Tooling Setup

Internal hex drive fasteners—commonly called Allen screws or socket head cap screws—strip when the applied counter-clockwise torque exceeds the yield strength of the hex wall interfaces. This frequently happens due to corrosion, threadlocker overuse, incorrect bit sizing (such as using an Imperial key on a Metric fastener), or off-axis driver engagement.

Before applying force, assess the material hardness of both the fastener (e.g., Grade 8.8 steel, 12.9 high-tensile steel, stainless steel A2/A4, or soft aluminum) and the host material. Applying aggressive force to a steel screw seated in an aluminum housing without chemical or thermal assistance risks stripping the internal threads of the host component, requiring an expensive thread repair insert.

(Note: Formatting constraint check - ensure no raw backticks or code blocks are rendered in final output)

Fastener Extraction Prep Checklist

• Essential Gear and Materials:




  • High-viscosity penetrating fluid (e.g., Kroil, PB Blaster, or 50/50 Acetone/Automatic Transmission Fluid mix).
  • Valve grinding compound, silicon carbide friction gel, or heavy-duty rubber bands.
  • Metric and Imperial Torx driver bits (T15 through T40).
  • Rotary tool fitted with a reinforced fiberglass cutoff wheel.
  • Left-hand (reverse-flute) cobalt drill bits and hardened spiral/straight-flute screw extractors.
  • 16 oz ball-peen hammer and small cold chisel or center punch.
  • Personal protective equipment: ANSI-approved safety glasses and nitrile gloves.

• Mandatory Prerequisites & Technical Standards:




  • Identification of threadlocker type: Low/Medium strength (Blue 242/243) releases mechanically; High strength (Red 271/272) requires localized heat exceeding 250°C (482°F) to breakdown anaerobic resins.
  • Socket depth inspection: Clear all packed dirt, metal shavings, or paint out of the hex socket using a sharp scriber or dental pick to maximize bit engagement depth.

• Projected Benchmarks:




  • Estimated Duration: 15 to 60 minutes depending on fastener degradation and chemical bond presence.
  • Tooling Investment: $15 – $50 for specialty extraction bits and penetrating chemistry.

Mechanical Fastener Extraction Protocol

Step 1: Decontaminate the Hex Socket and Apply Chemical Penetrants

Debris packed into the bottom of a stripped hex socket prevents drive tools from reaching full engagement depth, compounding the stripping effect. Dig out compacted dirt, corrosion scale, or dried threadlocker using a steel scribe or heavy needle. Blow the recess clean using compressed air.

Once clean, flood the fastener head with a high-surfactant penetrating oil. Unlike standard lubricants, penetrating oils feature low surface tension, allowing them to creep up vertical threads via capillary action.

Pro-Tip: Tap the top of the screw head firmly 5 to 10 times with a brass punch and small hammer after applying penetrating fluid. The micro-vibrations fracture crystalline rust bonds and draw the solvent deeper into the threaded interface. Allow 10 to 15 minutes for the chemical to work before applying rotational torque.

Step 2: Utilize Micro-Abrasive Friction Enhancers

If the internal hex walls retain 40% to 50% of their flat geometry, introducing an abrasive medium fills minor tolerance gaps between the wrench and the rounded socket wall.

1. Place a drop of valve grinding compound or specialized anti-cam-out friction gel directly into the stripped hex recess.
2. Insert a brand-new, unworn Allen wrench firmly into the socket. The microscopic silicon carbide particles within the paste wedge into the gaps between the tool and the fastener, restoring grip.
3. Apply strong down-force aligned with the axis of the screw while slowly turning the wrench counter-clockwise.

Warning: Avoid ball-end Allen wrenches for this operation. Ball-end tools concentrate torque on tiny point-contact areas, which will shear away the remaining hex material. Use only crisp, square-cut standard hex keys.

Step 3: Drive an Oversized Torx Bit for Interference Fit

When the internal hex is too rounded for a standard Allen key, converting the drive geometry into a star-shaped Torx configuration offers an excellent non-drill solution. Torx bits feature six lobular contact points that bite directly into the soft corners of a rounded hex recess.

1. Identify the matching Imperial or Metric Allen size, then select a Torx bit slightly larger than the original hex socket (refer to the conversion sizing matrix below).
2. Position the Torx bit squarely over the stripped hex opening.
3. Using a medium ball-peen hammer, drive the Torx bit directly into the socket until it seats fully. The hardened steel flutes of the Torx bit will cut new grooves into the softer metal of the screw head.
4. Attach a socket handle or breaker bar to the Torx bit. Apply steady downward pressure while turning counter-clockwise to break the fastener free.

Pro-Tip: If a Metric Torx bit feels slightly too small or too large, try an Imperial equivalent. For example, if a T25 bit slips and a T30 will not start, an Imperial Torx or equivalent custom oversized drive bit can bridge the fraction-of-a-millimeter gap.

Step 4: Cut a Linear Slot for Flathead Driver Conversion

If the internal socket is completely rounded into a smooth circle, convert the fastener from an internal hex drive to an external slotted drive using a high-speed rotary tool.

1. Equip a rotary tool with a thin, fiberglass-reinforced cutoff wheel.
2. Position the wheel perpendicular to the center of the screw head.
3. Cut a single, straight channel across the full diameter of the screw head. Depth control is critical: cut deep enough to accept a heavy-duty flathead screwdriver bit (roughly 1/3 to 1/2 of the total head thickness), but do not cut so deep that you separate the head from the shank.
4. Insert a thick, wide-bladed flathead driver bit attached to a manual impact driver or a ratchet.
5. Tap the back of the driver handle with a hammer while maintaining strong counter-clockwise pressure to break the initial thread friction.

Warning: When cutting the slot, keep the rotary wheel away from the surrounding metal substrate. If the screw is countersunk flush with a finished housing, shield adjacent surfaces with stainless steel tape or proceed directly to Step 5 to prevent cosmetic or structural surface damage.

Step 5: Execute Reverse Drilling and Extract with Fluted Extractors

When non-destructive and surface conversion methods fail, drilling into the fastener core releases radial tension and allows reverse-flute extractors to grasp the remaining metal shank.

1. Center Punching: Strike the exact center of the stripped Allen socket with a sharp center punch. This creates a starter dimple that prevents the drill bit from walking off-center.
2. Left-Hand Drilling: Chuck a cobalt left-hand drill bit (sized according to the extractor manufacturer specs) into a drill set to reverse (counter-clockwise) rotation.
3. Boring: Apply firm, steady pressure at low rotational speeds (300 to 500 RPM). As the left-hand bit cuts into the metal, heat and counter-clockwise rotational friction frequently catch the fastener and unthread it automatically before extraction tools are even required.
4. Extractor Insertion: If the screw remains frozen after drilling a pilot hole to a depth equal to 1.5 times the drill bit diameter, insert a spiral or straight-fluted screw extractor into the hole.
5. Final Extraction: Tap the extractor gently into the pilot hole with a hammer to set the flutes. Attach a tap wrench or adjustable wrench to the squared end of the extractor and turn counter-clockwise. The reverse-flute geometry bites deeper into the sidewalls as torque increases, unscrewing the stuck fastener cleanly.

Extraction Method Performance & Engineering Matrix

Selecting the appropriate extraction methodology requires balancing the severity of the drive socket deformation against the structural risk to the surrounding housing. The table below outlines operational parameters across common extraction procedures:

Field Extraction Complications & Remedies

The Extractor Bit Snaps Off Inside the Screw Recess

• Root Cause: Excessive side-load torque applied to hardened carbon-steel extractors, which are brittle by design, or an undersized pilot hole.
• Actionable Fix: Hardened tool steel extractors cannot be drilled out with standard high-speed steel (HSS) or cobalt bits. Use a carbide-tipped masonry bit or solid carbide endmill mounted in a rigid die grinder at high RPM to grind out the broken extractor core. Alternatively, use a small punch focused on the outer rim of the broken tool fragment to shatter it into removable chips.

The Hex Socket Strips Completely into a Smooth, Round Hole

• Root Cause: Continued application of torque using worn Allen keys, rounded ball-end drivers, or soft fastener metallurgy.
• Actionable Fix: Skip friction gels and move directly to Step 3 (driving an oversized Torx bit) or Step 4 (cutting a linear slot). If the fastener head diameter is accessible from the sides, clamp locking pliers (Vise-Grip) tightly around the outside perimeter of the screw head perpendicular to the shaft, and turn counter-clockwise.

High-Strength Red Threadlocker Prevents Movement Despite Solid Tool Grip

• Root Cause: Anaerobic methacrylate threadlockers (e.g., Loctite 271) cure into a rigid plastic matrix that holds up to 3,000 PSI of shear force.
• Actionable Fix: Apply localized thermal energy directly to the fastener head using a butane torch, soldering iron, or heat gun until the fastener temperature reaches 250°C (482°F). The heat softens the cured acrylic polymer into a soft gel, dropping the breakout torque to manageable levels. Turn the fastener while it remains hot.

The Screw Head Shears Off, Leaving a Threaded Stud Flush with the Surface

• Root Cause: Tensile strength failure of the fastener shank due to over-torquing, galling, or severe thread seize.
• Actionable Fix: File the exposed surface of the broken stud flat. Center-punch the exact middle of the flush surface, bore a pilot hole using a left-hand drill bit, and utilize a straight-flute extractor. If the stud sits proud of the surface, cut a single slot across the exposed shank using a rotary tool cutoff wheel and unthread it using a flathead screwdriver.

Frequently Asked Questions

Can I use an Imperial Allen wrench on a stripped Metric Allen screw?

Yes, in many cases an Imperial (SAE) hex key is slightly larger than its closest Metric equivalent. For example, if a 5mm Metric socket strips, a 7/32-inch Imperial key (which measures roughly 5.55mm) can sometimes be lightly tapped into the hex recess to create a tight friction fit capable of removing the fastener.

How do I remove a stripped Allen screw without power tools?

You can remove a stripped Allen screw manually by driving an oversized Torx driver into the rounded head using a hammer, applying an abrasive friction gel with a standard hex wrench, or clamping a pair of locking pliers onto the outside rim of the screw head if it sits above the surface.

Does heat help unstick a stripped Allen screw?

Yes, heat expands the metal around the female threads, breaks up corrosion products, and breaks down anaerobic threadlocking compounds. Heating a fastener to roughly 250°C (482°F) degrades threadlockers and makes turning significantly easier, reducing the torque required to free the fastener.

What is the best penetrating oil for frozen socket head screws?

Low-viscosity penetrating oils designed specifically for thread creep, such as Kroil, PB Blaster, or a custom 50/50 mix of acetone and automatic transmission fluid (ATF), perform significantly better than standard multi-purpose lubricants like basic WD-40 multi-use spray.
