How To Turn Maintenance Light Off Toyota: A Complete Manual Reset Guide

Resetting the Toyota maintenance required light involves a specific sequence of ignition cycles and odometer button presses or steering wheel navigation to clear the 5,000-mile service interval timer. This procedure differs significantly between traditional key-start vehicles and modern Smart Key push-button systems, requiring precise synchronization with the vehicle’s Multi-Information Display (MID).

Pre-Reset Diagnostic Inspection and Preparation

Before attempting to clear the maintenance reminder on your Toyota, it is vital to understand that the "MAINT REQD" light is not a malfunction indicator lamp (MIL) or a "Check Engine" light. Instead, it is a distance-based counter programmed into the Engine Control Unit (ECU) to alert the driver at 5,000-mile intervals. While the light can be manually cleared in seconds, doing so without performing the necessary service can lead to accelerated engine wear, oil sludge accumulation, and potential warranty voidance.

Required Materials and Information

• Physical Hardware: Access to the ignition key or the Engine Start/Stop button.
• Interface Knowledge: Identification of the Odometer/Trip (ODO/TRIP) stem on the instrument cluster or the directional keypad on the steering wheel.
• Service Verification: Confirmation that the engine oil has been changed, the oil filter replaced, and fluid levels (coolant, brake fluid, washer fluid) have been inspected.
• Time Requirement: Approximately 60 to 120 seconds.
• Model Specification: Knowledge of your vehicle's model year, as Toyota transitioned from physical button resets to digital menu resets across most lineups between 2015 and 2018.

Comprehensive Step-by-Step Reset Procedures for All Toyota Models

The reset protocol varies based on the vehicle's age and technology package. Follow the specific workflow below that matches your vehicle's dashboard configuration.

Method 1: The Odometer Stem Reset (Standard for Models 2000–2015)

This method applies to older generations of the Camry, Corolla, RAV4, Tacoma, and 4Runner that utilize a physical plastic stem protruding from the instrument cluster.

1. Enter the Vehicle and Close All Doors: Ensure the vehicle is in Park and all doors are shut to prevent chime interference or lighting distractions.
2. Turn the Ignition to the "On" Position: Insert the key and turn it to the second click (Run position). Do not start the engine. For push-button models without a screen menu, press the Start button twice without depressing the brake pedal.
3. Toggle to the Required Reading: Press the ODO/TRIP stem repeatedly until the display shows "Trip A" or, on some specific older models (like the 2004-2009 Prius), the "ODO" reading.
4. Power Down the Vehicle: Turn the key back to the "Off" or "Lock" position.
5. Initiate the Reset Sequence: Press and hold the ODO/TRIP stem down firmly. While holding the button, turn the ignition back to the "On" (Run) position without starting the engine.
6. Monitor the Countdown: Observe the odometer display. You will see a series of five or six dashes (------) appear and begin to disappear one by one, or a set of zeros will flash.
7. Finalize the Process: Once the dashes vanish and the original mileage returns to the screen, release the stem. Turn the ignition off, then start the engine to verify the "MAINT REQD" light has been extinguished.

Pro-Tip: If the light remains on, the most common error is holding the button while on "Trip B" instead of "Trip A." Ensure the display is exactly on the correct setting before turning the key off in Step 4.

Method 2: Multi-Information Display (MID) Reset (Standard for Models 2016–Present)

Modern Toyotas equipped with a color screen between the tachometer and speedometer use the steering wheel controls to navigate a digital menu.

1. Activate the Electronics: Press the Engine Start/Stop button twice without touching the brake, or turn the key to the "On" position.
2. Access the Settings Menu: Use the directional arrows (usually on the right or left side of the steering wheel) to scroll through the top-level icons until you reach the "Gear" icon (Settings).
3. Navigate to Vehicle Settings: Scroll down through the settings list until you highlight "Vehicle Settings." Press and hold the "OK" button or the center "Dot" button.
4. Select Maintenance Reset: Look for an option labeled "Scheduled Maintenance" or "Oil Maintenance." In some newer models, you may need to navigate through a sub-menu labeled "Maintenance Reset."
5. Confirm the Action: The screen will ask, "Reset Data?" or "Reset Scheduled Maintenance?" Select "Yes" and press the "OK" button.
6. Verification: A message stating "Reset Complete" will appear. Turn the vehicle off and restart to confirm the light is gone.

Warning: Do not confuse "Scheduled Maintenance" with "Tire Pressure Reset." If you accidentally reset the TPMS (Tire Pressure Monitoring System) while the tires are under-inflated, the car will calibrate to the wrong pressure, leading to potential safety hazards.

Method 3: The Prius and Hybrid Specific Protocol

Some Toyota hybrids, particularly the Prius Gen 3 and Gen 4, require a specific variation of the ODO method because of how the Power button cycles.

1. Power On: Press the Power button twice to enter "Ignition On" mode.
2. Trip Selection: Set the display to "Trip A" using the "Trip" button on the steering wheel.
3. Power Off: Turn the vehicle completely off.

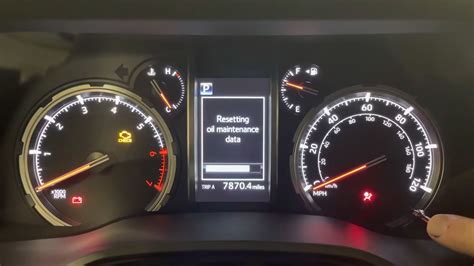

4. The "Hold and Power" Sequence: While holding the "MPH/KM" button or the "Trip" button (depending on the specific year), press the Power button twice. Keep holding the button until the screen displays "Resetting Oil Maintenance Data."

Technical Specifications and Model Comparison Table

Toyota utilizes different software logic for maintenance reminders depending on whether the vehicle uses conventional, semi-synthetic, or full synthetic oil. This table outlines the typical factory-set parameters and the primary reset interface used.

Troubleshooting Common Maintenance Light Reset Failures

If the maintenance light refuses to turn off after following the steps above, one of the following scenarios is likely the cause.

Scenario 1: Incorrect Ignition State

• Root Cause: The user is attempting to reset the light while the engine is running.
• Actionable Fix: The ECU will not permit a maintenance reset while the engine is actively running or if the vehicle is in "Accessory" mode (one press of the button). You must be in the "Ignition On" mode (two presses of the button or second key click) where all dash lights are illuminated but the engine is silent.

Scenario 2: Software "Glitch" or Button Latency

• Root Cause: The ODO stem or steering wheel buttons are not registering the "hold" command due to debris or worn contacts.
• Actionable Fix: Ensure you are applying firm, consistent pressure. For steering wheel buttons, ensure there is no "input lag" by waiting three seconds after the screen loads before pressing "OK." If using the ODO stem, ensure the plastic stem isn't caught on the edge of the instrument cluster housing.

Scenario 3: Secondary "Maintenance Required" Categories

• Root Cause: Newer Toyotas (2020+) have separate reminders for "Oil Maintenance" and "Scheduled Maintenance."
• Actionable Fix: Navigate to the Vehicle Settings menu and check both categories. If you reset "Oil Maintenance" but the 5,000-mile "Scheduled Maintenance" (tire rotation/inspection) remains active, the light will stay on. Reset both categories to ensure a clean dashboard.

Scenario 4: The Check Engine Light Confusion

• Root Cause: The driver is attempting to clear a Malfunction Indicator Lamp (MIL) using maintenance reset procedures.
• Actionable Fix: If the light is a picture of an engine or says "Check Engine" rather than "MAINT REQD," these steps will not work. You must use an OBD-II scanner to read the trouble codes (e.g., P0420, P0300) and repair the underlying mechanical or sensor issue.

Frequently Asked Questions

Does the Toyota maintenance light mean I am low on oil?

No, the "MAINT REQD" light is purely a mileage counter and does not monitor oil level, oil pressure, or oil quality. You should manually check your dipstick to ensure the engine has sufficient lubrication, as a car can be low on oil without the maintenance light being active.

Why does my maintenance light flash for a few seconds when I start the car?

Toyota's system provides a 500-mile warning period. The light will flash for several seconds upon startup starting at 4,500 miles since the last reset. Once you hit the 5,000-mile mark, the light will remain illuminated constantly until it is manually reset.

Can I change the 5,000-mile interval to 10,000 miles for synthetic oil?

On most Toyota models, the "MAINT REQD" light is hardcoded to a 5,000-mile interval. Even if your vehicle uses 0W-20 synthetic oil rated for 10,000 miles, the light will still come on every 5,000 miles to remind you to rotate your tires and inspect brake components.

Will resetting the maintenance light void my Toyota warranty?

Simply resetting the light does not void your warranty. However, failing to actually perform the required maintenance (such as oil changes) and not keeping documentation of those services can lead to the denial of warranty claims if the engine suffers a lubrication-related failure.

What is the difference between "Maintenance Required" and "Oil Pressure Low"?

The "MAINT REQD" light is a routine reminder. The "Oil Pressure Low" light (usually a red oil can symbol) is a critical warning. If the red oil can light appears, you must pull over and shut off the engine immediately to prevent catastrophic engine failure.
