How To Tune Subs: The Professional Guide To Perfect Bass Calibration

Tuning subwoofers requires setting the low-pass filter to integrate with your main speakers, matching the amplifier gain to your source unit's clean output voltage, and aligning the phase to eliminate acoustic cancellation. By using a digital multimeter or oscilloscope to target exact AC voltage based on Ohm's law, you can achieve clean, distortion-free bass that matches your system's limits without clipping.

Pre-Tuning Preparation and Calibration Equipment Checklist

Achieving deep, clear, and impactful low-frequency reproduction requires moving beyond subjective listening and relying on precise audio measurements. Incorrectly tuned subwoofers run the risk of thermal failure from clipped signals, mechanical damage due to over-excursion, and acoustic cancellation that leaves your system sounding thin and hollow. Before adjusting any dials, you must gather the appropriate diagnostic tools and calculate the electrical limits of your hardware.

This calibration protocol applies to car audio systems, home theater systems, and active studio monitors. The goal is to align your source unit (head unit or AV receiver), your amplifier, the physical limitations of your subwoofer enclosure, and the acoustic space of your listening environment.

Essential Gear and Diagnostic Tools

• Digital Multimeter (DMM): Capable of measuring AC Voltage (VAC) down to tenths of a volt.
• Oscilloscope or Distortion Detector: Useful for visually identifying signal clipping, though a DMM is a highly effective alternative.
• Test Tone Tracks: High-quality, uncompressed sine wave tracks. You will need a 40 Hz tone recorded at 0 dB (for maximum output headroom) and -5 dB or -10 dB (for real-world music dynamic headroom).
• Small Flathead Screwdriver: For precision adjustments of potentiometer dials on the amplifier.
• Hearing Protection: High-frequency test tones can damage your hearing; keep your ears protected during calibration.

Mandatory Prerequisite Knowledge and Standards

• Subwoofer RMS Power Rating: Locate the continuous RMS power limit of your subwoofer, not the peak or maximum power rating.
• Amplifier RMS Power Output: Identify the RMS power output of your amplifier at the specific ohm load your subwoofers are wired to.
• Wiring Impedance (Ohms): Confirm whether your subwoofers are wired in series, parallel, or series-parallel to identify the exact final nominal impedance (e.g., 1 Ohm, 2 Ohms, 4 Ohms) presented to the amplifier terminals.
• Ohm's Law Formula: Target AC Voltage = Square Root of (RMS Watts multiplied by Nominal Impedance).

Estimated Budget and Duration Benchmarks

• Required Budget: $20 to $150 depending on whether you already own a digital multimeter or choose to invest in an oscilloscope or handheld distortion analyzer.
• Required Duration: 45 to 90 minutes of dedicated calibration time.

The Step-by-Step Subwoofer Calibration Protocol

Step 1: Isolate the Subwoofer and Zero the Amplifier Controls

To tune your subwoofers safely, you must isolate the low-frequency signal path. If you tune with your full-range speakers playing test tones, you risk damaging your ears and burning out your mid-range drivers and tweeters.

Disconnect the speaker wires of the subwoofer from the amplifier output terminals. This prevents the subwoofer from emitting loud, continuous sine waves during the voltage testing process and protects the driver from thermal overload if a mistake is made.

Turn off all active processing on your head unit or audio processor. This includes turning off loudness controls, setting bass boost to zero, setting equalizer bands to flat (0 dB), and disabling any bass restoration processors.

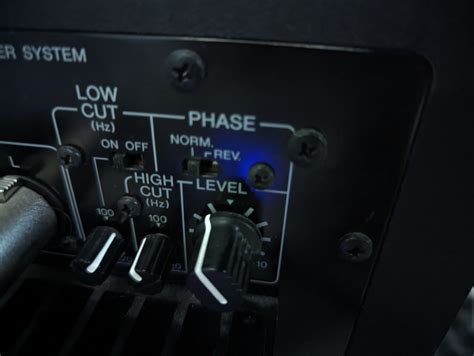

Locate the control panel on your subwoofer amplifier. Turn the Gain (sometimes labeled "Level" or "Sensitivity") dial completely down to its minimum position. Turn the Bass Boost dial to 0 dB. Turn the Subsonic/Infrasonic filter to its lowest setting, and turn the Low-Pass Filter (LPF) to its maximum setting to ensure it does not interfere with the initial voltage readings.

Step 2: Identify the Source Unit Clean Output Threshold

Your amplifier cannot fix a distorted signal coming from your head unit; it will only amplify that distortion. You must find the maximum volume level your head unit can output before its internal digital-to-analog converter (DAC) or pre-amp stage begins to clip.

If you have an oscilloscope, connect the probes to the RCA pre-outs of your head unit. Play a 40 Hz sine wave at 0 dB. Turn the volume up until the top and bottom of the sine wave begin to flatten out, then back the volume down until the wave is perfectly round. This is your maximum clean volume.

If you do not have an oscilloscope or distortion detector, use the standard industry benchmark. Most high-quality aftermarket head units clip at approximately 85% to 90% of their maximum volume scale. For example, if your head unit's volume scale goes up to 40, your maximum clean volume is 35. If your volume scale goes to 100, your limit is 85. Mark this number; this is the absolute maximum volume level you will ever use during playback.

Step 3: Calculate the Target AC Voltage Limit

To set your gain precisely without an oscilloscope, you must calculate the exact target AC voltage your amplifier needs to output to deliver its rated RMS power to your subwoofers. This calculation utilizes Ohm's Law and prevents the amplifier from clipping.

Identify the RMS power of your amplifier at your current wiring load. For example, if your amplifier outputs 500 Watts RMS at 2 Ohms, use those two figures.

Multiply the RMS Watts by the nominal impedance in Ohms. Using our example: 500 multiplied by 2 equals 1,000.

Calculate the square root of that product. The square root of 1,000 is approximately 31.62.

Your target AC voltage is 31.62 Volts. Write this number down. When your amplifier reaches 31.62 Volts AC at your maximum clean volume, it is delivering exactly 500 Watts of unclipped power.

Step 4: Calibrate the Amplifier Gain to Target Voltage

With the subwoofer still disconnected, prepare to match your amplifier's input sensitivity to your head unit's pre-amp output voltage.

Insert the black probe of your digital multimeter into the negative speaker terminal on your amplifier, and the red probe into the positive speaker terminal. Set your digital multimeter to read AC Voltage (marked as VAC or V with a wavy line).

Turn on your audio system and set the volume to the clean maximum level identified in Step 2.

Play your chosen 40 Hz test tone track. If you are tuning for maximum safety, use a 0 dB test tone. If you are tuning for real-world music performance and want to utilize the full dynamic potential of your amplifier, use a -5 dB test tone.

Observe the voltage reading on your multimeter. It will likely start very low, around 1 to 5 Volts. Slowly turn the Gain dial on your amplifier clockwise. Watch the multimeter display increase. Stop turning the dial the exact moment the voltage reaches your calculated target voltage (e.g., 31.62 Volts).

Once set, turn the volume of your head unit down to zero, pause the test tone, and power off the system. Reconnect your subwoofer speaker wires to the amplifier terminals.

Warning: Never use the gain dial as a volume control. If you turn the gain past your calculated target voltage, your amplifier will enter clipping, forcing a flat-topped DC wave into your subwoofers which can quickly burn out the voice coils.

Step 5: Adjust the Crossover and Subsonic Filters

Now that your power limits are safely locked in, you must configure the frequency filters to ensure your subwoofers only play the low-frequency notes they are physically designed to reproduce.

Set the Low-Pass Filter (LPF) to restrict high frequencies from entering your subwoofer. The standard industry benchmark for a clean acoustic transition is 80 Hz. If you are using a 24 dB/octave Linkwitz-Riley crossover slope, setting the LPF to 80 Hz allows your subwoofer to play everything below 80 Hz while rolling off higher frequencies cleanly so they do not overlap with your main cabin speakers. If your main cabin speakers are small and lack mid-bass, you may raise this to 100 Hz. If you have large, capable mid-bass drivers, you can lower this to 60 Hz.

Adjust the Subsonic Filter (also called an Infrasonic Filter). This filter acts as a high-pass filter for the lowest frequencies, preventing the subwoofer from attempting to play notes that are too low for its enclosure.

If your subwoofers are in a sealed enclosure, you can leave the subsonic filter off or set it to its lowest position (around 15 Hz to 20 Hz), as the trapped air cushion inside a sealed box naturally controls the mechanical movement of the cone.

If your subwoofers are in a ported (vented) enclosure, you must use a subsonic filter. Ported enclosures lose all control over the subwoofer cone at frequencies below the physical tuning frequency of the port, causing the woofer to enter a state of free-air "unloaded" excursion. Set your subsonic filter to approximately 3 Hz to 5 Hz below the physical tuning frequency of your box. For example, if your ported box is tuned to 33 Hz, set your subsonic filter to 28 Hz or 30 Hz.

Pro-Tip: If your amplifier's filter dials do not have detailed numerical markings, play a test tone at your desired crossover frequency (e.g., 80 Hz) and slowly turn the LPF dial down until you see the output voltage on your multimeter begin to drop slightly. This indicates you have hit the crossover point.

Step 6: Phase Alignment and Acoustic Integration

Physical room acoustics or cabin dimensions can cause sound waves from your subwoofers to arrive at your ears out of sync with your main speakers, resulting in thin, weak bass.

Sit in your primary listening position and play a familiar music track with a fast, continuous bassline.

Have a partner toggle the Phase switch on your amplifier or digital sound processor (DSP) between 0 degrees and 180 degrees. If your system does not have a phase switch, you can manually reverse the positive and negative speaker wires on the subwoofer terminals to flip the phase 180 degrees.

Listen closely to the physical transition point where the bass meets the mid-bass. Select the phase setting that makes the bass sound louder, punchier, and more cohesive. When aligned correctly, the bass should sound like it is originating from the front speakers on your dashboard or center stage, rather than firing from behind you or from the trunk.

Subwoofer Calibration and Acoustic Specification Reference

The following reference matrix outlines standard configurations, equations, and crossover behaviors for tuning subwoofers. Use these values as baseline targets when customizing your audio setup.

Subwoofer Performance Anomalies and Diagnostic Solutions

Scenario 1: Thin, Hollow Bass That Disappears inside the Cabin

The subwoofer moves back and forth, and you can see physical excursion, but the actual bass output inside the listening area feels incredibly weak, hollow, and lacking in impact, especially in the 60 Hz to 80 Hz range.

• Root Cause: Phase cancellation. The acoustic waves exiting your subwoofer are arriving at your ears 180 degrees out of sync with the waves originating from your main cabin speakers. As a result, the positive pressure wave of the cabin speaker collides with the negative pressure wave of the subwoofer, completely canceling out the sound.
• Actionable Fix: Toggle the phase switch on your amplifier or DSP from 0 to 180 degrees. If your amplifier lacks this switch, power down the system and reverse the positive and negative speaker wire connections on either the amplifier output terminals or the subwoofer terminals.

Scenario 2: Subwoofer Emits a Burning Odor during Extended Playback

After playing music at high volume for more than a few minutes, you notice a hot, chemical adhesive smell coming from the subwoofer enclosure ports, even though the amplifier's rated RMS output matches the subwoofer's RMS rating.

• Root Cause: Amplifier clipping and thermal accumulation. The amplifier's input gain is set too high, or the head unit is being turned past its clean volume threshold. This forces the amplifier to output clipped square waves. The flat tops of these square waves hold the subwoofer voice coil in a static state of high current flow without physical movement, causing rapid heat buildup and melting the voice coil adhesives.
• Actionable Fix: Immediately turn down the volume. Recalibrate your amplifier gain using a digital multimeter or an oscilloscope with a 40 Hz test tone recorded at 0 dB. Ensure that you never exceed the calculated target AC voltage, and turn down any digital bass boosts or equalizer settings on your head unit.

Scenario 3: Subwoofer Makes a Metallic Clacking Sound on Ultra-Low Bass Notes

During tracks with deep, low-frequency synthetic bass drops, the subwoofer makes a loud, mechanical hitting or clacking sound, followed by erratic cone movement.

• Root Cause: Mechanical bottoming out due to lack of a subsonic filter. The subwoofer is mounted in a ported enclosure, and the music is playing frequencies below the box's tuning frequency. Without the resistance of an air cushion, the driver goes into free-air operation, causing the voice coil former to physically strike the backplate of the motor structure.
• Actionable Fix: Enable the subsonic filter on your amplifier. Find your enclosure's physical port tuning frequency and set the subsonic filter dial to approximately 3 Hz to 5 Hz below that tuning frequency. If the tuning frequency is unknown, set the subsonic filter to a safe default of 30 Hz.

Scenario 4: Bass Sounds Muddy, Sluggish, and Distracted

The low-frequency notes feel muddy, slow, and bleed heavily into the vocals, making it easy for any listener to point directly to the subwoofer's physical location in the room or trunk.

• Root Cause: Low-Pass Filter (LPF) set too high, combined with an inadequate crossover slope. If the LPF is set above 100 Hz, or if you are using a shallow 6 dB/octave crossover slope, the subwoofer is playing directional mid-range frequencies that should be handled exclusively by your main speakers.
• Actionable Fix: Lower your LPF setting to 80 Hz. If you are using an active crossover on a head unit or DSP, change the crossover slope to 24 dB/octave Linkwitz-Riley. This creates a steep volume drop-off for any frequencies above 80 Hz, keeping the subwoofer's output completely non-directional and tightly integrated.

Frequently Asked Questions

What is the best crossover frequency for tuning subwoofers?

The industry standard crossover frequency for integrating subwoofers is 80 Hz. Setting your low-pass filter to 80 Hz prevents your subwoofer from reproducing directional mid-bass frequencies that human ears can easily localize, keeping the bass stage sounding cohesive and centered in your listening space.

Can I tune a subwoofer by ear without tools?

Tuning by ear is highly discouraged because the human ear cannot accurately detect subtle signal clipping until it reaches harmful levels of harmonic distortion. Using a digital multimeter or an oscilloscope ensures your amplifier gain is matched to precise mathematical voltage limits, preventing thermal damage to your voice coils.

What does a subsonic filter do, and when should I use it?

A subsonic filter acts as a high-pass filter that removes ultra-low, inaudible frequencies (usually below 20 Hz to 30 Hz) that human ears cannot hear but still cause massive mechanical strain. You must use a subsonic filter if your subwoofer is in a ported enclosure to prevent the woofer from over-excursion and bottoming out.

Why does my subwoofer sound muddy instead of punchy?

Muddy bass is typically caused by a low-pass filter that is set too high (above 100 Hz), allowing vocal and mid-range frequencies to bleed into the subwoofer. It can also be caused by phase cancellation or mounting a subwoofer in an oversized, poorly constructed ported enclosure that lacks mechanical dampening.

Does setting gain to maximum damage the subwoofer?

Yes, setting your amplifier's gain control to maximum will almost certainly damage your subwoofer. The gain control is not a volume knob; it is an input sensitivity adjustment designed to match the signal voltage from your head unit. Raising it to maximum forces the amplifier to clip and send destructive DC current to your voice coils.

Elevate Your Audio Performance to Studio Quality

Properly calibrating your low-frequency output is the single most important step to unlocking the true potential of your sound system. By grounding your crossover points and amplifier gains in precise electrical measurements, you will experience pristine sound stage integration and enjoy reliable performance for years to come.
