How To Test Tractor Protection Valve: Complete Commercial Vehicle Diagnostic Guide
The tractor protection valve (TPV) is a critical dual-function pneumatic safety component on commercial air-brake-equipped vehicles that automatically isolates tractor air supplies if a trailer breakaway occurs. Testing this valve requires monitoring dash control pop-out pressures, checking trailer supply line exhaustion thresholds, and verifying automated emergency pop-offs between 20 PSI and 45 PSI.
Pre-Operation & Equipment Checklist
Testing a tractor protection valve safely requires an understanding of Federal Motor Carrier Safety Administration (FMCSA) and Department of Transportation (DOT) air brake standards. The tractor protection valve controls the flow of air to the trailer supply and service lines, preventing total air loss in the event of a trailer separation or catastrophic line rupture.
- Essential gear, tools, and materials:
- Calibrated dual-needle air pressure gauge on the vehicle dashboard
- Auxiliary shop air supply line or standard tractor compressor system
- Wheel chocks to prevent unintended vehicle movement
- Stopwatch or electronic timer for pressure drop leak-rate testing
- Soap-and-water bubble solution or electronic ultrasonic leak detector
- Mandatory prerequisite knowledge and standards:
- Familiarity with FMVSS 121 air brake system requirements
- Understanding of normal governor cut-in (approx. 100-105 PSI) and cut-out (approx. 120-132 PSI) pressures
- Verification that parking brakes are mechanical spring brakes integrated with the service system
- Estimated budget and duration benchmarks:
- Time investment: 15 to 25 minutes for a complete diagnostic cycle
- Financial cost: Minimal for manual testing tools; standard shop rates apply if performed by a certified technician
Step-by-Step Tractor Protection Valve Testing Procedure
Step 1: System Pressurization and Baseline Check
- Chock the vehicle wheels securely to ensure the tractor cannot move during testing. Drain all air tanks completely to verify low-pressure warning switch operation, then start the engine and allow the compressor to fully charge the primary and secondary air reservoirs until the governor cuts out between 120 PSI and 132 PSI.
- Push in both the dash-mounted parking brake control knob (yellow diamond) and the trailer air supply control knob (red octagonal) to supply air to the tractor protection valve and trailer couplings.
- Observe the dash gauges to confirm system stabilization and verify that air is successfully routed through the tractor protection valve to the service and supply gladhands at the rear of the tractor.
Pro-Tip: Always verify that your shop compressor or vehicle compressor has completely filled the wet tank and dry tanks before initiating pneumatic tests to prevent false low-pressure readings caused by restricted air volume.
Step 2: Testing Trailer Supply Line Exhaustion
- With the system fully charged and both dash knobs pushed in, pull the red trailer air supply knob out to exhaust the trailer supply line.
- Listen closely at the tractor protection valve and the rear emergency gladhand (supply side) to verify an immediate exhaust of air.
- Confirm that the tractor service air system remains charged and that the yellow parking brake knob stays in the pushed-in position, proving that the tractor protection valve has successfully isolated the tractor service brakes from the exhausted trailer supply line.
Warning: Never disconnect trailer gladhands while the system is pressurized without first exhausting the lines, as whipping hoses can cause severe impact injuries.
Step 3: Testing Automatic Pop-Out Thresholds
- With both the yellow and red dash control knobs pushed in, manually bleed down system air pressure by repeatedly depressing and releasing the foot brake pedal, or by opening a manual drain valve on the primary reservoir.
- Closely monitor the dashboard air pressure gauges as system pressure drops.
- Observe the exact pressure at which the red trailer air supply control knob automatically pops out to the exhaust position. This automated pop-out must occur within the specified regulatory range of 20 PSI to 45 PSI. If the valve fails to pop out within this window, the tractor protection valve internal check valves or the dash control module are defective and require immediate replacement.
Step 4: Checking Leakage Rates at the Valve Body
- Charge the air brake system back to maximum operating pressure (120-132 PSI) with the engine turned off and both dash control knobs pushed in.
- Apply a generous amount of soap-and-water bubble solution directly to the exterior body ports, exhaust port, and mounting fittings of the tractor protection valve.
- Observe the valve for a continuous stream of growing bubbles for a minimum of one minute. A minor, intermittent bubble may be acceptable depending on manufacturer specifications, but steady bubbling or audible hissing indicates internal seal degradation, worn O-rings, or a ruptured diaphragm within the tractor protection valve assembly.

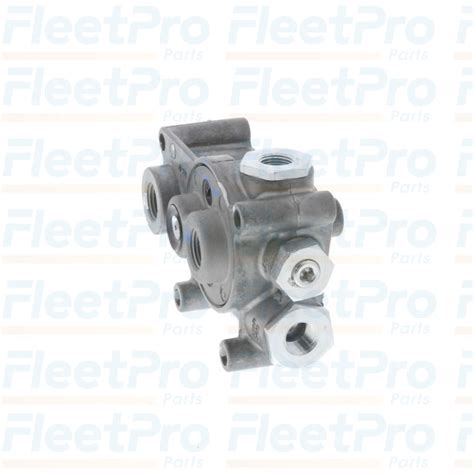

F224676 | TP-5 TRACTOR PROTECTION VALVE | Replace 288605 | 20QE3234 ...
Tractor Protection Valve Technical Parameters & Comparison
| Parameter / Condition | Normal Operating Threshold | Out-of-Service / Failure Limit | Corrective Action |
|---|---|---|---|
| Governor Cut-Out Pressure | 120 PSI to 132 PSI | Below 100 PSI or above 140 PSI | Adjust or replace air compressor governor |
| Trailer Supply Pop-Out Range | 20 PSI to 45 PSI | Below 20 PSI or above 45 PSI | Replace tractor protection valve / dash valve |
| Static Air Leakage Rate | Less than 2 PSI drop per minute | Greater than 3 PSI drop per minute | Locate leak with soap solution; replace seals or valve |
| Service-to-Supply Check Valve | Absolute reverse-flow prevention | Air leaking backward into supply port | Rebuild or replace tractor protection valve assembly |
Common Tractor Protection Valve Failures and Field Fixes
Failure Scenario: Red dash control knob fails to pop out automatically when system pressure drops below 20 PSI.
- Root Cause: Internal return spring fatigue, excessive gum and varnish buildup inside the valve body, or a stuck piston shuttle.
- Actionable Fix: Disassemble the pneumatic control lines, clean any particulate contamination, and replace the complete tractor protection valve unit if manual cleaning does not restore spring-loaded pop-out functionality.
Failure Scenario: Air leaks continuously out of the tractor protection valve exhaust port when the trailer supply knob is pulled.
- Root Cause: Damaged internal exhaust valve seat, cracked rubber o-ring seals, or excessive moisture/oil contamination from unmaintained air brake dryers.
- Actionable Fix: Inspect the vehicle air dryer desiccant cartridge for oil saturation, service the air system purge valve, and install a new tractor protection valve cartridge or assembly.
Failure Scenario: Slow air charge times or delayed trailer brake release when pushing the red supply knob.
- Root Cause: Restricted internal supply passages, blocked inlet filters, or a failing check valve within the multi-function tractor protection valve body.
- Actionable Fix: Perform a complete pressure drop diagnostic to isolate the restriction, check supply lines for kinking or internal collapse, and replace the tractor protection valve.
Frequently Asked Questions
What is the primary function of a tractor protection valve?
The tractor protection valve acts as an automated safety barrier between the tractor and trailer air brake systems. If a trailer breaks away or experiences a major air line rupture, the valve automatically shuts off the air supply from the tractor to preserve enough air pressure in the tractor to safely stop the vehicle.
What causes a tractor protection valve to leak air?
Air leaks typically stem from degraded internal rubber O-rings, worn check valve seats, or oil contamination traveling from the compressor through an overdue air brake dryer. Regular draining of air reservoirs and replacing desiccant cartridges prevents premature valve degradation.
Why won't my red trailer supply knob stay pushed in?
If the red knob pops right back out when you push it, it usually means system air pressure is below 20 to 45 PSI, or there is a massive downstream leak in the trailer air system. If the system is fully charged and the knob still pops out, the tractor protection valve or dash control valve has an internal failure.
How often should a tractor protection valve be replaced?
Tractor protection valves do not have a fixed calendar replacement interval, but they should be inspected during every annual DOT commercial vehicle inspection. Valves typically last several hundred thousand miles, provided the air system is kept free of moisture, carbon, and oil blow-by.
Can a tractor protection valve be rebuilt in the field?
While repair kits containing new O-rings, springs, and diaphragms are available for certain heavy-duty valve models, safety regulations and liability concerns often dictate complete unit replacement. Swapping the entire valve ensures calibrated spring rates and verified internal seating integrity.
