How To Test A Start Capacitor: The Definitive Guide To Diagnostic Accuracy And Electrical Safety

To test a start capacitor effectively, you must first isolate power and safely discharge the stored electrical energy using an insulated resistor or screwdriver to prevent high-voltage shock. Using a digital multimeter set to the capacitance (µF) setting, measure the terminals; a healthy capacitor will register within ±10% of its labeled microfarad rating, while a reading significantly lower, higher, or at "OL" indicates a failed component that must be replaced to restore motor function.

Critical Pre-Diagnostic Planning and Safety Equipment

Testing a start capacitor is a fundamental skill for HVAC technicians, well pump specialists, and appliance repair professionals. Before engaging with any electrical component, it is vital to understand that a start capacitor’s primary function is to provide the high-intensity torque necessary to initiate motor rotation. Because these components store significant electrical charges even after the power supply has been disconnected, the preparation phase focuses heavily on safety protocols and precision instrumentation.

The following equipment and environmental conditions are mandatory for a successful diagnostic procedure:

• Digital Multimeter with Capacitance Mode: Your multimeter must feature a dedicated microfarad (µF) or "—|(—" setting. Standard resistance-only meters can provide a rudimentary "pass/fail" check, but they cannot verify if a capacitor is within its specific engineering tolerances.
• Insulated Discharge Tool: A 20,000-ohm, 5-watt resistor is the professional standard for discharging capacitors safely. In emergency field scenarios, a well-insulated screwdriver may be used, though this can cause "pitting" on the terminals.
• Personal Protective Equipment (PPE): Utilize Class E rated insulated gloves and safety goggles to protect against potential arc flashes or chemical leaks from a ruptured capacitor casing.
• Documentation and Labeling: A permanent marker or masking tape is necessary to label wires before disconnection, ensuring the phase-shift circuit is reassembled correctly.
• Time and Environment: Allow at least 15 to 20 minutes for the procedure. Ensure the workspace is dry, as moisture can create unintended conductive paths during high-voltage testing.

The Systematic Diagnostic Workflow for Start Capacitors

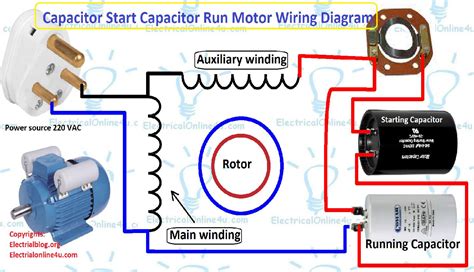

Following a standardized sequence ensures both the safety of the technician and the accuracy of the data collected. A start capacitor differs from a run capacitor in that it is typically housed in a black plastic (Bakelite) case and is designed for intermittent duty only. If left in the circuit for more than a few seconds, it will overheat and fail.

Step 1: Power Isolation and Verification

Before opening any service panel, you must disconnect the main power source. For HVAC systems, this involves pulling the "disconnect" block near the outdoor condenser or switching off the dedicated breaker. Once the panel is open, use a non-contact voltage tester or your multimeter on the AC Voltage setting to verify that no current is flowing to the capacitor terminals. Never assume a breaker is functioning correctly without physical verification.

Step 2: Safe Discharge of Stored Energy

Start capacitors can hold a lethal charge for hours or even days. To discharge, place your insulated resistor across the "HERM" or "START" terminal and the "COMMON" terminal. If using a screwdriver, bridge the two terminals with the metal shaft while ensuring your hand only touches the insulated handle. You may hear a small "pop" or see a spark; this is the stored energy dissipating. Hold the bridge for at least five seconds to ensure the voltage has dropped to a safe level (under 10V).

Step 3: Visual and Physical Inspection

Before applying a meter, examine the physical state of the capacitor. Start capacitors are prone to "venting" or "mushrooming."

1. Check the top of the capacitor (the terminal side) for bulging or swelling. A flat top is normal; a convex or domed top indicates internal gas pressure from failure.
2. Look for "oozing" or oily residue around the terminals, which signifies a breach in the dielectric material.
3. Inspect the terminals for signs of overheating, such as melted wire insulation or discoloration of the metal.
4. Check for a "bleeder resistor." Many start capacitors have a resistor soldered across the terminals. If one is present, you must desolder one side of it to get an accurate microfarad reading, as the resistor will interfere with the meter’s ability to measure capacitance.

Step 4: Measuring Capacitance (The µF Test)

This is the most critical step in determining if the component meets manufacturer specifications.

1. Disconnect at least one of the wires from the capacitor terminals to isolate it from the rest of the motor circuit.
2. Turn your digital multimeter to the Capacitance setting (µF).
3. Place the red lead on one terminal and the black lead on the other. Start capacitors are non-polarized, so the orientation of the leads does not affect the reading.
4. Wait for the meter to stabilize. Digital meters send a small current into the capacitor and measure the time it takes to charge to determine the capacitance.
5. Compare the reading on the screen to the rating printed on the capacitor body (e.g., "135-162 MFD").

Pro-Tip: If the reading is within the specified range (e.g., 145 µF for a 135-162 µF rated part), the capacitor is functional. If it reads significantly below the lower number, the motor will struggle to start, causing high amperage draw and potential motor burnout.

Step 5: Continuity and Resistance Testing (Secondary Method)

If your multimeter lacks a capacitance setting, you can perform a basic "Go/No-Go" test using the Ohms (Ω) setting.

1. Set the meter to the highest Ohm range available.
2. Touch the leads to the terminals. The display should show a low resistance that rapidly climbs toward infinity (OL).
3. Switch the leads. The meter should again start low and climb toward infinity.
4. If the meter stays at a very low resistance (close to zero), the capacitor is shorted. If it stays at "OL" immediately without climbing, the capacitor is "open" or "dried out." While this doesn't tell you the health of the µF rating, it confirms a total failure.

Capacitance Thresholds and Technical Specifications

To accurately diagnose a start capacitor, you must understand the relationship between the labeled rating and the acceptable field measurements. Start capacitors have much higher microfarad ratings than run capacitors, typically ranging from 50 µF to over 1,200 µF, depending on the horsepower of the motor.

Common Failure Scenarios and Field Resolutions

Identifying the symptoms of a failing start capacitor often happens before you even open the unit. Recognizing these real-world failure patterns allows for a faster diagnostic path.

• Scenario: The Motor "Hums" but Fails to Turn


  • Root Cause: The capacitor has lost its ability to create a phase shift, providing zero starting torque. The motor is essentially "locked" in an electromagnetic struggle.
  • Actionable Fix: Perform the µF test. If the reading is below the minimum threshold, replace the capacitor immediately. Do not keep power applied to a humming motor, as this will trip the thermal overload or burn the windings.
• Scenario: Frequent Circuit Breaker Tripping on Startup


  • Root Cause: An internal short circuit within the capacitor layers (the dielectric has broken down), causing an immediate amperage spike that exceeds the breaker's limit.
  • Actionable Fix: Use the Ohms setting to check for continuity. If the meter shows 0 ohms between terminals, the unit is shorted. Replace the capacitor and check the potential relay to ensure it isn't stuck closed.
• Scenario: Intermittent Starting in Cold Weather


  • Root Cause: Capacitance naturally drops as temperature decreases. If a capacitor is already at the "low end" of its tolerance (e.g., 136 µF on a 135-162 µF rating), cold weather can push it below the threshold needed to break the motor's static friction.
  • Actionable Fix: Replace the aging capacitor with a new unit that sits at the higher end of the specified range to provide a "buffer" for temperature fluctuations.

Frequently Asked Questions

Does the orientation of the wires matter on a start capacitor?

No, start capacitors used in AC motor circuits are non-polarized. You can attach either wire to either terminal without affecting the performance or safety of the component, provided the wires are connected to the correct points in the overall circuit (usually the "Start" and "Common" or via a relay).

Can I replace a start capacitor with one that has a higher voltage rating?

Yes, you can always use a capacitor with a higher voltage rating than the original (e.g., replacing a 250V unit with a 330V unit). However, you must never use a capacitor with a lower voltage rating, as it will likely explode or fail prematurely when subjected to the circuit's peak voltages.

Why do start capacitors have a resistor soldered across the terminals?

This is a bleeder resistor, typically valued between 15,000 and 20,000 ohms. Its purpose is to slowly discharge the capacitor once it is removed from the circuit by the potential relay, preventing arcing across the relay contacts and extending the life of the system.

How long should a start capacitor last?

Under normal conditions, a start capacitor should last 5 to 10 years. However, if the motor's starting relay fails and keeps the start capacitor in the circuit for too long, it can fail in seconds. Frequent "short-cycling" of the motor also significantly reduces its lifespan due to heat buildup.

Professional Electrical Maintenance and Support

If your diagnostic tests reveal a failed start capacitor, ensure your replacement part matches both the microfarad range and the voltage requirements of your specific motor. For complex industrial systems or persistent motor issues, consulting with a licensed electrical contractor or HVAC professional can prevent costly damage to expensive compressor and pump assemblies.
