How To Test An O2 Sensor With A Multimeter: Step-by-Step Diagnostic Guide

Testing an oxygen (O2) sensor with a digital multimeter involves measuring internal heater resistance in ohms and monitoring live signal voltage fluctuations between 0.1 V and 0.9 V DC. A healthy narrowband sensor rapidly toggles across the 0.45-volt stoichiometric baseline when responding to induced rich and lean engine conditions. Identifying heater element failures or sluggish voltage switching allows accurate diagnosis before replacing unneeded fuel system components.

Oxygen Sensor Testing Equipment, Safety Protocols, and Diagnostic Prerequisites

Accurately testing an automotive oxygen sensor requires proper electrical metering gear and basic safety equipment. Because oxygen sensors operate at high internal temperatures (exceeding 600°F or 315°C) and sit within hot exhaust pipe streams, personal safety precautions must be maintained throughout the procedure.

Diagnostic Equipment & Consumables

• Digital Multimeter (DMM): Must feature a minimum 10 Mega-ohm (10MΩ) input impedance to prevent electrical loading that can damage the Powertrain Control Module (PCM). The DMM must measure DC Volts (millivolt resolution) and Resistance (Ohms).
• Back-Probe Pins / Wire Piercing Probes: Fine T-pins or back-probe needles designed to slide past the weatherproof silicone seals on the harness connector without damaging the copper strands or weather insulation.
• Propane Torch & Vice Grip Clamp: Required only for bench-testing (off-vehicle testing).
• Safety Gear: High-temp mechanic gloves, safety glasses, and exhaust ventilation gear if running the vehicle in an enclosed workshop.
• Un-metered Vacuum Source or Propane Enrichment Kit: For introducing controlled lean or rich fuel conditions during live vehicle testing.

Mandatory Prerequisite Knowledge

• Sensor Topology: Determine if the target unit is a standard 1-wire, 2-wire, 3-wire, or 4-wire narrowband sensor, or a 5-wire/6-wire Wideband Air/Fuel (A/F) Ratio sensor. (Note: Wideband sensors output variable micro-amperage rather than 0.1–0.9V switching signals; standard multimeters can only test heater resistance on wideband units).
• Operating Conditions: Narrowband zirconia sensors do not produce valid voltage output until their internal ceramic element reaches at least 600°F (315°C). The engine must run for 5 to 10 minutes to achieve closed-loop status before live voltage diagnostics.
• Estimated Duration & Budget: On-vehicle diagnostic time is approximately 30 to 45 minutes. Tool investment requires $25 to $60 for a high-impedance digital multimeter and back-probing accessories.

Step-by-Step Oxygen Sensor Diagnostic Workflow Using a Multimeter

Step 1: Identify Sensor Configuration and Harness Pinout

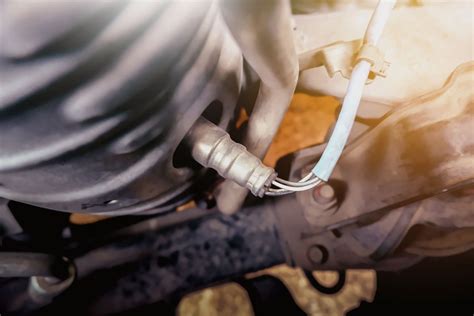

1. Inspect the target oxygen sensor connector located along the exhaust manifold (Upstream / Sensor 1) or downpipe (Downstream / Sensor 2).
2. Count the number of insulated wires emerging from the body of the sensor:


   • 1-Wire Sensor: Unheated. The single wire carries the voltage signal back to the PCM; ground is supplied via the sensor threads screwed into the exhaust pipe.
   • 2-Wire Sensor: Unheated. One wire carries the voltage signal; the second wire serves as a dedicated signal ground directly to the PCM.
   • 3-Wire Sensor: Heated. Two identical-color wires supply 12V power and ground to the internal heater element. The third wire carries the voltage signal to the PCM (grounded via exhaust body).
   • 4-Wire Sensor: Heated. Two wires for the internal heater circuit (typically 12V feed and PCM control ground), one wire for signal output, and one wire for dedicated signal ground.

Warning: Ensure the vehicle engine is turned off, the transmission is in Park/Neutral, and the emergency brake is fully engaged before reaching into the engine bay or working near exhaust components.

Step 2: Test Oxygen Sensor Heater Circuit Resistance

Heater element failure is the leading cause of diagnostic trouble codes P0030, P0036, P0135, and P0141. Testing resistance verifies if the internal heating coil is physically broken or shorted.

1. Turn the ignition switch to the OFF position.
2. Disconnect the oxygen sensor electrical harness connector from the main engine wiring harness.
3. Switch your digital multimeter dial to the Resistance (Ohms / Ω) setting (set range to 200Ω if not auto-ranging).
4. Identify the two heater pins on the sensor side of the plug (refer to manufacturer wiring schematics; commonly two white wires on Bosch style sensors or two black wires on Denso style sensors).
5. Touch the positive (red) meter probe to one heater terminal and the negative (black) meter probe to the second heater terminal.
6. Evaluate the reading on the display:


   • Healthy Range: 2.0 Ω to 30.0 Ω (refer to factory service manual for exact specs; most cold sensors read 4.0 Ω to 15.0 Ω).
   • Open Circuit (Infinite / OL): Internal heater coil is burned out or broken. The sensor must be replaced.
   • Short Circuit (0.0 – 0.5 Ω): Internal short circuit present. This will continually blow the vehicle’s oxygen sensor fuse.
7. Touch one probe to the metal body of the sensor and the second probe to each heater pin. The display must read OL (Infinite). Any continuity to ground indicates an internal short to the outer casing.

Step 3: Back-Probe Harness for Dynamic Signal Voltage Testing

To test real-time sensor switching, the sensor must remain plugged into the vehicle harness so it receives heater power and shares ground with the engine computer.

1. Reconnect the oxygen sensor electrical plug into the vehicle engine harness.
2. Set your digital multimeter to DC Volts (V=) with a range set to 2V or 20V DC.
3. Carefully insert a fine back-probe pin into the rear of the harness connector seal alongside the Signal Wire (typically black on 4-wire sensors or blue/white on Asian import OEM sensors).
4. Insert a second back-probe pin into the rear of the connector seal alongside the Signal Ground Wire (or clamp the negative multimeter lead to a clean, unpainted chassis ground point if testing a 1-wire or 3-wire sensor).
5. Connect the red positive (+) multimeter lead to the signal back-probe pin, and the black negative (-) lead to the signal ground pin.

Pro-Tip: Never pierce the rubber wire insulation directly on the exposed harness wire exterior without resealing it using liquid electrical tape or heat-shrink tubing. Moisture intrusion causes copper oxide corrosion inside the cable, resulting in permanent signal dropouts.

Step 4: Execute Induced Rich and Lean Dynamic Response Tests

Once connected, the engine must be brought up to operating temperature so the PCM enters closed-loop operation.

1. Start the engine and let it idle for 5 to 10 minutes until the coolant temperature reaches normal operating range (185°F–200°F / 85°C–93°C).
2. Increase engine speed to 2,000 RPM for 30 seconds to heat the ceramic element, then return to idle.
3. Observe the live multimeter reading:


   • A functioning upstream sensor will rapidly fluctuate between 0.100 V (100 mV) and 0.900 V (900 mV), passing through the 0.450 V stoichiometric center line roughly 1 to 3 times per second.
   • A stationary voltage reading around 0.450 V indicates the system is still in open-loop mode or the sensor is dead.
4. Force a Lean Test: Disconnect a small engine vacuum line (such as the brake booster line or positive crankcase ventilation hose) to introduce unmetered air.


   • Expected Result: The multimeter voltage must drop rapidly below 0.200 V (200 mV) within less than 300 milliseconds due to excess oxygen in the exhaust gas.
5. Force a Rich Test: Reconnect the vacuum line. Introduce a small, controlled amount of propane gas or spray a brief 1-second blast of carburetor cleaner into an intake vacuum port.


   • Expected Result: The multimeter voltage must climb instantly above 0.800 V (800 mV) due to the depletion of oxygen in the exhaust gas.

Step 5: Perform an Off-Vehicle Torch Test (Bench Diagnostic)

If on-vehicle back-probing is restricted due to tight engine bay space, the sensor can be verified on a workbench using an external heat source.

1. Secure the oxygen sensor body upright in a bench-top vice equipped with soft jaws.
2. Set your multimeter to DC Volts (2V range).
3. Connect the red meter lead to the sensor signal output pin using a small alligator clip.
4. Connect the black meter lead to the stainless steel threaded body of the sensor (for 1-wire or 3-wire sensors) or the dedicated signal ground pin (for 4-wire sensors).
5. Light a propane torch and adjust it to a soft blue flame.
6. Direct the tip of the flame straight onto the perforated sensing tip of the oxygen sensor.
7. Observe the multimeter display: As the torch consumes surrounding atmospheric oxygen and heats the tip above 600°F, the voltage should swiftly rise to 0.800 V – 0.950 V.
8. Pull the propane flame away from the tip.
9. As ambient air rushes back over the tip, the measured voltage must plunge below 0.150 V in under one second. If the voltage declines sluggishly (taking several seconds to drop), the sensor ceramic matrix is fouled, sluggish, and requires replacement.

Oxygen Sensor Resistance, Voltage, and Specification Reference

The table below outlines nominal electrical parameters across sensor types, highlighting healthy operation, failure thresholds, and typical wire identification rules.

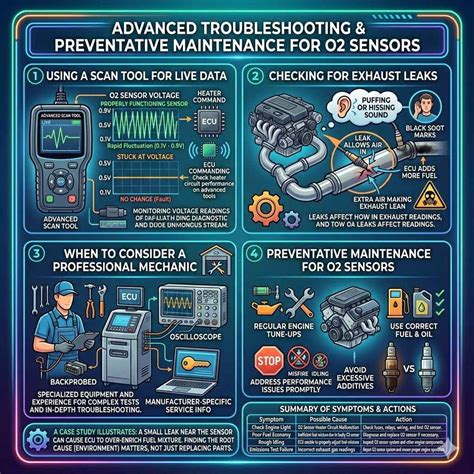

Field Troubleshooting: Diagnosing Common Sensor Faults and Electrical Errors

Diagnosing faulty oxygen sensors requires isolating internal sensor degradation from external engine mechanical faults. Use these practical diagnostic paths when test results yield ambiguous values:

• Scenario 1: Voltage Drops to 0.00 Volts and Never Cycles




  • Root Cause: Broken signal line, internal short to ground inside the sensor shell, or loss of signal ground continuity.
  • Actionable Fix: Disconnect the harness and measure continuity between the signal pin and the sensor shell. If continuity exists, replace the sensor. If the sensor passes, check for a short to ground in the vehicle main wiring harness between the plug and the PCM.

• Scenario 2: Multimeter Stuck Solidly at 0.450 Volts (Bias Voltage)




  • Root Cause: The sensor is not reaching operating temperature, or the signal wire is broken. The PCM supplies a 450 mV reference bias voltage; if the sensor does not warm up or produce its own electromotive force, the meter simply reads this PCM reference voltage.
  • Actionable Fix: Check for 12V battery power at the harness heater supply pin using your multimeter set to DC Volts with the engine running. If 12V is present, verify heater resistance on the sensor side (Step 2). Replace the sensor if the heater circuit is open.

• Scenario 3: Sensor Switches Voltage, but Response Time is Extremely Slow ("Lazy Sensor")




  • Root Cause: Carbon deposits, oil ash contamination from leaking valve stem seals, or silicone contamination from improper sealant usage clogging the ceramic sensing pores.
  • Actionable Fix: Perform the Induced Rich/Lean test (Step 4). If the sensor takes longer than 1 second to transition from 0.2V to 0.8V, it is contaminated. Cleaning with solvents is ineffective and will permanently ruin the ceramic matrix; replace the sensor.

• Scenario 4: High Heater Resistance Reading (e.g., 150 Ohms on a 10 Ohm Spec)




  • Root Cause: High internal contact resistance caused by thermal fatigue or partial fracturing of the internal heater element wire.
  • Actionable Fix: Replace the sensor unit immediately. High resistance limits current draw, preventing the internal heater from maintaining the 600°F threshold at engine idle, causing the vehicle to drop back into open-loop mode.

Frequently Asked Questions

Can you test a wideband oxygen sensor with a standard multimeter?

You can only test the heater element resistance on a wideband (air/fuel ratio) sensor using a standard multimeter. Wideband sensors alter current output (milliamps) rather than toggling voltage between 0.1V and 0.9V; testing live wideband signals requires a high-end diagnostic scan tool capable of reading PCM data parameter IDs (PIDs).

What should an upstream O2 sensor read at idle on a multimeter?

Once the engine reaches full operating temperature, a healthy upstream narrowband oxygen sensor will dynamically cycle between 0.100 V and 0.900 V DC roughly once or twice per second at idle. Downstream sensors (located after the catalytic converter) should remain relatively stable between 0.500 V and 0.800 V DC, reflecting reduced oxygen levels after catalytic conversion.

Why is my digital multimeter displaying a negative voltage during the test?

A negative voltage reading occurs if your multimeter probe leads are reversed. Ensure the red positive lead is connected to the sensor signal output wire and the black negative lead is securely connected to the sensor signal ground or engine block ground.

How do I know if an O2 sensor fault is caused by the sensor or an engine vacuum leak?

Perform the forced rich test by introducing propane or carburetor cleaner into the intake while monitoring the signal voltage. If the sensor immediately jumps to 0.800V or higher during the test, the sensor is working correctly, and your low voltage diagnostic code is caused by a mechanical lean condition (such as an engine vacuum leak or low fuel pressure).

Can I clean a bad O2 sensor to restore correct multimeter readings?

Cleaning an oxygen sensor with wire brushes, brake cleaner, or torches will not restore a worn or chemically contaminated sensor. Silicone or oil ash contamination fuses to the internal platinum electrode surfaces at high heat, rendering the chemical reaction impossible and requiring complete sensor replacement.

Restore Peak Engine Efficiency and Prevent Catalytic Converter Damage

Diagnosing oxygen sensors with a digital multimeter eliminates blind component replacement while protecting your vehicle's catalytic converter from unburned fuel saturation. Replacing a confirmed faulty sensor restores factory fuel economy, stabilizes engine idle, and keeps exhaust emissions within environmental standards.
