How To Test MOSFET With A Multimeter: A Comprehensive Step-by-Step Guide

Testing a MOSFET with a digital multimeter requires isolating the transistor from live circuits, discharging its internal gate capacitance, and using the diode test mode to verify continuity across the drain, source, and gate terminals. By following a systematic voltage-triggering sequence, technicians can accurately diagnose shorted, open, or leaky field-effect transistors before installation or board-level repair.

Pre-Operation & Equipment Checklist

Proper diagnostics of a Metal-Oxide-Semiconductor Field-Effect Transistor demand specific precautions to prevent electrostatic discharge (ESD) destruction and inaccurate meter readings. Semiconductor gates feature extremely thin insulating oxide layers that easily puncture under static voltages or incorrect meter currents.

• Essential Gear, Tools, and Materials:


  • Digital Multimeter (DMM) equipped with a dedicated Diode Test mode and low resistance ranges.
  • Anti-static wrist strap and an ESD-safe grounded workbench mat.
  • Insulated Tweezers or a 100k ohm discharge resistor to safely clear gate charge.
  • Soldering iron and desoldering pump if testing component off-board.
• Mandatory Prerequisite Knowledge and Standards:


  • Identification of component pinouts (Gate, Drain, Source) via the manufacturer datasheet.
  • Understanding of N-channel versus P-channel polarity behaviors regarding internal body diodes.
• Estimated Budget and Duration Benchmarks:


  • Tool investment ranges from 20 to 100 USD for a reliable auto-ranging DMM.
  • Time required per component test is approximately 3 to 5 minutes.

Step-by-Step MOSFET Diagnostic Workflow

Step 1: Component Removal and Safety Discharge

Before applying any meter probes, ensure the MOSFET is completely isolated from the printed circuit board to prevent parallel circuit paths from skewing resistance readings. Discharge any residual voltage stored within the gate capacitance by shorting the Gate pin to the Source pin using an insulated tool or a high-value resistor.

Warning: Leaving residual voltage on the gate terminal during resistance measurements can keep the channel enhanced, leading to false short-circuit readings between the drain and source.

Step 2: Identification of Pinouts and Polarity

Consult the specific part number datasheet to pinpoint the physical locations of the Gate (G), Drain (D), and Source (S) terminals. For standard N-channel enhancement-mode MOSFETs, the internal body diode is oriented with its anode connected to the Source and its cathode connected to the Drain, which dictates how the meter probes must be applied during initial baseline checks.

Step 3: Verifying the Internal Body Diode

Set your digital multimeter to the Diode Test mode, recognizable by the diode symbol on the dial. For an N-channel MOSFET, place the red (positive) probe on the Source terminal and the black (negative) probe on the Drain terminal. A healthy component will display a forward voltage drop reading typically between 0.400V and 0.700V. Reversing the probes—black on Source, red on Drain—should yield an open-line or "OL" reading, confirming the body diode is blocking reverse conduction.

Step 4: Triggering the Gate to Turn the MOSFET On

To test the switching capability of an enhancement-mode N-channel MOSFET, leave the black probe on the Source terminal and momentarily touch the red probe to the Gate terminal to charge the gate-source capacitance. While keeping the black probe on the Source, move the red probe back to the Drain terminal. The meter should now display a near-zero voltage drop or continuity (0.00V or a very low resistance), indicating that the internal channel has successfully switched into the conductive state.

Step 5: Discharging and Verifying Channel Turn-Off

With the meter probes still positioned across the Drain and Source terminals (black on Source, red on Drain), momentarily touch the Gate terminal to the Source terminal using your finger or an insulated jumper wire to discharge the gate charge. The multimeter display must instantly revert to an open circuit or "OL", confirming that the MOSFET has returned to its non-conductive, turned-off state and is operating correctly.

MOSFET Technical Specifications and Testing Parameter Matrix

Common MOSFET Failures and Field Remedies

• Shorted Drain-to-Source Junction


  • Root Cause: Thermal overload, overvoltage spikes, or excessive continuous drain current exceeding manufacturer maximum ratings.
  • Actionable Fix: Replace the MOSFET with a component possessing higher voltage and current ratings, and inspect associated gate driver circuits for driving voltage anomalies.
• Punctured Gate-to-Source Oxide Layer


  • Root Cause: Electrostatic discharge (ESD) during handling or excessive gate-source driving voltage exceeding maximum VGS limits.
  • Actionable Fix: Implement strict ESD wrist-strap protocols during assembly and install a protective zener diode across the gate-source terminals in the circuit design.
• Thermal Runaway and Package Delamination


  • Root Cause: Inadequate heatsink mounting, poor thermal paste application, or high switching frequency losses.
  • Actionable Fix: Up-rate the heatsink assembly, improve thermal interface material coverage, and verify that switching transition times are optimized.

Frequently Asked Questions

Can I test a MOSFET while it is still soldered on the circuit board?

In-circuit testing is generally unreliable because surrounding components such as resistors, capacitors, and IC drivers create parallel current paths that distort multimeter readings. Always desolder the MOSFET or lift at least the drain and gate pins to ensure an isolated, accurate diagnostic result.

Why does the multimeter show a short circuit between drain and source initially?

Many modern power MOSFETs contain built-in internal body diodes or parasitic capacitances that briefly register continuity when meter probes are first attached. Discharging the gate and properly cycling the test probes will clear these transient readings and reveal the true health of the semiconductor channel.

How do I identify if a MOSFET is N-channel or P-channel?

You can identify the channel type by testing the polarity of the internal body diode using the multimeter's diode mode. An N-channel MOSFET conducts when the positive probe is on the source and negative is on the drain, whereas a P-channel MOSFET exhibits the exact opposite polarity behavior.

What does an "OL" reading on all pins mean?

An open-line reading across all terminal combinations typically indicates that the MOSFET has an internal open circuit or broken bond wires due to severe overcurrent stress. In this scenario, the component is permanently dead and must be replaced.

Will a standard digital multimeter test a MOSFET completely?

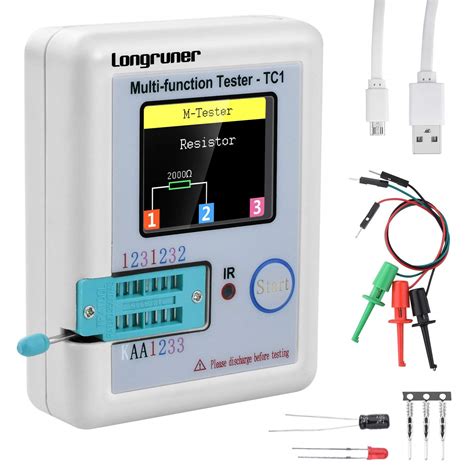

While a DMM can accurately verify basic diode health, switching functionality, and short or open faults, it cannot measure dynamic parameters like gate threshold voltage, transconductance, or total gate charge. For advanced performance verification under load, specialized semiconductor curve tracers or dedicated transistor testers are required.
