How To Test An Ignition Control Module: Complete Diagnostic Guide

Learn how to test an ignition control module using standard shop diagnostic tools to pinpoint engine misfires, intermittent stalling, and no-spark conditions. Accurately measuring power inputs, ground voltage drops, trigger signals, and switching outputs determines module viability before replacing expensive components. Following precise electrical specs ensures accurate diagnosis and prevents premature replacement of functional ignition parts.

Pre-Diagnostic Setup & Tooling Protocols

Diagnosing an Ignition Control Module (ICM)—sometimes referred to as an igniter or electronic ignition unit—requires isolating electrical supply issues from signal processing failures. The module acts as a high-speed electronic switch, taking low-current timing signals from a crankshaft position sensor, camshaft sensor, or distributor pickup coil and sinking the primary ignition coil ground to generate high-voltage secondary spark. Testing must verify circuit integrity under load, as simple static continuity tests often fail to catch thermal breakdown or transistor saturation faults.

Equipment Requirements

• Digital Multimeter (DMM): Minimum CAT III 600V rated with minimum 10-Megohm input impedance, capable of reading DC Volts, AC Volts, Hertz (frequency), and Resistance ($\Omega$).
• 12-Volt LED Test Light: High-impedance circuit tester (Do not use standard incandescent test lights on logic-level circuits to avoid damaging internal ECU or ICM drivers).
• Heat Gun or Hairdryer: Used for localized thermal stress testing of the module housing.
• Back-Probe Pins: Non-destructive wire probes for back-probing weather-pack electrical connectors.
• Jumper Wires: 14-gauge insulated copper wire with fused inline protection (10-amp).
• Thermal Sink Compound: Silicone-based heat-dissipation grease for re-installation.

Mandatory Prerequisite Standards

• Battery Voltage State: The vehicle battery must be fully charged to a minimum of 12.6 Volts DC open-circuit voltage before beginning. Low system voltage causes erratic module logic performance and invalidates crank-speed testing.
• Safety Isolation: Disable the fuel system (remove fuel pump relay) during extended cranking tests to prevent cylinder wash and unburned fuel accumulation in the catalytic converter.

Scope & Benchmarks

• Estimated Duration: 45 to 60 minutes.
• Skill Level: Intermediate Automotive Electrical Technician.
• Component Cost Range: Diagnostic costs range from $0 (using existing tools) to $150–$300 for replacement module hardware.

Step-by-Step Ignition Control Module Diagnostic Workflow

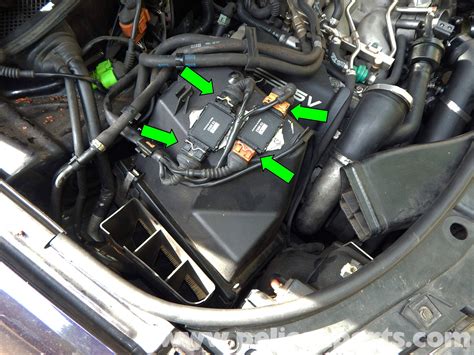

Step 1: Perform Visual Inspection and Battery Feed Verification

Begin by evaluating the physical integrity of the ignition control module and its harness. Physical cracks, melting around potting compound, or green corrosion within the multi-pin connector indicate catastrophic component failure or liquid intrusion.

1. Disconnect the negative battery cable.
2. Unplug the main wiring harness connector from the ICM. Inspect pins for push-outs, bent terminals, or oxidation.
3. Reconnect the negative battery cable and turn the vehicle ignition switch to the "KEY-ON, ENGINE-OFF" (KOEO) position.
4. Set the DMM to DC Volts ($V_{DC}$). Place the black meter lead on a known good engine ground point (chassis or battery negative terminal).
5. Touch the red DMM probe (or back-probe) to the battery positive feed terminal ($B+$ pin) at the module connector.
6. Compare the reading to battery voltage.

Warning: The voltage reading at the ICM supply pin must be within 0.5 Volts of total battery voltage. A reading lower than 11.5 Volts indicates excessive resistance in the ignition switch, blown relay contacts, or corroded wiring harness splices.

Step 2: Validate Ground Circuit Integrity and Voltage Drop

An ignition module requires an absolute zero-voltage ground path to sink high primary coil current (up to 6–10 Amps) rapidly. A weak ground prevents full primary coil saturation, resulting in a weak spark or total ignition failure.

1. Keep the ignition switch in the KOEO position and leave the module harness connected (back-probing required).
2. Set the DMM to DC Volts ($V_{DC}$) on its lowest scale (200mV or 2V scale).
3. Connect the red meter probe directly to the ICM ground terminal pin/housing shell.
4. Connect the black meter probe directly to the negative battery terminal post (not the clamp).
5. Crank the engine while observing the multimeter reading.
6. Calculate the dynamic ground voltage drop.

Pro-Tip: Ground voltage drop during cranking should not exceed 0.2 Volts (200 mV). If the reading exceeds 0.2V, clean the module mounting plate, wire eyelets, and frame ground straps. Many modules ground directly through their metal mounting base; corrosion underneath this base breaks the circuit entirely.

Step 3: Measure Input Trigger Signal (Pick-Up / Crank Sensor)

The ICM cannot switch the ignition coil without a valid input trigger signal. Depending on system design, this signal originates from a Variable Reluctance (VR) magnetic pick-up coil, a Hall Effect sensor, or a pulse from the Engine Control Unit (ECU).

1. Determine sensor type: VR sensors generate an AC voltage; Hall Effect/ECU triggers generate a DC square wave pulse (typically 0-5V or 0-12V).
2. For Variable Reluctance (2-wire) pickup sensors:


   • Set DMM to AC Volts ($V_{AC}$).
   • Connect probes across the two signal input pins at the module connector.
   • Crank the engine. The meter must read at least 0.5 to 1.5 Volts AC while cranking.
3. For Hall Effect / ECU logic triggers (3-wire or computer-controlled):


   • Set DMM to DC Volts ($V_{DC}$) or Hertz ($Hz$).
   • Back-probe the signal input pin relative to chassis ground.
   • Crank the engine. The meter should display an alternating 0V to 5V (or 12V) pulse, or a steady frequency reading between 5 Hz and 30 Hz depending on cranking speed.

Warning: If no trigger signal is present at the module input pins, the ignition module is not at fault. Inspect the crankshaft position sensor, distributor pick-up assembly, or primary timing belt/chain.

Step 4: Test Switching Output Signal to the Ignition Coil

If the ICM receives proper power, ground, and trigger signals, it must toggle the coil negative ($Coil -$) terminal to ground and release it to collapse the magnetic field, producing spark.

1. Connect the lead of an LED test light to the battery positive post ($12V+$).
2. Probe the negative side of the ignition primary coil ($Coil -$) or the corresponding output driver pin on the ICM harness.
3. Crank the engine while observing the LED.
4. Interpret the LED behavior:


   • Blinking / Flashing Light: The ICM internal switching transistor is functioning properly, collapsing the coil primary field. (If no spark occurs, the ignition coil or high-tension leads are failed).
   • Solid Light (Always ON): The module internal switching transistor is shorted directly to ground. The coil will overheat and burn out.
   • No Light (Always OFF): The module switching transistor is stuck open, or the module lacks internal circuit continuity.

Step 5: Execute Thermal Stress Testing for Intermittent Faults

Ignition control modules frequently fail due to thermal expansion. Microscopic cracks in the internal silicon substrate or internal bond wires open up only when the module reaches operating temperature, causing engine stall after 15–20 minutes of driving.

1. If the engine starts cold but dies when warm, start the vehicle and let it idle until it reaches normal operating temperature. Alternatively, with the engine off, use a heat gun set to low ($<150^\circ\text{F} / 65^\circ\text{C}$) to gently heat the ICM housing.
2. Monitor the LED test light on the coil negative terminal or monitor spark output using an inline spark tester.
3. Direct warm air onto the module for 2 to 3 minutes. Do not overheat plastic housings beyond touch tolerance.
4. Attempt to start or run the engine. If ignition output vanishes immediately upon heating and returns once the module cools down, the module suffers from thermal degradation and must be replaced.

Ignition Module Diagnostic Parameters & Voltage Threshold Matrix

Advanced Ignition System Field Troubleshooting & Failure Modes

Scenario 1: Engine dies after 20 minutes of operation; restarts after cooling down for 30 minutes.

• Root Cause: Heat-sink compound degradation leading to thermal shutdown of the primary switching transistor. The silicon substrate inside the module separates from its copper heat spreader under high thermal load.
• Actionable Fix: Remove the module, clean the back plate with isopropyl alcohol, inspect for thermal warping, apply a fresh $1/16$-inch layer of high-temp silicone thermal compound, and reinstall. If stall persists, replace the module.

Scenario 2: New ignition module fails within 48 hours of installation.

• Root Cause: Shorted ignition coil primary windings. Low primary coil resistance (e.g., $0.1\Omega$ instead of the specified $1.2\Omega$) draws excessive current through the ICM driver transistor, exceeding its continuous amperage capacity and burning it out instantly.
• Actionable Fix: Always measure primary coil resistance using a DMM before installing a new ICM. If primary resistance is below manufacturer specs, replace both the ignition coil and the module simultaneously.

Scenario 3: Good input signal and battery power present, but LED test light stays lit constantly.

• Root Cause: Internal Darlington transistor or IGBT within the module has shorted to ground internally, continuously charging the coil without releasing it.
• Actionable Fix: Replace the ignition control module immediately. Do not leave the ignition switch key ON with a shorted module, as it will melt the ignition coil within minutes.

Scenario 4: Erratically fluttering tachometer needle accompanied by engine misfire under load.

• Root Cause: High-voltage secondary leakage jumping into the low-voltage signal harness, or a failing tachometer output driver inside the ICM.
• Actionable Fix: Inspect spark plug wires for dielectric breakdown using a mist bottle water test at night. Inspect ground connections at the module harness and clear any AC voltage ripple coming from a failing alternator rectifier bridge (AC ripple should be $< 0.5\text{V}$ AC at battery).

Frequently Asked Questions

Can an auto parts store test my ignition control module accurately?

Bench testers at parts stores apply basic low-current voltage to verify simple switching functions, but they rarely heat-stress the module or subject it to real-world current loads. A module that passes a cold bench test may still fail under actual engine heat and high-amperage operating conditions.

What happens when an ignition control module fails completely?

Complete module failure causes a "crank, no-start" condition because the engine lacks all spark generation. Partial failure results in severe engine misfires, random stalling at idle, loss of tachometer signal, or poor high-RPM performance due to inadequate coil dwell saturation.

Can a bad ignition coil ruin a new ignition control module?

Yes. An ignition coil with shorted internal primary windings has reduced electrical resistance, allowing excessive current (amperage) to flow through the module's driver transistor. This over-current condition overheats and permanently destroys the replacement module within minutes of operation.

Do I need to apply thermal grease when installing a new ignition control module?

Yes, applying dielectric thermal heatsink grease to the back of a distributor-mounted or remote-mounted module is mandatory. Without heat-sink compound, heat cannot transfer efficiently from the module substrate to the metal distributor body or firewall, leading to rapid thermal breakdown and component failure.

How do I tell the difference between a bad crankshaft position sensor and a bad ignition module?

Use a digital multimeter or oscilloscope to measure sensor signal output at the module harness input during engine cranking. If the crankshaft sensor sends a valid AC or DC pulse to the module but the module produces no switching output signal to the coil, the ignition module is failed.
