How To Test Igniter Module: A Step-by-Step Diagnostic Guide

An automotive or appliance igniter module controls the vital spark or gas ignition sequence by processing sensor inputs and switching primary voltage to the ignition coil. Diagnosing a failing module requires a Digital Multimeter (DMM) and an optional oscilloscope to evaluate continuity, resistance thresholds, and voltage drops against manufacturer specifications.

Pre-Operation & Equipment Checklist

Testing an electronic igniter module demands methodical preparation to prevent accidental electrical shocks, component short circuits, or module damage. Whether working on an automotive engine bay or a commercial heating appliance, proper organization ensures accurate diagnostic results and personal safety.

• Essential Gear and Tools: Digital Multimeter (CAT III/IV rated) with back-probe leads, insulated jumper wires, standard metric/standard socket set, wire strippers, contact cleaner, and a digital or thermal infrared thermometer.
• Prerequisite Knowledge & Safety Standards: Familiarity with low-voltage direct current (DC) circuits and high-voltage alternating current (AC) or inductive kickback circuits. Always disconnect the power source or battery negative terminal before performing continuity checks or resistance measurements.
• Budget & Duration Benchmarks: Estimated time ranges from 20 to 45 minutes depending on accessibility. Minimal tooling cost if a multimeter is already owned; replacement modules typically range from 50 to 250 dollars depending on the application.

Step-by-Step Igniter Module Diagnosis Workflow

Step 1: Visual Inspection and Circuit Isolation

Begin by locating the igniter module and disconnecting the primary wiring harness. Inspect the plastic housing, potting material, and electrical pins for signs of thermal stress, such as melting, discoloration, cracking, or white powdery corrosion. Use a clean shop towel and electronic contact cleaner to remove any oil, moisture, or oxidation from the terminal pins and connector receptacles.

Warning: Never probe high-voltage secondary ignition leads while the engine or appliance is running unless using specialized high-voltage insulation probes, as this risks severe electrical shock and damage to standard multimeters.

Step 2: Measuring Supply Voltage and Ground Integrity

Reconnect the wiring harness partially or back-probe the harness connector to measure incoming power while the ignition or appliance switch is turned to the "ON" position. Set your DMM to the appropriate DC voltage scale (usually 12V for automotive or 24V/120V for HVAC systems). Place the red meter lead on the positive power supply terminal and the black lead on a known clean chassis or system ground.

Pro-Tip: A voltage drop greater than 0.5 volts between the power source and the module's input pin indicates high resistance in the wiring harness, corroded splices, or a failing relay that must be repaired before condemning the igniter module itself.

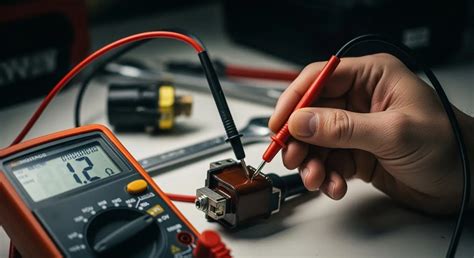

Step 3: Checking Resistance and Internal Continuity

Disconnect power entirely from the system and isolate the igniter module by unplugging all connectors. Set your DMM to the resistance (Ohm) setting and measure the internal resistance between the input trigger pins and the output switching terminals according to the specific service manual values. Record the readings and compare them against factory specifications; an open circuit (infinite ohms) or a dead short (zero ohms) confirms an internal component failure.

Step 4: Testing Trigger Input Signals

Reconnect the main wiring harness and set the multimeter to read low-level DC voltage or square-wave duty cycle if using an advanced meter or oscilloscope. Crank the engine or initiate the appliance call for heat to verify that the Electronic Control Unit (ECU) or thermostat is sending the proper trigger pulse to the module's input terminal. If the trigger signal is present and stable, yet the module fails to switch power to the output coil or burner, the igniter module is defective.

Igniter Module Diagnostic Parameters Comparison

Common Site Failures and Field Fixes

• Thermal Breakdown and Intermittent Operation:


  • Root Cause: Internal solder joints expand and separate when the engine bay or appliance compartment reaches high operating temperatures, causing the module to fail only when hot.
  • Actionable Fix: Heat the module gently with a localized heat gun while monitoring continuity or test the system immediately after a normal operating cycle; replace the module if thermal expansion causes open circuits.
• Corrosion-Induced Resistance:


  • Root Cause: Moisture intrusion into unsealed or aging connector boots leads to copper oxidation and high circuit resistance.
  • Actionable Fix: Clean all pins thoroughly with a fine wire brush and electrical contact cleaner, apply dielectric grease to seal out moisture, and replace damaged connector terminals.
• Vibration Damage to Internal Microcircuits:


  • Root Cause: Constant mechanical vibration or missing mounting bracket isolators fractures microscopic wire bonds inside the solid-state module.
  • Actionable Fix: Ensure all rubber dampening bushings and mounting bolts are tightly secured; replace the module and install new vibration isolators if internal rattling is detected.

Frequently Asked Questions

What are the primary symptoms of a failing igniter module?

Common symptoms include a complete lack of spark or ignition, intermittent engine misfires when the vehicle reaches operating temperature, sudden stalling, or error codes pointing to primary ignition circuit failures. In heating appliances, the unit may attempt to start, click repeatedly, and lock out due to a lack of flame verification.

Can I test an igniter module with a standard multimeter?

Yes, a standard digital multimeter can successfully test supply voltage, ground continuity, and input trigger signals. However, checking dynamic switching performance under real-world load conditions sometimes requires an oscilloscope or specialized bench tester.

What causes an igniter module to fail prematurely?

Premature failure is typically caused by excessive engine compartment or appliance heat, chronic vibration due to loose mounting brackets, voltage spikes from a failing alternator or transformer, or moisture contamination entering the housing.

Should I apply thermal paste when replacing an igniter module?

Many automotive and appliance igniter modules require a thin layer of heat-sink thermal compound on their mounting base to dissipate heat effectively into the chassis or mounting plate. Omitting this paste can cause the new module to overheat and fail rapidly.

How do I know if the problem is the ignition coil or the igniter module?

By testing for switching voltage at the output terminal of the igniter module during cranking, you can isolate the component. If the module is receiving a valid trigger signal and supply voltage but fails to switch the ground or power to the coil, the module is at fault. If the module switches correctly but the coil fails to produce secondary spark, the coil is the culprit.
