How To Test Hydraulic Brakes For Leaks: The Complete Diagnostic Guide
Testing hydraulic brakes for leaks requires a systematic combination of static pressure checks, visual inspections of high-stress junction points, and fluid level monitoring to ensure absolute safety. By understanding the underlying physics of hydraulic pressure and recognizing early symptoms like spongy pedal travel or weeping lines, mechanics can prevent catastrophic brake failure.
Pre-Operation & Equipment Checklist
Diagnosing integrity compromises in a closed hydraulic braking system requires precision tools, personal protective equipment, and a controlled workspace. Because brake fluid is highly hygroscopic and corrosive to vehicle paint and rubber seals, proper preparation prevents both structural damage and false-positive diagnostics.
- Essential Tools & Materials:
- Hydraulic line wrenches (flare nut wrenches) to prevent rounding fittings
- Heavy-duty mechanic's rags and isopropyl alcohol for cleaning surfaces
- A mechanics inspection mirror and high-lumen LED flashlight
- A clear plastic catch tube and vacuum or pressure bleeder kit
- Replacement copper crush washers, O-rings, and DOT 3, DOT 4, or DOT 5.1 fluid matching manufacturer specifications
- Prerequisite Knowledge & Standards:
- Familiarity with Federal Motor Vehicle Safety Standards (FMVSS 105/135) regarding dual-circuit hydraulic brake systems
- Understanding of pascal's law as applied to master cylinders, proportioning valves, and wheel cylinders or calipers
- Estimated Benchmarks:
- Duration: 45 to 60 minutes for a complete vehicle inspection
- Difficulty Level: Intermediate mechanical proficiency
Step-by-Step Hydraulic Leak Detection Workflow
Step 1: Perform a Comprehensive Visual Inspection
Begin by securing the vehicle on a level surface, engaging the parking brake, and safely elevating it using rated jack stands. Inspect every millimeter of the hydraulic circuit, starting at the master cylinder reservoir and following the hard metal brake lines along the frame rails down to the flexible rubber hoses. Pay acute attention to where hard lines transition to flexible lines, as these crimped fittings endure high vibration and cyclic fatigue. Look for localized accumulation of road grime matted with wet fluid, which indicates a slow weeping leak.
Warning: Never use your bare hands to check flexible brake lines for leaks under pressure. High-pressure pinhole leaks can inject hazardous automotive fluids directly beneath the human skin, leading to severe chemical trauma or systemic infection.
Step 2: Execute the Static Pedal Pressure Test
With the engine turned off, sit inside the vehicle and press the brake pedal firmly with consistent force, mimicking panic-stop pressure. Hold the pedal down continuously for a minimum of 30 to 45 seconds. A healthy, sealed system will maintain rock-solid pedal resistance. If the pedal slowly creeps or sinks downward toward the floorboard without any loss of fluid externally, suspect an internal master cylinder bypass. If the pedal feels firm initially and then slowly sinks while accompanied by a soft hissing sound or a sudden drop in fluid level, an external rupture or major component failure is present.
Step 3: Inspect Calipers, Wheel Cylinders, and ABS Modules
Remove the wheels to gain direct visual access to the brake calipers and rotor assemblies. On disc brake setups, inspect the caliper body around the piston boot, the bleeder screw, and the banjo bolt sealing washers. Look for glistening fluid pooling inside the wheel barrel or on the suspension control arms. For drum brake configurations, peel back the rubber dust boots on the wheel cylinders located inside the backing plate; any fluid escaping from beneath these boots confirms immediate seal failure requiring cylinder replacement. Finally, inspect the Anti-lock Braking System (ABS) hydraulic modulator block and electronic control unit for valve block weeping.
Pro-Tip: Dust the suspect joint or fitting lightly with talcum powder or developer spray after cleaning it with brake cleaner. Once dry, apply hydraulic pressure to the system; any active leak will instantly discolor and trace a wet path through the white powder, pinpointing microscopic micro-cracks.
Step 4: Perform a Dynamic Pressure Test Using a Pressure Bleeder
Attach a professional brake pressure bleeder to the master cylinder reservoir and pressurize the closed system to approximately 15 to 20 PSI, depending on factory service manual limits. Monitor the built-in analog pressure gauge on the bleeder tool for a minimum of 5 minutes. If the gauge needle drops, hydraulic pressure is escaping somewhere in the circuit. Walk the length of the vehicle once more while the system is under artificial static pressure to isolate and listen for the subtle hiss of escaping air or fluid seepage.

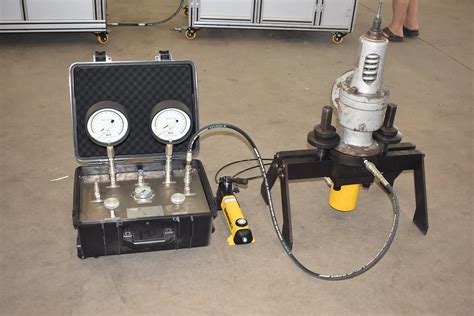

Hailaitaide Hydraulic Control Safety Relief Valve Bench for Test Rig ...
Hydraulic Brake System Leak Indicators and Parameters
| Diagnostic Method | Target Component | Normal Operational State | Failure Indicator / Threshold |
|---|---|---|---|
| Static Pedal Test | Master Cylinder & Lines | Constant pedal height under load | Continuous pedal sink or spongy travel |
| Visual Inspection | Flexible Rubber Hoses | Dry, flexible, free of surface cracks | Bubbling, weeping residue, or wet spots |
| Bleeder Gauge Test | Entire Closed Circuit | Zero pressure drop over 5 minutes | Any measurable psi drop on gauge |
| Caliper Examination | Piston Seals & Banjo Bolts | Bone-dry casting surfaces | Fluid accumulation under dust boots |
Common System Failures and Field Fixes
- Degraded Flexible Rubber Hoses
- Root Cause: Aging, thermal cycling, and ozone exposure cause internal rubber degradation and external micro-fissuring, allowing fluid to weep under high pressure.
- Actionable Fix: Replace both front or rear flexible hoses in axle sets using certified DOT-approved braided stainless steel or multi-layer rubber replacement lines, followed by a complete system bleed.
- Corroded Steel Hard Lines
- Root Cause: Road salt, moisture entrapment behind plastic frame clips, and galvanic corrosion thin the steel wall thickness until pinhole ruptures form.
- Actionable Fix: Cut out the compromised section using a tubing cutter, bend a replacement nickel-copper (NiCopp) alloy line to match factory contours, and flare the ends using a 37-degree or 45-degree flaring tool before union connection.
- Leaking Caliper Banjo Bolt Washers
- Root Cause: Reusing old, crushed copper crush washers during brake service, or failing to torque the banjo bolt to manufacturer-specified foot-pounds.
- Actionable Fix: Remove the banjo bolt, discard the old copper washers, clean the mating surfaces thoroughly, and install brand-new annealed copper crush washers, torquing precisely to factory specifications.
Frequently Asked Questions
Can I drive my car if I have a small brake fluid leak?
No, driving with any hydraulic brake leak is exceptionally dangerous and illegal in many jurisdictions. Even a minor leak can rapidly progress into total hydraulic pressure loss under emergency braking conditions, resulting in complete brake failure and a potential collision.
How do I know if my master cylinder is leaking internally versus externally?
An external leak leaves visible puddles, wet spots, or damp grime on the brake booster or firewall. An internal leak occurs when the primary or secondary rubber piston cups wear out, allowing fluid to bypass past the seals internally; this causes the brake pedal to sink slowly to the floor without any external loss of brake fluid.
What type of brake fluid should I use when topping off my system?
Always check the cap of your brake fluid master cylinder reservoir for the exact manufacturer specification, which is typically DOT 3, DOT 4, or DOT 5.1. Never mix glycol-based fluids (DOT 3, 4, 5.1) with silicone-based fluids (DOT 5), as doing so will cause catastrophic seal degradation and system failure.
Why does my brake fluid level drop if there are no visible leaks?
As brake pads and rotors wear down during normal vehicle operation, the caliper pistons extend further outward to maintain proper pad-to-rotor clearance. This increased mechanical travel draws more fluid out of the master cylinder reservoir, causing the fluid level to drop naturally without an active leak present.
