How To Test An Engine Coolant Temperature Sensor: A Master Technician’s Guide
Testing an engine coolant temperature sensor (ECT) involves measuring its resistance across a specific temperature range using a digital multimeter to ensure the output signal correlates with factory specifications. A faulty sensor typically causes engine performance issues, such as poor fuel economy or overheating, which can be diagnosed by comparing the sensor's ohms output against a known-good temperature resistance chart.
Diagnostic Prerequisites and Essential Tooling
Properly evaluating an ECT requires precision and adherence to safety protocols. Because the cooling system operates under pressure and reaches temperatures exceeding 200 degrees Fahrenheit, technicians must prioritize thermal safety and electrical accuracy. Before beginning, ensure the engine is cold or at ambient temperature to prevent burns and to establish a stable baseline for testing.
- Essential Diagnostic Tools: Digital Multimeter (DMM) capable of measuring ohms (resistance), a calibrated infrared thermometer or a scan tool with live data streaming, and a clean shop rag.
- Safety Gear: Nitrile gloves and safety glasses are mandatory, as trace amounts of ethylene glycol are toxic and can cause skin irritation.
- Technical Prerequisites: A service manual for your specific vehicle make and model is necessary to retrieve the exact resistance-to-temperature curve, as different manufacturers utilize varying thermistor calibrations.
- Budget and Time: The process generally requires 30 to 60 minutes, assuming the sensor is accessible and the diagnostic tools are already on hand.
Procedural Workflow for ECT Resistance Verification
The most reliable method for testing an ECT is the resistance test, which determines if the internal thermistor is functioning within the manufacturer’s specified parameters.
Step 1: Locate and Identify the Sensor
Identify the ECT sensor, typically located near the thermostat housing, cylinder head, or intake manifold. It is usually a two-wire sensor with a plastic electrical connector. Avoid confusing the ECT with the coolant temperature sender unit, which is typically a single-wire device designed solely to drive the dashboard gauge.
Step 2: Perform the Cold Resistance Test
Disconnect the electrical harness from the sensor. Set your digital multimeter to the ohms (resistance) setting. Place the probes on the two terminals of the sensor. Record the resistance reading while the engine is cold. Compare this value against the manufacturer’s specifications for the current ambient temperature. If the resistance is infinite or zero, the sensor has an internal open or short circuit and must be replaced.
Step 3: Conduct the Dynamic Heat Test
If the cold resistance test yields results within the expected range, move to the dynamic test. Reconnect the harness and start the engine. Use a scan tool to monitor the engine coolant temperature data stream or aim an infrared thermometer at the sensor housing to confirm the actual physical temperature. Compare the scanner reading to the physical temperature. A significant discrepancy, such as the computer reading 180 degrees while the engine is physically at 120 degrees, indicates a skewed sensor signal.
Warning: Never remove the coolant reservoir cap or the ECT sensor while the engine is at operating temperature, as the pressurized coolant will erupt, causing severe thermal burns.
Pro-Tip: If you lack a scan tool, you can remove the sensor entirely and place it in a container of water with a digital kitchen thermometer. Heat the water slowly and measure the resistance at various temperature points to create your own bench-test curve.

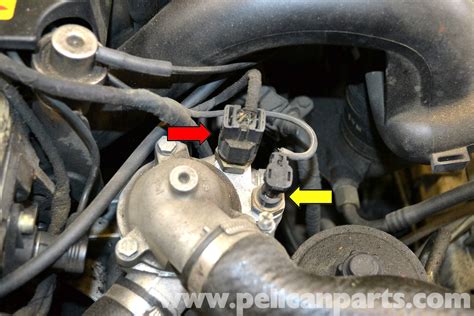

Mercedes Cla Coolant Temperature Sensor Location at Matthew Mcguirk blog
Technical Parameters and Resistance Thresholds
The following table illustrates the typical behavior of a standard Negative Temperature Coefficient (NTC) thermistor, where resistance decreases as temperature increases. Note that these are generalized industry standards; always consult your vehicle's specific service manual for the exact resistance-to-temperature coefficient.
| Coolant Temperature (Celsius) | Coolant Temperature (Fahrenheit) | Expected Resistance (Ohms Range) |
|---|---|---|
| -10 | 14 | 7,000 to 11,000 |
| 20 | 68 | 2,000 to 3,000 |
| 50 | 122 | 700 to 900 |
| 80 | 176 | 250 to 350 |
| 100 | 212 | 150 to 200 |
Common Failure Modes and Practical Field Remedies
Sensors rarely fail in a binary "on-off" fashion; they frequently experience "signal drift" or intermittent failures that plague the engine control unit (ECU).
- Sensor Signal Bias: The sensor provides a signal that is technically within range but consistently skewed, causing the ECU to deliver an overly rich fuel mixture. If you notice black exhaust smoke or significantly reduced fuel economy without a Check Engine Light, test the sensor for resistance drift at operating temperature.
- Corroded Electrical Terminals: High resistance in the wiring harness due to oxidation can mimic a failing sensor. Clean the harness pins with electrical contact cleaner and ensure a snug, corrosion-free connection before condemning the physical sensor.
- Intermittent Open Circuits: Thermal expansion can cause an internal fracture in the thermistor to open up only when the engine is hot. If the car runs fine cold but stalls or surges after warming up, perform the resistance test while gently wiggling the sensor body or connector to detect an intermittent signal loss.
Frequently Asked Questions
Can I drive with a bad coolant temperature sensor?
While you may technically be able to drive the vehicle, it is not recommended. A faulty ECT will cause the engine to operate in "open loop," leading to poor fuel efficiency, excessive emissions, and potential engine damage due to incorrect timing or overheating.
What are the symptoms of a bad ECT sensor?
Common symptoms include a rough idle, poor fuel economy, hard starting in cold weather, overheating, and an illuminated Check Engine Light. In some vehicles, the cooling fans may run constantly as a default failsafe if the ECU loses the signal from the sensor.
Is it necessary to drain the coolant to replace the sensor?
For most vehicles, you can perform a "quick swap" by removing the old sensor and immediately threading in the new one to minimize fluid loss. However, you should be prepared to top off the cooling system and bleed any trapped air from the lines after the replacement is complete.
Does a bad ECT sensor always trigger a Check Engine Light?
No, a sensor can drift out of calibration without triggering a fault code. If the sensor remains within the logical operating parameters of the ECU, it may continue to report incorrect data that affects engine performance without ever setting a specific Diagnostic Trouble Code.
