How To Test An Electric Water Heater Thermostat: A Comprehensive Diagnostic Guide
Testing an electric water heater thermostat requires a digital multimeter to measure continuity and voltage across the upper and lower control units while the unit is live and de-energized. A functional thermostat must show zero resistance (continuity) when calling for heat and infinite resistance (open circuit) when the water reaches the set temperature threshold, typically between 120 and 140 degrees Fahrenheit.
Pre-Operation Safety and Diagnostic Tooling Requirements
Diagnosing a faulty water heater thermostat is a precise electrical procedure that demands strict adherence to safety protocols. Before opening the access panels, you must recognize that electric water heaters operate at 240 volts, which is lethal if handled improperly. Ensure the circuit breaker is clearly marked and locked out during the testing phase.
- Essential Diagnostic Tools: A high-quality digital multimeter (rated for at least 300V AC), a non-contact voltage tester for safety verification, a flat-head or Phillips screwdriver, and an insulated pair of wire cutters.
- Required Knowledge Standards: Familiarity with the National Electrical Code (NEC) regarding water heater wiring and a basic understanding of how Ohm’s law applies to resistive heating elements.
- Time and Budget Benchmarks: The diagnostic process generally takes 30 to 45 minutes for an experienced homeowner. Professional diagnostic equipment costs range from $30 to $100, significantly lower than a plumber’s service call fee.
- Mandatory Environmental Conditions: Ensure the work area is dry, well-lit, and that you are wearing rubber-soled shoes to prevent unintended grounding.
Systematic Thermostat Diagnostic Workflow
Step 1: Verification of Power Supply and Reset
Before testing internal components, verify that the unit is receiving power. Turn the circuit breaker to the "On" position. Remove the upper access panel and insulation. Locate the red reset button on the upper thermostat. If the button has popped out, the high-limit switch has triggered, indicating a potential short or an overheating condition. Press it firmly. If it clicks into place, the heater may resume operation. If it trips again immediately, the thermostat is likely defective or the element is grounded.
Step 2: Testing for Voltage Delivery
With the power turned back on, set your multimeter to the AC voltage setting (600V range). Place the multimeter leads across the two top screw terminals on the upper thermostat where the power supply enters. You should read approximately 240 volts. If you do not read voltage here, the issue is with your home’s breaker panel or wiring, not the heater itself. Next, check the terminals leading to the upper heating element. If the thermostat is calling for heat, you should read 240 volts. If no voltage is present while the thermostat is turned up, the thermostat is likely failing to close the internal contact.
Step 3: Continuity Testing with Power Disconnected
Warning: You must turn off the circuit breaker at the main panel before proceeding to continuity testing. Attempting to test resistance on a live circuit will destroy your multimeter and pose a severe shock hazard.
Once power is off, disconnect the wires from the thermostat terminals to isolate the component. Set your multimeter to the Ohms or Continuity setting (often represented by a speaker symbol). Place the leads on the contact terminals. If the thermostat is "calling for heat," the meter should read near 0 Ohms (continuity). If you move the dial or if the unit is "satisfied" (reaches temperature), the reading should jump to "OL" or infinity. If you maintain continuity regardless of the dial setting, the contacts are fused shut.
Step 4: Assessing the Lower Thermostat
The lower thermostat functions similarly but is controlled by the upper unit. Disconnect the power. Access the lower panel and remove the wires from the lower heating element. Perform the same continuity test on the lower thermostat terminals. If the lower thermostat fails to show continuity when the water is cold, it cannot trigger the heating element, resulting in tepid or cold water.

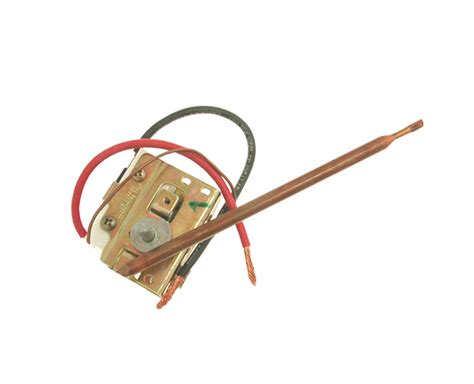

Are Electric Water Heater Thermostats Universal at Kathleen Perry blog
Comparative Diagnostic Parameters for Water Heater Components
| Component | Normal State (Cold) | Normal State (Hot) | Failure Indication |
|---|---|---|---|
| Upper Thermostat | Continuity (0 Ohms) | Open (Infinite) | No voltage output to element |
| Lower Thermostat | Continuity (0 Ohms) | Open (Infinite) | Element never receives power |
| Heating Element | 10 to 16 Ohms | 10 to 16 Ohms | Reading 0 or Infinite (Open) |
| High-Limit Switch | Closed (Continuity) | Open (Safety Trip) | Button stays popped out |
Common Failure Scenarios and Field Remedies
- Root Cause: Stuck Contact Points. Over time, the internal relay contacts in the thermostat can weld together due to electrical arcing.
- Actionable Fix: Replace the thermostat unit entirely. Contact points cannot be repaired safely; replacement is the only industry-standard remedy.
- Root Cause: High-Limit Switch Trip. The water temperature exceeded 170 degrees Fahrenheit, causing the manual reset to act as a safety barrier.
- Actionable Fix: Check the temperature setting on the dial; if it is set above 140 degrees, lower it. If the switch continues to trip, the thermostat is likely failing to regulate temperature accurately and must be replaced.
- Root Cause: Corroded Terminal Connections. Humidity and heat can cause oxidation at the screw terminals, leading to high resistance and "burning" of the wires.
- Actionable Fix: Clean the wire ends with fine-grit sandpaper and ensure the screw terminals are tightened to the manufacturer's specified torque. If the wire insulation is melted, trim back to fresh wire and use new terminals.
Frequently Asked Questions
Can I test a water heater thermostat without a multimeter?
No, it is not possible to accurately diagnose a thermostat without a multimeter. While you can verify power with a non-contact voltage tester, identifying an internal mechanical failure requires measuring resistance or voltage flow, which only a multimeter can perform safely and accurately.
What should the water heater temperature be set to?
Industry standards suggest setting the thermostat between 120 and 125 degrees Fahrenheit. This range is sufficient to kill most bacteria, including Legionella, while significantly reducing the risk of scalding injuries in residential settings.
How do I know if my heating element is the problem rather than the thermostat?
If your thermostat passes the continuity test but the water is still cold, the heating element is likely the culprit. You can test the element by setting your multimeter to Ohms and measuring the resistance across the two element terminals; a functional element typically reads between 10 and 16 Ohms.
Why does my water heater make a clicking sound?
The clicking sound is often the mechanical relay inside the thermostat engaging or disengaging as it reacts to temperature fluctuations. While a single click is normal, rapid or continuous clicking indicates the thermostat is struggling to maintain a stable connection and should be tested for failure.
Maintain Your Water Heater Performance
Regular inspection of your water heater’s electrical components ensures long-term efficiency and prevents costly emergency plumbing repairs. If your testing indicates a failed thermostat, replace the unit promptly to restore consistent hot water delivery to your home.
