How To Test Diodes: The Complete Step-by-Step Diagnostic Guide

Testing a semiconductor diode requires evaluating its asymmetric current flow by measuring forward voltage drop and checking for reverse-bias isolation using a digital multimeter's diode test mode. A functional silicon diode typically displays a forward drop between 0.5V and 0.8V, while a defective unit will either register a dead short (0V) or an open circuit (OL) in both directions.

Pre-Operation & Equipment Checklist

Properly diagnosing semiconductor components requires methodical preparation to protect both the operator and the sensitive circuitry under test. Working with solid-state electronics demands an understanding of electrostatic discharge (ESD) safety, circuit isolation, and the operating thresholds of various semiconductor junctions. Whether you are troubleshooting a linear power supply bridge rectifier, a flyback protection diode across an inductive relay, or a surface-mount switching diode on a modern printed circuit board, following a standardized testing protocol ensures accurate conclusions.

• Essential Gear, Tools, and Materials:


  • Digital Multimeter (DMM) featuring a dedicated diode test mode (identified by the diode symbol: a triangle pointing to a vertical line).
  • Test probes with sharp needle-tip attachments for probing fine-pitch components.
  • Precision low-wattage desoldering pump or hot air station (if in-circuit testing yields ambiguous results).
  • Isopropyl alcohol (99%) and lint-free swabs for cleaning flux residue.
• Mandatory Prerequisite Knowledge and Standards:


  • Familiarity with the cathode (banded end) and anode (unbanded end) designations of standard diodes.
  • Understanding of semiconductor band gaps and silicon versus Schottky or germanium voltage drop variations.
  • Adherence to NFPA 70E electrical safety guidelines when dealing with capacitors that retain lethal residual energy.
• Estimated Benchmarks:


  • Average diagnostic duration: 3 to 5 minutes per component.
  • Estimated tool investment for a professional-grade auto-ranging DMM: $50 to $150 USD.

Step-by-Step Diode Diagnostic Workflow

Step 1: De-Energize and Isolate the Circuitry

Before applying any diagnostic instruments to a printed circuit board, ensure that all power sources are completely disconnected. Unplug AC mains cords, remove batteries, and allow adequate time for high-capacity bulk filter capacitors to bleed down to safe voltage levels. Measuring a live circuit with a multimeter set to diode mode can instantly destroy the meter's internal circuitry due to overvoltage conditions.

Warning: Never test a diode while it is connected to a live circuit. Residual stored energy in nearby capacitors can skew readings or permanently damage your test equipment.

Step 2: Configure the Digital Multimeter

Turn your digital multimeter's rotary dial to the diode test position, which sources a small test current (typically around 1mA) and measures the resulting voltage drop across the test leads. Press any secondary function buttons if necessary to ensure the screen displays the diode symbol and units in volts (V). Verify the meter's battery health indicator, as a low battery will compromise the accuracy of the internal constant-current source.

Step 3: Perform the Forward-Bias Measurement

Identify the anode and cathode terminals of the diode. Touch the red (positive) test probe to the anode and the black (negative) test probe to the cathode. Observe the multimeter display. A healthy silicon diode will display a stable forward voltage drop ranging from 0.500V to 0.800V. Schottky diodes will typically register lower values between 0.150V and 0.450V, while germanium diodes fall around 0.200V to 0.300V.

Pro-Tip: If you measure an in-circuit diode and the reading fluctuates wildly, parallel circuit paths like low-value resistors or transformer windings are interfering. You must lift one leg of the diode from the PCB to obtain an isolated, accurate measurement.

Step 4: Perform the Reverse-Bias Measurement

Reverse the probe connections by touching the red (positive) test probe to the cathode (banded end) and the black (negative) test probe to the anode. A healthy diode blocks reverse current flow, causing the multimeter to display "OL" (Open Loop) or "1." on the screen. This signifies that the internal depletion region has widened and infinite resistance is present under reverse polarization.

Step 5: Interpret the Comprehensive Test Results

Synthesize the data gathered from both forward and reverse bias tests to determine the physical health of the component:

• Good Diode: Low forward voltage drop (0.5V - 0.8V) in one direction, and "OL" in the reverse direction.
• Short-Circuited Diode: Reads near 0.000V with an audible continuity beep in both forward and reverse directions. This indicates the internal PN junction has fused together.
• Open-Circuited Diode: Reads "OL" in both forward and reverse directions. This indicates the microscopic bond wires inside the package have broken.
• Leaky Diode: Displays a normal forward drop but registers a low resistance value (e.g., 0.200V) instead of "OL" during the reverse-bias test.

Semiconductor Diode Technical Characteristics Matrix

Troubleshooting Common Diode Diagnostics Challenges

• In-Circuit Parasitic Impedance Readings


  • Root Cause: Parallel resistors, inductors, or integrated circuit pins are creating alternative electrical paths, tricking the multimeter into showing false forward voltage drops or low reverse resistance.
  • Actionable Fix: Desolder one terminal of the component from the circuit board to isolate it completely before repeating the forward and reverse bias tests.
• Intermittent Thermal Failures


  • Root Cause: Microscopic cracks in the internal silicon die or bond wires expand when operating at high temperatures, causing the diode to fail only under load.
  • Actionable Fix: Apply localized heat using a soldering iron tip or a heat gun while monitoring the component, or use freeze spray to expose thermal intermittency, followed by immediate replacement with a higher current-rated part.
• Ambiguous Readings on High-Voltage Diodes

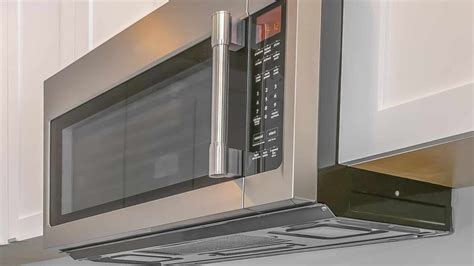

  • Root Cause: Specialized high-voltage assemblies (like those found in microwave oven diode stacks) require a higher forward voltage threshold than a standard digital multimeter's internal battery (typically 9V max) can supply.
  • Actionable Fix: Use a dedicated high-voltage bench power supply in series with a current-limiting resistor to test the breakdown and forward characteristics safely.

Frequently Asked Questions

Can I test a diode using the resistance (ohm) setting instead of diode mode?

While you can measure resistance, the ohm setting is far less reliable than dedicated diode mode. A standard ohmmeter uses a very low test current and arbitrary scale that may not overcome the semiconductor threshold voltage, often resulting in misleading readings. Always use the dedicated diode symbol mode for accurate junction evaluation.

What does it mean if my multimeter beeps during a diode test?

A continuous audible beep during a diode test usually indicates a short circuit. If the meter beeps in both forward and reverse directions, the internal PN junction has failed completely and the diode must be replaced.

Why do Schottky diodes have a lower forward voltage drop than standard silicon diodes?

Schottky diodes utilize a metal-semiconductor junction rather than a traditional P-N semiconductor junction. This architectural difference results in a lower barrier height, leading to a faster switching speed and a reduced forward voltage drop.

How do I identify the anode and cathode if the printed band has worn off?

You can easily identify the terminals by placing your multimeter in diode mode and probing the component in both directions. When the meter displays a valid forward voltage drop (e.g., 0.6V), the probe connected to the red lead is touching the anode, and the probe connected to the black lead is touching the cathode.

Can a diode test good on a meter but still fail in operation?

Yes, a static bench test only verifies the basic DC characteristics at low current and room temperature. Diodes can still fail under high-frequency switching stresses, excessive thermal loads, or high reverse-voltage spikes that exceed their Peak Inverse Voltage (PIV) rating.

Mastering component-level troubleshooting ensures rapid restoration of electronic systems and prevents unnecessary board replacements. Equip your workbench with reliable diagnostic instruments and apply these standardized verification steps on your next repair project.
