How To Test Coil Packs: A Professional Diagnostic Guide

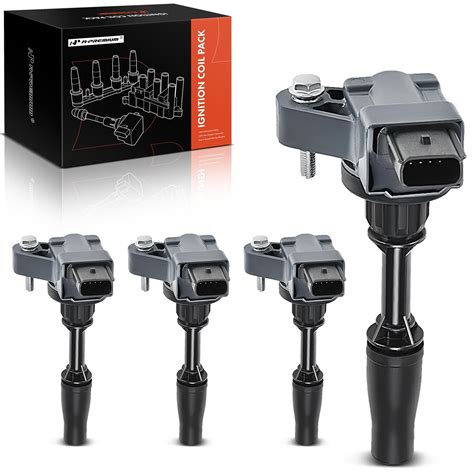

Testing coil packs requires a digital multimeter, an OBD2 scanner, and a methodical approach to measure primary and secondary winding resistance or check for live spark output. A healthy modern coil-on-plug (COP) unit typically shows specific primary resistance in the low ohms range, while failing components will present as open circuits, internal shorts, or erratic voltage drops that trigger cylinder misfire codes.
Pre-Operation & Equipment Checklist
Accurate ignition coil diagnostics rely on proper safety precautions, specialized diagnostic equipment, and an understanding of high-voltage automotive electrical systems. Working around secondary ignition circuits exposes technicians to thousands of volts, making personal protective equipment and insulated tools mandatory.
- Essential Gear, Tools, and Materials:
- Digital Multimeter (DMM) capable of measuring ohms, AC/DC voltage, and resistance with high accuracy.
- OBD2 Diagnostic Trouble Code (DTC) scanner or bi-directional scan tool.
- Insulated hand tools, metric socket set, and a soft-bristled wire brush.
- Spark-plug gap tester or an inline spark tester (neon bulb style).
- Safety glasses and dielectric grease for reinstallation.
- Mandatory Prerequisite Knowledge and Standards:
- Familiarity with low-voltage primary circuits (12V feed, ground, and ECU switching signal) and high-voltage secondary windings.
- Understanding of standard automotive safety procedures to prevent electrical shock or fuel ignition.
- Estimated Budget and Duration Benchmarks:
- Diagnostic timeframe: 30 to 60 minutes depending on engine configuration (inline-4 versus transverse V6/V8).
- Equipment cost: $20 to $100 for a quality DMM and spark tester if not already owned.
Diagnostic Workflow for Ignition Coils
Step 1: Scan for Diagnostic Trouble Codes
Connect an OBD2 scanner to the vehicle's data link connector under the dashboard and retrieve any stored or pending trouble codes. Look for specific misfire codes such as P0300 (random/multiple cylinder misfire) or individual cylinder codes ranging from P0301 to P0308, which point directly to a failing coil pack, spark plug, or fuel injector. Note any related P0351 through P0358 primary/secondary ignition circuit malfunction codes, as these directly implicate the wiring harness, driver circuit, or the coil itself.
Pro-Tip: If multiple misfires appear on cylinders sharing a common power feed or ground, check the engine wiring harness and main engine fuses before condemning individual coil packs.
Step 2: Perform a Visual and Physical Inspection
Disconnect the negative battery terminal before removing the engine cover and unbolting the individual coil packs from the valve cover or spark plug wells. Inspect the exterior housing for thermal stress, carbon tracking (fine black lines indicating high-voltage arcing), cracked plastic resin, or oil contamination from a failing valve cover gasket. A compromised rubber boot or oil-soaked terminal well will frequently cause secondary voltage to ground out prematurely, mimicking an internal coil failure.
Step 3: Measure Primary and Secondary Resistance (Bench Test)
Set your digital multimeter to the appropriate ohm scale and measure the resistance across the primary terminals of the coil pack, consulting your vehicle service manual for exact manufacturer specifications. Next, test the secondary resistance by placing one probe on the high-voltage spring terminal inside the boot and the other on the primary ground or spark plug contact, ensuring readings fall within factory parameters.
Warning: Never attempt to measure secondary resistance on modern coil-on-plug units containing internal solid-state igniter chips or smart drivers with a standard multimeter, as the high test current can permanently ruin internal circuitry.
Step 4: Conduct a Dynamic Swap Test
Reinstall the suspected faulty coil pack into an adjacent, known-good cylinder (for example, moving a coil from cylinder 1 to cylinder 2). Clear the diagnostic trouble codes using your OBD2 scanner, start the engine, and run it until operating temperature is reached or until the misfire returns. Rescan the system; if the misfire code follows the coil pack to the new cylinder, the coil is definitively defective and must be replaced.
Step 5: Test for Spark Output Using an Inline Spark Tester
Attach an adjustable spark-plug gap tester or an inline neon spark light between the coil pack and a reliable engine ground. Crank the engine or command a spark test via a bi-directional scan tool while observing the spark window. A healthy coil will produce a crisp, bright blue spark capable of jumping a standard 25kV to 30kV air gap, whereas a weak, yellowish spark or total lack of illumination confirms coil pack failure.
Ford Ignition Coil Tester at Maria Kring blog
Technical Comparison of Ignition Testing Methodologies
| Diagnostic Method | Equipment Required | Primary Use Case | Accuracy Level | Safety Risk |
|---|---|---|---|---|
| OBD2 Scan & Code Analysis | OBD2 Scanner | Initial triage and isolating misfiring cylinders | Moderate | Negligible |
| Static Resistance Check | Digital Multimeter (DMM) | Testing traditional unmanaged coils and older COP units | High (for basic windings) | Low |
| Dynamic Swap Test | Hand Tools & OBD2 Scanner | Verifying intermittent or load-dependent failures | Very High | Low |
| Spark Gap Output Test | Inline Spark Tester | Confirming secondary high-voltage generation | High | Moderate (High Voltage) |
Common Failures and Field Fixes
- Root Cause: Internal winding short caused by thermal breakdown and age-related insulation degradation.
- Actionable Fix: Replace the affected coil pack with an OEM-spec or premium aftermarket replacement, and inspect neighboring coils since they have endured similar thermal cycles.
- Root Cause: Oil fouling in the spark plug tube due to a degraded valve cover gasket or spark plug tube seal.
- Actionable Fix: Replace the valve cover gasket set and spark plug seals, clean the spark plug well completely with electrical contact cleaner, and install a new coil boot if the rubber has swelled or degraded.
- Root Cause: Corroded, loose, or oxidized electrical connector terminals at the main wiring harness plug.
- Actionable Fix: Clean the locking connector pins with a specialized terminal brush and electrical contact cleaner, apply a small amount of dielectric grease, and ensure the locking tab secures firmly.
- Root Cause: Secondary voltage arcing (carbon tracking) down the side of the coil housing to the cylinder head wall.
- Actionable Fix: Clean any carbon residue off the engine cylinder head and install a fresh coil pack accompanied by a new, properly gapped spark plug.
Frequently Asked Questions
Can a bad coil pack damage my catalytic converter?
Yes, an uncorrected misfire allows unburned fuel and air mixture to pass directly into the exhaust system where it ignites inside the catalytic converter. This extreme thermal overload rapidly melts the internal ceramic substrate, resulting in catastrophic converter failure and severe exhaust restriction.
Should I replace all coil packs if only one fails?
While replacing all coil packs simultaneously is ideal for high-mileage vehicles to ensure balanced secondary output, it is not strictly necessary if budget is a concern. If your vehicle uses a coil-on-plug setup where one unit has failed from oil contamination or physical damage, replacing just the failed unit and its matching spark plug is standard practice.
How do I know if my spark plugs are causing the misfire instead of the coil?
During your diagnostic procedure, always inspect the spark plug condition or swap the spark plug to a different cylinder along with or independent of the coil pack. If the misfire stays with the spark plug rather than following the coil pack during a swap test, the spark plug gap, electrode wear, or fouling is the true root cause.
Is it safe to drive with a failing coil pack?
Driving with a failing coil pack is strongly discouraged because the continuous raw fuel washing past the cylinder walls strips away essential engine oil lubrication and dilutes the crankcase oil. Furthermore, the unburned fuel will overheat the catalytic converter, leading to expensive secondary repairs.
What causes a brand new coil pack to fail prematurely?
Premature failure in new coil packs is almost always caused by an underlying secondary ignition issue, such as an excessively wide spark plug gap, a failing spark plug putting too much electrical resistance load on the secondary winding, or oil leaking directly into the spark plug well. Always verify the condition of the spark plug and valve cover seals before installing a replacement coil pack.
