How To Test Car Speakers: The Complete Diagnostic Guide
Testing car speakers requires isolating electrical signals from acoustic output using a multimeter, a 9-volt battery test, and a real-time audio sweep. By checking impedance values (typically 4 ohms), verifying polarity, and inspecting voice coils, you can accurately diagnose blown components, wiring faults, or failing head units without unnecessary part replacements.
Pre-Operation & Equipment Checklist
Proper diagnosis of an automotive audio system prevents wasted time and protects sensitive head unit components from accidental short circuits. Before dismantling door panels or dash assemblies, gather the appropriate diagnostic instrumentation and establish baseline safety protocols.
- Essential Gear, Tools, and Materials: Digital Multimeter (DMM), standard 9-volt alkaline battery, short lengths of speaker wire with stripped ends, panel removal tools, a Phillips screwdriver set, and an auxiliary media source or test track CD.
- Mandatory Prerequisite Knowledge and Standards: Familiarity with 12-volt DC automotive electrical basics, basic Ohm's Law (Resistance equals Voltage divided by Current), and standard color-coding for speaker harnesses (such as solid colors for positive and striped colors for negative).
- Estimated Budget and Duration Benchmarks: Total cost for diagnostic tools is under twenty-five dollars if purchasing a basic multimeter, with a standard diagnostic timeframe of 45 to 90 minutes depending on vehicle accessibility.
Step-by-Step Car Speaker Diagnostics
Step 1: Perform the Head Unit Balance and Fader Test
Turn on your vehicle ignition to the accessory position and power on the stereo system. Set the bass, treble, balance, and fader controls to their absolute neutral (center) positions. Systematically adjust the balance fully to the left, then fully to the right, and repeat this with the front and rear fader controls. Listen closely for distortion, complete silence, or erratic volume drops from individual speaker locations.
Pro-Tip: Play an uncompressed audio track featuring a clean vocal or isolated pink noise rather than heavily compressed streaming audio, as clipping in streaming files can mimic blown speaker symptoms.
Step 2: Conduct the 9-Volt Battery Diaphragm Test
Disconnect the wiring harness from the back of the suspect speaker to isolate it from the amplifier or head unit. Take a standard 9-volt battery and momentarily touch the positive battery terminal to the speaker positive terminal and the negative terminal to the speaker negative terminal for no longer than one second. A healthy speaker will produce an audible, low-pitched click or pop, and the speaker cone will visibly thrust outward (or inward, depending on polarity). If the cone remains completely stationary or emits a heavy scratching noise, the voice coil is either seized or structurally burned out.
Step 3: Measure DC Electrical Resistance with a Multimeter
Set your digital multimeter to the resistance setting (Ohms, denoted by the omega symbol), ideally on the 200-ohm scale. Touch the multimeter probes to the corresponding positive and negative speaker terminals. Read the display to check the DC resistance of the voice coil.
Warning: A standard 4-ohm factory or aftermarket speaker should typically register a multimeter resistance reading between 3.2 and 3.8 ohms. If the meter reads zero ohms (a dead short) or displays infinite resistance (an open circuit), the speaker voice coil has failed internally and must be replaced.
Step 4: Check for Continuity and Wiring Faults in the Harness
If the speaker passes both the battery and multimeter resistance tests, the fault may reside within the vehicle wiring. Set your multimeter to the continuity mode (indicated by a diode/speaker symbol with audible beep). Place one probe at the speaker end of the wiring harness and the other probe at the corresponding pin behind the head unit or amplifier. A continuous beep confirms the wire is intact, while silence indicates a broken wire or pinched harness insulation causing an open circuit.

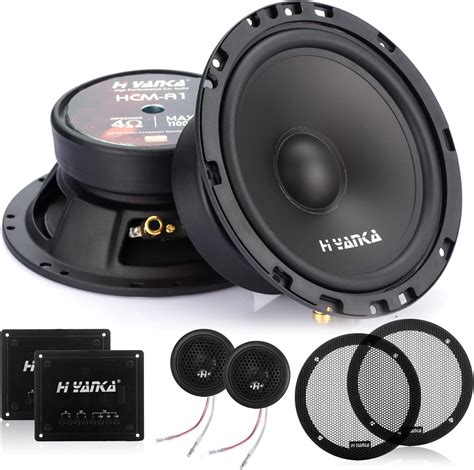

H YANKA 6.5-HCM Component Car Speakers, 600 Watt Pro Car Audio 4 Ohms ...
Comparative Diagnostic Methodologies
| Diagnostic Method | Primary Tool Required | What It Measures | Accuracy Rating | Risk Level |
|---|---|---|---|---|
| Balance/Fader Test | Head Unit Controls | Output functionality & imaging | Low (Qualitative) | Zero Risk |
| 9V Battery Test | 9-Volt Battery | Voice coil mechanical integrity | Medium (Binary) | Low (Brief exposure) |
| Multimeter Ohms Test | Digital Multimeter | Voice coil electrical resistance | High (Quantitative) | Zero Risk |
| Tone Sweep Test | Frequency Generator App | Distortion thresholds & rattles | High (Acoustic) | Low (Keep volume moderate) |
Common Audio System Failures & Field Fixes
- Intermittent Sound Cutouts During Driving:
- Root Cause: Vibration causes loose spade connectors on the speaker terminals or corrosion inside the door wiring boot.
- Actionable Fix: Remove the door panel, clean the terminal tabs with fine-grit sandpaper, crimp new spade connectors securely onto the wires, and wrap connection points in electrical tape or heat shrink tubing.
- Static Crackling Only When Volume is Increased:
- Root Cause: Speaker power handling limits are exceeded, causing the amplifier to clip and deliver square waves that overheat the voice coil.
- Actionable Fix: Lower the maximum head unit gain output, upgrade to a higher wattage amplifier matched to the RMS rating of the speakers, or replace underpowered factory speakers with robust aftermarket alternatives.
- Complete Audio Loss in One Door Panel:
- Root Cause: The speaker cone has delaminated or grounded out against the bare metal of the vehicle door frame due to moisture exposure.
- Actionable Fix: Inspect the speaker foam surround for dry rot, check for water pooling in the door cavity, install a silicone speaker baffle shield, and ensure positive/negative terminals are not touching bare metal.
Frequently Asked Questions
How do I know if my car speakers are blown?
Blown car speakers typically produce a distinct buzzing, rattling, or scratching sound during playback, especially when low frequencies are introduced. If you press gently on the speaker cone and feel it scrape mechanically against the magnet structure, the voice coil is warped.
Can I test car speakers without taking the door panels off?
You can perform a preliminary diagnostic using the head unit balance and fader controls to isolate specific channels. However, to execute definitive multimeter resistance tests or the 9-volt battery test, physical access to the rear speaker terminals is strictly required.
What causes a car speaker to crackle at high volumes?
Crackling at high volumes usually indicates that the amplifier is clipping or that the speaker voice coil is bottoming out against the backplate. This can also happen if the speaker impedance is lower than what the head unit or external amplifier is rated to safely drive.
Why do my car speakers work intermittently over bumps?
Intermittent operation over bumps points directly to a loose physical connection, a pinched wire within the door jamb grommet, or a cold solder joint on the speaker crossover board. Inspect all wiring harnesses and secure any loose spade connectors to resolve the issue.
Secure Your Sound System Today
Mastering how to test car speakers empowers you to pinpoint electrical and acoustic faults with precision, saving you time and diagnostic labor fees. Grab your multimeter today, systematically isolate your components, and restore clean, distortion-free audio performance to your vehicle.
