How To Test A Brake Booster: Comprehensive Diagnostics And Troubleshooting Guide

Effectively testing a vacuum brake booster requires a series of static and dynamic pressure tests to verify atmospheric pressure differentials and diaphragm integrity. A functional booster should provide 18 to 22 inches of mercury (inHg) of vacuum assistance, allowing for a noticeable pedal drop upon engine ignition and holding a steady vacuum for at least 30 seconds after the engine is deactivated.

Essential Diagnostic Tools and Safety Preparation for Brake System Testing

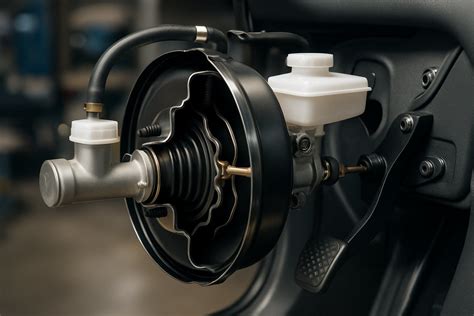

Before initiating a diagnostic sequence on the power brake assist system, it is vital to understand the fundamental physics at play. The vacuum brake booster relies on a pressure differential between the vacuum created by the engine intake manifold (or a dedicated vacuum pump) and the ambient atmospheric pressure. When the diaphragm within the booster fails or the check valve loses its seal, the mechanical advantage provided to the master cylinder is lost, resulting in a dangerously hard brake pedal and significantly increased stopping distances.

Mandatory Pre-Test Checklist

• Safety Gear and Environment: Work on a level surface with the transmission in Park (or Neutral with the parking brake engaged). Wear nitrile gloves to protect against brake fluid, which is highly corrosive to paint and skin.
• Essential Tools:


  • Hand-held vacuum pump with an integrated gauge (e.g., Mityvac).
  • A length of 11/32" or 3/8" vacuum hose.
  • T-fitting for "in-line" vacuum testing.
  • Needle-nose pliers for hose clamp removal.
  • Flashlight for under-dash inspection.
• System Knowledge: Confirm if the vehicle utilizes a standard vacuum-assist booster or a hydraulic "Hydro-Boost" system (common in heavy-duty diesel trucks). This guide specifically addresses vacuum-assist units.
• Estimated Duration: 30 to 45 minutes for a complete diagnostic suite.
• Prerequisite Condition: The engine must be able to reach normal operating temperature to ensure consistent manifold vacuum readings.

Executing the Four Core Diagnostic Tests for Brake Booster Integrity

Testing a brake booster involves more than just a single check; it requires validating the vacuum supply, the internal diaphragm seal, and the atmospheric valve operation. Follow these steps in sequence to isolate the specific point of failure.

Step 1: The Static Pressure and Pedal Feel Test

This initial test determines if the booster is providing any assist and if it can hold a charge of vacuum without the engine running.

1. With the engine turned off, pump the brake pedal five to seven times. You will feel the pedal become increasingly firm as the "reserve" vacuum is depleted.
2. Once the pedal is firm and the travel is minimal, apply steady, moderate pressure to the brake pedal and hold it.
3. While maintaining pressure on the pedal, start the engine.
4. Observation: If the booster is functioning correctly, the pedal should drop slightly—typically about 1/4 to 1/2 inch—as the engine begins to generate vacuum and the booster diaphragm assists your foot's pressure.
5. If the pedal does not move at all or pushes back against your foot (kickback), the booster is not receiving vacuum or the internal diaphragm is ruptured.

Warning: If the pedal sinks all the way to the floor during this test, you likely have a primary hydraulic failure, such as a leaking master cylinder or a ruptured brake line, rather than a booster issue.

Step 2: The Vacuum Retention (Leak-Down) Test

A healthy brake booster must be airtight. Even a small internal leak can lead to a "hard pedal" sensation during sudden stops or when the engine is under high load (low vacuum).

1. Start the engine and let it idle for two minutes to ensure the booster is fully evacuated.
2. Turn the engine off.
3. Wait exactly five minutes without touching the brake pedal.
4. After five minutes, depress the brake pedal. You should get at least two or three "assisted" pumps before the pedal becomes rock hard.
5. Quantitative Threshold: If the first pump is immediately hard, the booster is leaking vacuum through the outer shell, the rear seal (at the pedal pushrod), or the front seal (at the master cylinder interface).

Step 3: Inspecting the Vacuum Check Valve and Supply Line

Many "booster failures" are actually failures of the one-way check valve or the vacuum supply hose. The check valve's job is to keep vacuum inside the booster when the engine is off or under heavy acceleration.

1. Locate the thick rubber hose running from the engine intake manifold to the brake booster.
2. Remove the check valve from the booster (it usually pulls out of a rubber grommet).
3. Disconnect the hose from the valve.
4. Blow into the valve from the side that connects to the engine. Air should not pass through.
5. Blow into the valve from the side that connects to the booster. Air should flow freely.
6. Actionable Fix: If the valve allows air to flow in both directions or blocks it in both directions, replace the check valve and the rubber grommet. A cracked grommet is a frequent source of "hissing" sounds.

Step 4: Professional Vacuum Gauge Diagnosis

For a definitive diagnosis, use a vacuum gauge to measure the actual "pull" from the engine.

1. Disconnect the vacuum hose from the booster's check valve.
2. Connect your vacuum gauge directly to the hose leading to the engine.
3. Start the engine and observe the needle. A healthy engine should produce between 17 and 22 inHg at idle.
4. Analysis: If the vacuum is below 15 inHg, your "hard pedal" is caused by an engine performance issue (such as a vacuum leak elsewhere or retarded ignition timing) rather than a faulty booster.
5. Next, use a T-fitting to connect the gauge between the hose and the booster. Watch the gauge while an assistant presses the brake pedal. The vacuum should drop momentarily and then quickly recover. If the vacuum drops to zero and stays there while the pedal is depressed, the booster's internal atmospheric valve is defective.

Pro-Tip: If you hear a constant hissing sound inside the cabin near the brake pedal while the engine is running, the rear bellows or pushrod seal of the booster is torn. This is an immediate fail condition.

Technical Benchmarks and Symptom Correlation

The following table outlines the standard performance metrics for vacuum-assist systems and what deviations indicate regarding component health.

Identifying Common Failures and Field Fixes

When testing the brake booster, you may encounter specific behaviors that point toward niche failures. Use these scenarios to narrow down your repair strategy.

• Scenario 1: The "Hissing" Brake Pedal




  • Root Cause: The internal atmospheric poppet valve or the rear silicone seal around the input pushrod has degraded. This allows manifold vacuum to pull air directly from the cabin into the intake manifold.
  • Actionable Fix: This is an internal failure. The entire brake booster unit must be replaced. Ensure the new unit includes a new rear foam filter and pushrod boot.

• Scenario 2: Engine Misfire Only When Braking




  • Root Cause: A large tear in the booster diaphragm. When the pedal is depressed, the vacuum leak becomes so significant that it leans out the air-fuel mixture, causing the engine to stumble or stall.
  • Actionable Fix: Replace the booster. Additionally, inspect the spark plugs; if they appear white or blistered, the engine has been running lean due to this vacuum leak for an extended period.

• Scenario 3: Brake Dragging or Slow Pedal Return




  • Root Cause: A broken return spring inside the booster or a misadjusted master cylinder pushrod. If the pushrod is too long, it prevents the master cylinder pistons from fully retracting.
  • Actionable Fix: Use a pushrod depth gauge to measure the gap between the booster pushrod and the master cylinder piston. Adjust the nut on the tip of the pushrod to meet the vehicle manufacturer’s specific clearance (usually around 0.020 inches).

• Scenario 4: Fluid Inside the Vacuum Hose




  • Root Cause: The rear seal of the master cylinder has failed, allowing brake fluid to leak into the brake booster. Brake fluid is highly destructive to the rubber diaphragm inside the booster.
  • Actionable Fix: You must replace both the master cylinder and the brake booster. Simply replacing the master cylinder will not fix the booster, which will eventually fail due to chemical degradation of the diaphragm.

Frequently Asked Questions

Can a bad brake booster cause a spongy pedal?

No, a faulty brake booster typically causes a rock-hard pedal because you are losing the power assist. A spongy or "mushy" pedal is almost always caused by air in the hydraulic lines, old/moisture-contaminated brake fluid, or a failing master cylinder.

How do I tell if the check valve is the problem or the booster?

Remove the check valve and use a hand vacuum pump to apply 20 inHg of vacuum directly to the booster's port. If the booster holds that vacuum for several minutes, the booster is fine, and your problem lies in the check valve, the vacuum hose, or the engine's vacuum supply.

Why does my brake pedal stay down after I let go?

This is often caused by a broken internal return spring within the brake booster or a binding pedal linkage. It can also occur if the internal control valve is stuck, preventing atmospheric pressure from equalizing on both sides of the diaphragm.

Is it safe to drive with a failing brake booster?

Driving with a failing booster is extremely dangerous. While the hydraulic brakes will still technically function, the force required to stop the vehicle increases five to ten times. In an emergency situation, most drivers cannot apply enough physical force to the pedal to engage the ABS or stop quickly.

Does a bad brake booster always make noise?

Not necessarily. While a "hissing" sound is a common symptom of a leaking seal, a booster can fail silently if the internal diaphragm is ruptured or if the vacuum supply line is collapsed internally. Always rely on a vacuum gauge for a definitive test rather than sound alone.

Ensure Your Vehicle Safety with Professional Brake Diagnostics

If your diagnostic tests indicate a vacuum leak or a ruptured diaphragm, prioritize an immediate replacement of the brake booster to restore critical safety performance. For complex issues or if you lack the specialized vacuum gauges required for precision testing, consult a certified ASE technician to ensure your braking system meets OEM specifications.
