How To Test An Air Conditioner Contactor: A Professional HVAC Diagnostic Guide

Testing an air conditioner contactor requires using a digital multimeter to verify the electrical integrity of the 24V electromagnetic coil and the continuity of the high-voltage load contacts. A functional contactor should display a coil resistance between 5 and 20 ohms and show zero voltage drop across closed contacts when the system is calling for cooling.

Essential Diagnostic Tools and Safety Protocols for HVAC Electrical Work

Before attempting to diagnose an HVAC system, it is imperative to understand that air conditioning units operate on high-voltage alternating current (typically 240V in residential settings), which can be lethal. The contactor is the primary switch that bridges this high voltage to the compressor and the condenser fan motor. Proper preparation ensures both the accuracy of your diagnostic data and your personal safety.

Prerequisite Equipment and Knowledge Base

To perform a professional-grade diagnostic on a contactor, you must assemble specific tools and adhere to industry-standard safety practices. The estimated time for this procedure is 20 to 30 minutes, depending on the accessibility of the outdoor unit's electrical panel.

• Digital Multimeter (DMM): Must be capable of measuring AC Voltage (up to 600V), Resistance (Ohms), and Continuity.
• Insulated Hand Tools: A 5/16-inch or 1/4-inch nut driver is typically required to remove the service panel.
• Personal Protective Equipment (PPE): Safety glasses and electrical-rated gloves are highly recommended.
• Voltage Tester: A non-contact voltage detector provides a secondary layer of safety verification.
• Technical Standards: Familiarity with the National Electrical Code (NEC) regarding lockout/tagout (LOTO) procedures is essential for professional applications.

Warning: High-voltage capacitors located near the contactor can hold a lethal electrical charge even after the power is disconnected. Always discharge the start and run capacitors using a properly rated resistor or specialized tool before touching any internal wiring.

Systematic Procedure for Testing AC Contactor Functionality

Testing a contactor involves two distinct phases: de-energized testing (static) and energized testing (dynamic). By following this sequence, you can isolate whether the failure is mechanical, electrical within the coil, or related to the contact surfaces themselves.

Step 1: Power Isolation and Initial Visual Inspection

The most common cause of contactor failure is often visible to the naked eye. Before reaching for your multimeter, isolate the power and inspect the physical state of the component.

1. Locate the outdoor disconnect box near the condenser unit and pull the disconnect handle or switch the breaker to the "Off" position.
2. Remove the service panel on the side of the AC unit to expose the contactor, capacitors, and control board.
3. Use your multimeter to verify that there is zero voltage between the L1 and L2 terminals (the power supply lines).
4. Inspect the contactor for "pitting" or "charring" on the silver-plated contacts. If the contacts look like burnt toast or are welded shut, the contactor must be replaced regardless of other test results.
5. Check for biological obstructions. In many regions, ants and other insects are attracted to the electromagnetic fields of energized contactors; their bodies can get stuck between the contacts, preventing a solid electrical connection.

Step 2: Testing the Electromagnetic Coil Resistance

The coil is the heart of the contactor. When it receives 24V from the indoor thermostat, it creates a magnetic field that pulls the contact bridge down. If the coil is "open" or "shorted," the AC will never turn on.

1. Identify the two small terminals on the sides of the contactor. These are the coil terminals, connected to the thin thermostat wires (usually yellow and blue/common).
2. Remove at least one of the wires from the coil terminals to prevent "back-feeding" through the rest of the control circuit, which would result in an inaccurate reading.
3. Set your digital multimeter to the Ohms (Ω) setting.
4. Place one probe on each of the two coil terminals.
5. Analyze the Reading:


   • 5 to 20 Ohms: This is the standard healthy range for a residential AC contactor coil.
   • OL (Open Line): The internal copper windings are broken (open). The coil cannot create a magnetic field. Replace the contactor.
   • 0.0 to 1.0 Ohms: The coil is shorted. This will likely cause the 24V transformer in your furnace or air handler to blow a fuse or burn out. Replace the contactor.

Step 3: Verifying Mechanical Movement and Plunger Integrity

A contactor can be electrically sound but mechanically seized. This step ensures the physical components can move freely under magnetic force.

1. While the power remains off, use an insulated tool (like the back of a screwdriver) to manually depress the center plunger (the plastic piece that moves in and out).
2. The plunger should move smoothly without any binding or "grittiness."
3. When you release the plunger, the internal springs should snap it back to the "up" or "open" position immediately.
4. If the plunger sticks in the "down" position, it can cause the compressor to run continuously, even when the thermostat is off, leading to a frozen evaporator coil or compressor failure.

Pro-Tip: If the contactor makes a loud "chattering" or "buzzing" sound when the unit tries to start, it often indicates a weak 24V signal or a failing shading ring within the contactor assembly rather than a purely mechanical jam.

Step 4: Dynamic Load Testing (Energized Voltage Test)

This step requires the power to be on. If you are not comfortable working with live high-voltage electricity, stop here and consult a licensed HVAC professional.

1. Reconnect the thermostat wires to the coil terminals.
2. Restore power at the disconnect box.
3. Set the indoor thermostat to "Cool" and lower the temperature setting to ensure a call for cooling.
4. Set your multimeter to AC Volts (V~).
5. Test the Input (Line Side): Measure the voltage across terminals L1 and L2. You should read approximately 240V (ranging from 208V to 253V depending on your local grid).
6. Test the Control Signal: Measure the voltage across the two small coil terminals. You should read approximately 24V to 28V AC.
7. Test the Output (Load Side): If the contactor is pulled in (plunger is down), measure the voltage across terminals T1 and T2 (the wires going to the compressor/fan).
8. Evaluate Voltage Drop: Measure the voltage between L1 and T1, then L2 and T2. Ideally, you should see 0.0V. If you see a significant voltage reading (e.g., 5V or higher) while the contactor is closed, it means the contacts have high resistance due to carbon buildup and are "dropping" voltage, which can overheat your compressor motor.

Step 5: Continuity Testing of Contact Points

If you prefer not to test with live power, you can perform a continuity test on the contacts while they are manually depressed.

1. Ensure all power is disconnected and verified dead with your meter.
2. Set the multimeter to the Continuity (Beep) or Ohms setting.
3. Place probes on L1 and T1.
4. Manually push the plunger down. The meter should beep or show a resistance of less than 0.5 ohms.
5. Repeat this for L2 and T2.

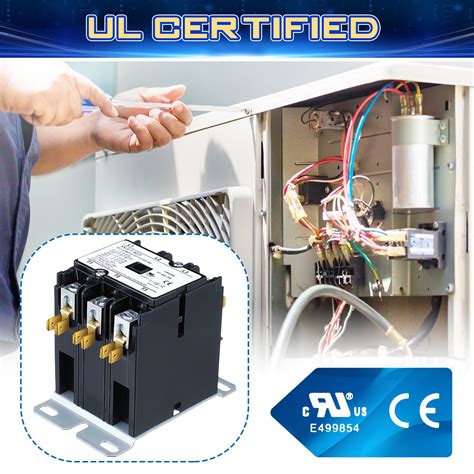

6. If you have a three-pole contactor (used in commercial three-phase systems), repeat for L3 and T3.
7. Failure to show continuity when the plunger is depressed indicates the silver contact pads are either missing, severely burnt, or blocked by debris.

Technical Specifications and Resistance Benchmarks for Standard Contactors

The following table outlines the expected electrical values for a standard single-pole or two-pole residential air conditioner contactor. Values outside these ranges typically necessitate a replacement of the component.

Common Contactor Failures and Field Diagnostic Remedies

In the field, contactor issues often present as "no-cool" calls. Identifying the root cause requires differentiating between a control circuit failure and a component failure.

• Scenario: The Contactor "Buzzes" but the Compressor Won't Start




  • Root Cause: This is often caused by "pitted" contacts that have developed a layer of non-conductive carbon. The coil is pulling the contacts together, but the electricity cannot jump the gap to the compressor.
  • Actionable Fix: Verify voltage on the T1/T2 terminals. If 240V is present at L1/L2 but not T1/T2 while the plunger is down, replace the contactor immediately. Do not attempt to sand or file the contacts, as this removes the silver plating and leads to rapid failure.

• Scenario: The Outdoor Unit is Silent and the Contactor Plunger is Up




  • Root Cause: The 24V control signal is either not reaching the coil, or the coil itself is "open."
  • Actionable Fix: Measure voltage at the coil terminals. If you have 24V but the plunger isn't moving, check the coil resistance. If resistance is OL, the coil is burnt out. If you have 0V at the coil, the problem is not the contactor; check the thermostat, the float switch (drain pan), or the high/low pressure switches.

• Scenario: The Contactor is Welded Shut (Plunger is Down with No Signal)




  • Root Cause: High amperage (often caused by a failing compressor or a bad capacitor) has generated enough heat to melt the silver contacts together.
  • Actionable Fix: Disconnect power and try to pull the plunger up. If it is fused, replace the contactor. Crucially, you must also test the dual-run capacitor and the compressor’s amperage draw, as a welded contactor is usually a symptom of a larger electrical draw issue.

• Scenario: Ants or Debris Inside the Contact Housing




  • Root Cause: Visual obstruction preventing the copper bridge from touching the brass terminals.
  • Actionable Fix: Turn off power and use compressed air or a small brush to clean the contact area. If the contacts are not pitted, the unit may return to service. However, professional best practice is to install a "sealed" or "covered" contactor to prevent future insect ingress.

Frequently Asked Questions

Can I spray WD-40 on my AC contactor to stop it from sticking?

No, you should never use lubricants or flammable sprays on a contactor. The electrical arc generated every time the contactor closes can ignite the residue, and lubricants will attract dust and debris, leading to a faster mechanical failure or even an electrical fire.

How many years does a typical air conditioner contactor last?

A standard contactor is rated for approximately 100,000 cycles, which typically equates to 5 to 10 years of service in a residential environment. Factors such as high outdoor temperatures, frequent thermostat cycling, and poor incoming power quality can significantly shorten this lifespan.

What happens if I install a contactor with the wrong coil voltage?

If you install a contactor with a 120V or 240V coil in a system designed for a 24V control signal, the contactor will never engage. Conversely, applying 120V to a 24V coil will cause the coil to smoke and burn out instantly, potentially damaging the entire HVAC control board.

Why is my contactor making a humming noise?

A slight hum is normal due to the alternating current moving through the coil, but a loud hum usually indicates a "shading ring" failure or dirt in the magnetic core. This causes the plunger to vibrate at 60Hz against the iron core, which will eventually lead to coil failure or "chattering" of the contacts.

HVAC Electrical Maintenance and Support

Accurate diagnostics are the foundation of a reliable cooling system and preventing expensive compressor replacements. If your testing reveals an electrical imbalance or a failed coil, replace the component with an OEM-certified part to ensure system longevity.
