How To Tell If A Water Heater Is Working: The Definitive Diagnostic Guide
Verifying whether a water heater is operational requires a systematic inspection of power or fuel supplies, thermostat calibration, and temperature output tests at the nearest tap. By measuring water temperatures against standard baseline thresholds of 120 degrees Fahrenheit and evaluating mechanical components like pressure relief valves, homeowners can quickly diagnose whether a unit is functioning efficiently or heading toward failure.
Pre-Operation & Inspection Checklist
Before opening service panels or adjusting internal components, establishing a safe working environment and gathering the correct diagnostic tools is essential. Water heaters combine electricity or high-pressure gas with scalding water, demanding careful preparation.
- Essential gear, tools, and materials: Non-contact voltage tester, digital multimeters for electrical continuity testing, a reliable digital pocket thermometer, standard flathead and Phillips screwdrivers, a flashlight, and proper personal protective equipment including insulated gloves and safety glasses.
- Mandatory prerequisite knowledge and safety standards: Understand how to shut off the designated circuit breaker for electric tanks or the gas control valve for atmospheric and power-vent gas units. Familiarize yourself with standard local plumbing codes and manufacturer specifications found on the data rating plate.
- Estimated budget and duration benchmarks: A standard diagnostic evaluation requires zero financial investment if tools are on hand, taking between 20 to 45 minutes from initial visual inspection to temperature verification.
Step-by-Step Diagnostic Workflow
Step 1: Perform the Initial Visual and Audible Inspection
Begin the evaluation by walking up to the water heater and observing its external condition and operational sounds. Listen closely for unusual noises; a healthy unit operates with a very low hum or occasional clicking from the gas burner, whereas rumbling, popping, or whistling indicates severe sediment buildup at the bottom of the tank. Inspect the base and pipe fittings for active leaks, corrosion, or pooling water.
Warning: Never ignore active water pooling around the base of the tank, as this often indicates an internal tank rupture that requires immediate replacement.
Step 2: Verify the Power Source or Fuel Supply
Confirm that the water heater is receiving adequate energy to generate heat. For electric models, locate the dedicated double-pole circuit breaker in your home electrical panel and ensure it has not tripped. If the breaker is active, remove the upper and lower service access panels on the tank (after shutting off power to test) to check that the high-limit reset button has not tripped. For natural gas or propane models, trace the gas supply line to confirm the manual shut-off valve is parallel (open) to the pipe and verify through the viewing port that the pilot light remains steadily illuminated or the electronic igniter is firing correctly upon a call for heat.
Step 3: Test Water Temperature at the Nearest Fixture
Turn on the hot water tap closest to the water heater, typically located in a nearby bathroom or kitchen, and let it run for approximately 60 seconds to purge stagnant water from the supply line. Place a digital thermometer directly into the stream and record the stabilized reading. A properly calibrated residential water heater should deliver water between 115 and 120 degrees Fahrenheit. If the water runs lukewarm or freezing cold despite a verified power source, the internal heating elements, thermostats, or gas control valve require deeper testing.
Step 4: Inspect the Temperature and Pressure Relief Valve
The Temperature and Pressure Relief (TPR) valve is a critical safety mechanism that prevents catastrophic tank explosions. Locate the valve on the side or top of the tank, from which a discharge pipe runs downward toward the floor. Carefully lift the test lever on the valve to allow a small amount of water to discharge into a bucket, then snap it back into place. The valve should immediately reseal and stop leaking water; if it continues to drip or fails to release water, the mechanism is compromised and must be replaced immediately.
| Component / Parameter | Normal Operational Range | Warning Sign of Failure | Recommended Remedial Action |
|---|---|---|---|
| Thermostat Setting | 120 degrees Fahrenheit | Below 110F or above 140F | Adjust dial to 120F; test sensor probe for continuity. |
| Electric Heating Element | 10 to 30 Ohms (resistance) | Infinite ohms (open circuit) or zero ohms (short) | Shut off power, drain partially, and replace element. |
| Gas Burner Flame | Steady, crisp blue flame | Yellow, flickering, or lazy flame | Clean burner assembly and check combustion air intake. |
| Anode Rod Integrity | Solid core with sacrificial material | Depleted core with exposed steel wire | Flush tank and install a new magnesium or aluminum anode rod. |

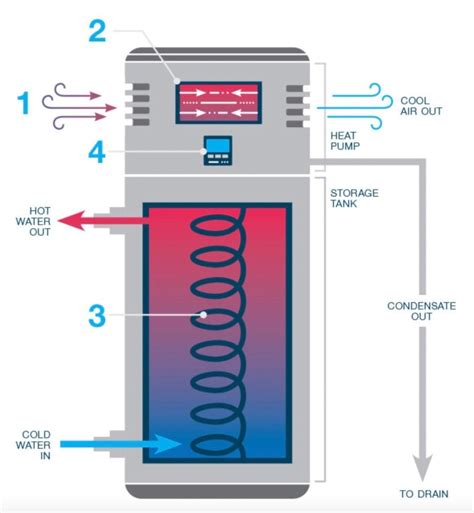

How Do Heat Pump Water Heaters Work? - Hot Water Hub
Common Equipment Failures and Field Fixes
Understanding typical failure symptoms allows for rapid intervention before minor issues escalate into complete system breakdowns.
- Root Cause: Sediment accumulation acting as a thermal barrier between the burner and the water.
- Actionable Fix: Flush and drain the tank completely to remove mineral scale, then install a water softener or schedule annual maintenance flushes.
- Root Cause: A failed upper or lower electrical heating element preventing heat generation.
- Actionable Fix: Test the elements using a multimeter for continuity while power is disconnected, and thread in a replacement element matching the exact voltage and wattage ratings on the data plate.
- Root Cause: A faulty thermocouple failing to hold the gas safety valve open.
- Actionable Fix: Clean the thermocouple tip with fine emery cloth, check the pilot assembly alignment, or replace the thermocouple assembly if millivolt output drops below manufacturer specifications.
- Root Cause: Tripped thermal high-limit switch on electric water heaters due to dry firing or overheating.
- Actionable Fix: Identify the root cause of overheating, fill the tank completely with water, and manually depress the red reset button located on the thermostat housing.
Frequently Asked Questions
How long does it take for a water heater to heat up after testing?
A standard 40-to-50-gallon electric or gas water heater typically takes between 30 to 60 minutes to completely heat a full tank of cold groundwater from roughly 50F to 120F. If the water stays cold after two hours, a heating element, thermostat, or gas burner assembly has failed.
Why is my water heater running but the water is only lukewarm?
Lukewarm water usually points to a failing lower heating element in electric models, a partially blocked dip tube that allows cold water to mix instantly with hot water at the top of the tank, or a thermostat set too low. In gas units, a malfunctioning gas control valve or sediment-choked tank floor can severely inhibit heat transfer.
How do I know if my water heater anode rod needs replacement?
Because anode rods are internal components submerged in water, you must remove the hex-head rod from the top of the tank to inspect it visually. If more than six inches of the steel core wire is exposed or the rod is completely pitted and degraded, you must install a replacement to prevent tank rusting.
Is it normal for a water heater to make popping noises?
Occasional clicking or faint humming is normal during operation, but loud popping, rumbling, or banging noises indicate heavy mineral sediment has hardened at the bottom of the tank. When the burner fires, trapped water beneath the sediment boils instantly, creating steam bubbles that burst upward, causing the distinct popping sound.
How often should I check my water heater's operational status?
Perform a visual and functional check of your water heater, including testing the TPR valve and verifying temperature output, at least twice a year to ensure peak efficiency and catch minor leaks early.
