How To Tell Resistor Wattage: A Complete Guide To Power Ratings

Determining resistor wattage requires analyzing physical dimensions, cross-referencing industry standards, and calculating operational electrical loads using Ohm's Law. Because resistors rarely print their wattage ratings directly on the component body, technicians must rely on a combination of package size, material composition, and circuit math to prevent thermal failure.

Pre-Procedure Planning & Equipment Checklist

A proper assessment of component power handling protects circuits from catastrophic thermal runaway, smoke, and permanent trace damage. Before measuring or calculating power dissipation, gather the necessary instrumentation and establish baseline safety protocols.

• Essential Gear and Tools: Digital Multimeter (DMM) with alligator clips, infrared thermometer or thermal imaging camera, precision digital calipers, power supply unit, and a high-impedance capacitance and resistance meter.
• Mandatory Prerequisite Knowledge: Working knowledge of Ohm's Law, Joule's First Law of heating ($P = I^2R$ and $P = V^2/R$), standard Electronic Industries Alliance (EIA) package size designations, and ambient temperature derating curves.
• Budget and Time Benchmarks: Estimated completion time ranges from 5 to 15 minutes per component. Tooling investment varies from a basic twenty-dollar multimeter to professional-grade thermal inspection equipment.

Step-by-Step Procedure to Identify Resistor Wattage

Step 1: Measure Physical Dimensions with Precision Calipers

Because most through-hole resistors lack printed text, physical body length and diameter serve as the primary indicator of power dissipation capacity. Use digital calipers to measure the ceramic or carbon body length, excluding the lead wires. Compare your measurement to standard EIA sizing charts where a 1/8-watt component typically measures under 4 millimeters, a 1/4-watt measures roughly 6.3 millimeters, and a 1/2-watt measures around 9 millimeters.

Warning: Never rely solely on visual estimation. Miniature metal film resistors often pack higher power ratings into smaller packages compared to older carbon composition types, requiring both dimension checks and material verification.

Step 2: Analyze Material Composition and Construction Style

Inspect the coating material to determine the manufacturing technology, as wirewound, metal film, carbon film, and thick-film surface-mount devices handle heat differently. Carbon composition resistors feature a rough matte finish and bulk thermal mass, whereas modern metal film resistors have a smooth lacquer or epoxy coating with distinct color bands. Surface-mount technology (SMT) resistors rely on standardized rectangular footprints—such as 0402, 0603, 0805, 1206, and 2512—where physical surface area dictates the maximum wattage threshold.

Pro-Tip: SMT package codes often hint at imperial dimensions; for example, a 1206 package measures 0.12 by 0.06 inches and safely dissipates 0.25 watts under standard operating conditions.

Step 3: Calculate Operating Power Using Electrical Measurements

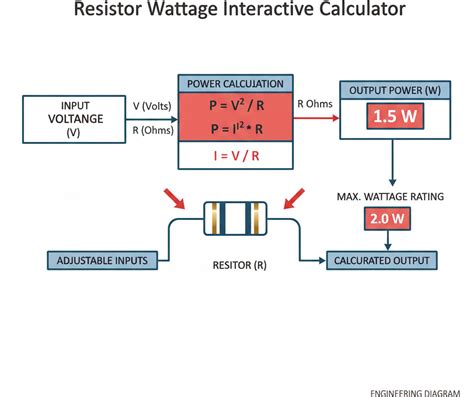

Measure the voltage drop across the resistor using your multimeter set to DC volts, or measure the circuit current passing directly through it by breaking the trace. Apply the power formulas where power in watts equals voltage squared divided by resistance ($P = V^2/R$), or power equals current squared multiplied by resistance ($P = I^2R$). Always use the highest possible voltage or current spike expected during normal device operation to capture true peak dissipation.

Step 4: Apply the 50 Percent Safety Margin Rule

Never select a replacement resistor whose maximum wattage rating matches the exact calculated circuit load. Multiply your calculated operational wattage by two to establish a safe operating margin that prevents excessive surface temperatures and extends component lifespan. For high-reliability applications or enclosed spaces lacking forced-air ventilation, expand this safety margin up to three times the calculated dissipation load.

Resistor Package Dimensions and Standard Wattage Matrix

Common Thermal Failures and Field Fixes

• Root Cause: Operating a resistor near or above its maximum wattage rating in an enclosed, unventilated chassis.


  • Actionable Fix: Upgrade to a higher wattage component footprint or introduce a small DC cooling fan to keep ambient temperatures below the component derating threshold.
• Root Cause: Voltage spikes exceeding the maximum rated working voltage of a miniature surface-mount resistor despite correct power dissipation math.


  • Actionable Fix: Replace the single resistor with a voltage divider network utilizing multiple series-connected resistors to share the total voltage stress safely.
• Root Cause: Incorrect selection of carbon composition replacements in high-frequency RF circuits causing thermal drift.


  • Actionable Fix: Substitute the failing component with a high-stability metal film or wire-wound resistor rated for appropriate high-frequency inductive limits.

Frequently Asked Questions

What happens if I use a resistor with too low a wattage rating?

A resistor with an insufficient wattage rating will rapidly overheat, emit smoke, discolor its color bands or body, and eventually open-circuit, completely breaking the electrical path. In severe overload scenarios, excessive heat can lift circuit board traces, char surrounding components, or cause a fire. Always ensure replacement parts meet or exceed the original power dissipation requirements.

Can I use a higher wattage resistor than the circuit requires?

Yes, using a higher wattage resistor is entirely safe and often recommended for improved circuit longevity and thermal stability. A physical upgrade—such as replacing a 1/4-watt resistor with a 1/2-watt or 1-watt version of the exact same resistance value—will fit the same resistance profile while running much cooler under load. Ensure the physical dimensions fit within the available PCB layout space before soldering.

How do surface-mount resistor size codes relate to wattage?

SMT resistor wattage is determined by the physical surface area of the ceramic substrate and its ability to radiate heat into the copper circuit board pads. Standard metric or imperial codes, such as 0805 or 1206, directly correlate to standardized power handling limits like 1/8 watt and 1/4 watt respectively. Always consult manufacturer datasheets because modern high-purity ceramic substrates can sometimes push higher wattage ratings into smaller footprints.

How does ambient temperature affect resistor wattage ratings?

Resistors feature manufacturer-provided derating curves that specify a linear reduction in power handling capacity as ambient operating temperatures rise above 70 degrees Celsius. If your circuit operates inside a hot enclosure, you must scale down the maximum allowable wattage or select a larger power component to compensate for the elevated thermal environment. Ignoring temperature derating leads to premature component failure even when mathematical power loads appear correct.

Master your electronics workbench by verifying component power ratings and selecting optimal replacements to ensure absolute circuit reliability.
