How To Tell If Furnace Fuse Is Blown: A Professional Diagnostic Guide
A blown furnace fuse interrupts the 24-volt low-voltage control circuit, causing the entire heating system to lose power and shut down completely. To diagnose this failure, you must safely isolate power to the air handler, locate the integrated circuit board, and perform a visual or continuity check using a digital multimeter.
Initial Setup Requirements for Furnace Fuse Inspection
Diagnosing a blown fuse in your heating, ventilation, and air conditioning (HVAC) system requires basic electrical safety awareness and proper tooling. The residential forced-air furnace operates on two distinct electrical supplies: a 120-volt line voltage powering the blower motor and inducer assembly, and a 24-volt control voltage supplied by the control transformer to power the thermostat and gas valve. When a short occurs in the low-voltage circuit—often due to pinched thermostat wires or a failing component—the designated fuse sacrifices itself to protect the expensive control board.
Before attempting any diagnostic or repair procedures, gather the necessary equipment and verify your safety parameters to prevent electrical shock or component damage.
- Essential Gear, Tools, and Materials:
- Digital Multimeter (capable of measuring AC voltage and continuity)
- Flashlight or headlamp
- Needle-nose pliers
- Replacement automotive-style blade fuses (typically 3-amp, 5-amp, or 7-amp depending on the manufacturer specifications)
- Mandatory Prerequisite Knowledge and Standards:
- Working knowledge of electrical safety and NFPA 70 (National Electrical Code) principles
- Understanding of low-voltage (24V AC) control circuits
- Estimated Budget and Duration Benchmarks:
- Budget: Under $10 for a multi-pack of replacement fuses
- Duration: 15 to 30 minutes
Step-by-Step Furnace Fuse Diagnostic Procedure
Step 1: Disconnect Power to the Furnace System
Locate the main power switch for your furnace, which usually resembles a standard light switch mounted on the exterior wall of the furnace utility closet or directly on the unit chassis. Toggle this switch to the "OFF" position. For absolute safety, navigate to your home's main electrical service panel and switch off the dedicated circuit breaker supplying the HVAC equipment.
Warning: Never bypass safety switches or service doors while the 120-volt line voltage is active. Opening the lower blower compartment exposes high-voltage terminals that can cause severe injury or death.
Step 2: Remove the Furnace Access Doors
Remove the upper and lower service panels of the furnace cabinet. Most modern residential units feature removable panels secured by thumb screws, slide-in clips, or standard quarter-turn fasteners. Set the doors aside in a secure location.
Pro-Tip: Many furnaces feature a door safety switch (interlock switch) that automatically cuts power when the panel is removed. However, you should never rely solely on this switch; always turn off the wall switch and breaker to ensure complete isolation.
Step 3: Locate the Integrated Furnace Control Board
Look inside the main compartment to find the integrated furnace control board (sometimes referred to as the ignition control module or integrated circuit board). This is the central hub where multiple low-voltage thermostat wires (labeled R, W, Y, G, C) and high-voltage wiring harnesses connect. The fuse is almost always mounted directly onto the surface of this green or black circuit board.
Step 4: Identify and Extract the Fuse
Examine the control board to locate the fuse, which is typically standard automotive style (ATO/ATC blade fuse) rated for 3, 5, or 7 amps. Using your fingers or a pair of insulated needle-nose pliers, gently pull the fuse straight up out of its plastic harness socket. Exercise caution to avoid flexing or cracking the underlying circuit board.
Step 5: Inspect the Fuse for Failure Indicators

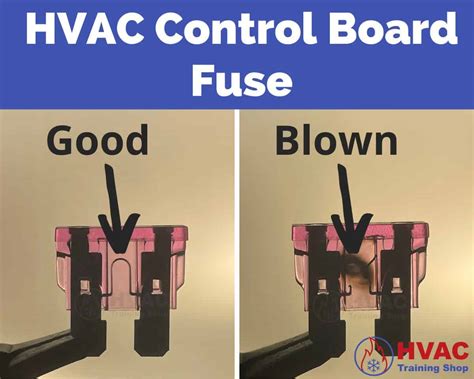

Hold the extracted fuse up to a bright light source to inspect the internal metallic filament. If the thin wire inside the transparent plastic housing is severed, melted, or blackened with soot, the fuse is blown. If you cannot visually confirm a break due to opaque plastic housing or minor discoloration, set your digital multimeter to the continuity setting (ohm scale or diode check) and touch the meter probes to the two metal blade terminals on the bottom of the fuse. A reading of "OL" (open loop) or infinite resistance confirms a blown fuse, while a continuous beep or near-zero ohm reading indicates a healthy fuse.
How to Know If a Fuse Is Blown (Simple Signs & Tests)
Furnace Fuse Ratings, Colors, and System Specifications
Understanding the exact specifications of your furnace fuse prevents improper replacements that could lead to catastrophic control board damage. The table below outlines the standard characteristics of residential HVAC low-voltage fuses.
| Fuse Amperage Rating | Standard Housing Color | Typical Application | Failure Consequence of Over-Fusing |
|---|---|---|---|
| 3 Amp | Violet / Purple | Standard efficiency gas furnaces, basic heating-only controls | Severe board trace melting, transformer burnout |
| 5 Amp | Tan / Light Brown | Mid-to-high efficiency furnaces with electronic ignition | Potential thermal damage to low-voltage wiring harness |
| 7.5 Amp | Brown | Complex multi-stage systems, zoning panels, integrated heat pumps | Destruction of solid-state relays and microprocessors |
Common System Short Circuits and Permanent Failure Fixes
Replacing a blown fuse without identifying the root cause will result in the immediate failure of the new fuse the moment the system calls for heat. Review these frequent field failure scenarios to properly remediate the underlying electrical issue.
- Root Cause: Pinched or Shorted Thermostat Wire
- Actionable Fix: Inspect the low-voltage wire bundle where it penetrates the sheet metal cabinet of the furnace. If the metal has cut through the wire insulation, wrap the exposed conductor in electrical tape and secure the bundle away from sharp edges using zip ties or a plastic grommet.
- Root Cause: Failing External 24V Component (Gas Valve or Contactor)
- Actionable Fix: Disconnect individual low-voltage loads (such as the outdoor condensing unit contactor or indoor gas valve) one by one. Measure the resistance across the component terminals; a reading significantly lower than the manufacturer's specified impedance indicates an internal short requiring component replacement.
- Root Cause: Internal Transformer Secondary Short
- Actionable Fix: Test the output of the control transformer using a multimeter set to AC voltage. If the transformer secondary outputs zero volts despite receiving 120V on the primary side, replace the transformer alongside the blown fuse.
- Root Cause: Incorrect Fuse Amperage Installation
- Actionable Fix: Verify the manufacturer's wiring diagram printed on the inside of the furnace service panel. If a previous technician installed a fuse with an incorrect rating, replace it with the exact amperage specified by the original equipment manufacturer.
Frequently Asked Questions
What causes a furnace fuse to blow repeatedly?
A repeatedly blowing furnace fuse points directly to a short circuit in the 24-volt low-voltage system. Common culprits include damaged thermostat wiring, a failing outdoor condensing unit contactor coil, a defective indoor gas valve, or a malfunctioning condensate overflow switch. You must locate and repair the short before installing a new fuse.
Can I use a car fuse to replace a furnace fuse?
Yes, residential furnaces utilize standard automotive ATO/ATC blade fuses. As long as the physical size matches the socket and the amperage rating is identical to the original manufacturer specification (such as a 3-amp or 5-amp fuse), an automotive replacement is completely safe and electrically identical.
Where is the fuse located on my furnace?
The fuse is almost always plugged directly into the main integrated control board inside the upper or lower service compartment of the furnace. Look for a small colored plastic block with metal blades nestled among the low-voltage thermostat wire screw terminals.
What happens if I put a higher amp fuse in my furnace?
Installing a higher amperage fuse than what the manufacturer specifies removes the critical overload protection designed for your control board. If a short circuit occurs, the excess current will bypass the fuse and instead melt the delicate copper traces on the circuit board or burn out the control transformer, leading to expensive repair bills.
Will a blown furnace fuse stop the blower fan from running?
Yes, when the low-voltage fuse blows, the entire control board loses its 24-volt power supply. Because the thermostat signal cannot reach the board, the system cannot process calls for heating or continuous fan operation, rendering the entire furnace completely inoperable.
