How To Tell If A Flange Is Too Small: Comprehensive Industrial Sizing & Fitting Guide
Determining whether a pipe flange is undersized requires a meticulous evaluation of bolt circle diameters, nominal pipe sizes, and pressure class ratings. A mismatched or undersized flange compromises structural integrity, leads to gasket blowouts, and causes catastrophic joint failure under high-pressure media flows.
Pre-Operation & Inspection Checklist
Diagnosing an undersized flange assembly demands a systematic approach to dimensional verification before system pressurization or during failure analysis. Precision measurement tools and adherence to ASME, ANSI, or DIN engineering standards prevent costly downtime and environmental leaks.
- Essential gear, tools, and materials: Vernier calipers, a digital tape measure, a thread pitch gauge, bolt hole template circles, and a calibrated torque wrench.
- Mandatory prerequisite knowledge: Familiarity with ASME B16.5 and B16.47 piping standards, understanding of face types (Raised Face vs. Flat Face), and bolt torque calculation protocols.
- Estimated budget and duration benchmarks: Field inspections and precise dimensional mapping take approximately 30 to 45 minutes per joint, requiring basic hand tools with zero specialized destructive testing budget.
Step-by-Step Flange Sizing and Inspection Workflow
Step 1: Measure the Outer Diameter (OD) and Bolt Circle Diameter (BCD)

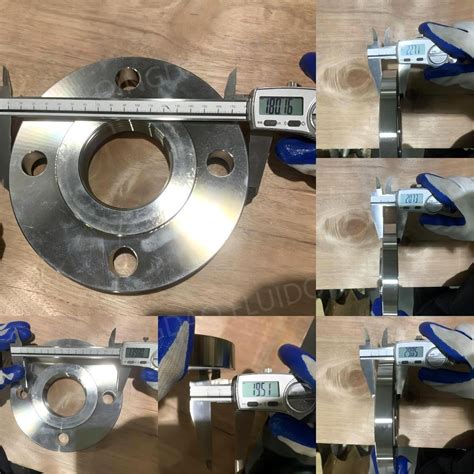

Using your digital caliper or precision tape measure, record the absolute outer diameter of the flange rim from edge to edge. Next, measure the center-to-center distance across opposite bolt holes, known as the Bolt Circle Diameter (BCD). Compare these figures directly against standard ASME or DIN specification charts for your nominal pipe size. If your measured BCD or OD is significantly smaller than the engineering specification for the matching pipe schedule, the flange is physically undersized for that line.
Warning: Never attempt to force bolts into misaligned or undersized bolt holes by reaming the flange holes outward. This removes essential structural material, reduces load-bearing surface areas, and creates eccentric stress concentrations that shear bolts under thermal cycling.
Step 2: Evaluate the Inside Diameter (ID) and Pipe Bore Mismatch
Inspect the inner bore of the flange where it slips over or welds to the pipe spool. An undersized inner diameter will create a severe flow restriction, causing turbulence, localized fluid erosion, pressure drops, and accelerated wall thinning downstream. Measure the flange ID and compare it to the outer diameter and wall thickness of your matching pipe schedule. If the flange ID is smaller than the pipe ID, you are creating a dangerous choke point in the piping network.
Pro-Tip: Always verify the pipe schedule (e.g., Schedule 40, Schedule 80) alongside the nominal pipe size, because a heavy-wall pipe requires a matching bore flange to prevent internal flow ledges.
Step 3: Verify the Flange Rating and Bolt Count Compatibility
Count the total number of bolt holes and check their individual diameter against standard engineering tables for your pressure class (such as Class 150, 300, or 600). An undersized flange often features fewer bolt holes or smaller bolt diameters than required to clamp the gasket adequately against high fluid pressures. If your mating components require an 8-bolt pattern for a Class 300 rating, but your component only accommodates 4 or 6 bolts of that size, the flange is entirely too small for the operational pressure class.
Step 4: Perform a Gasket Seating Surface Assessment
Disassemble the flanged joint and inspect the compressed gasket after removal. An undersized flange often exhibits uneven crushing patterns, with excessive compression near the inner bore and little to no compression at the outer rim because the flange rim flexes or is too small to distribute clamping loads evenly. Measure the raised face diameter to ensure it fully covers the inner and outer perimeters of the selected gasket style, preventing media from eroding the gasket edge.
How to Find the Right Breast Pump Flange Size - Dr. Brown's
Flange Dimensional Standards Comparison
| Nominal Pipe Size (NPS) | ASME Class 150 OD (Inches) | ASME Class 150 BCD (Inches) | Number of Bolt Holes | Standard Bolt Diameter (Inches) |
|---|---|---|---|---|
| 2 inch | 6.00 | 4.75 | 4 | 0.625 (5/8) |
| 3 inch | 7.50 | 6.00 | 4 | 0.625 (5/8) |
| 4 inch | 9.00 | 7.50 | 8 | 0.625 (5/8) |
| 6 inch | 11.00 | 9.50 | 8 | 0.750 (3/4) |
| 8 inch | 13.50 | 11.75 | 8 | 0.750 (3/4) |
Common Joint Failures and Field Fixes
Root Cause: Excessive bolt bending and thread stripping caused by forcing standard bolts through undersized or misaligned bolt circles.
- Actionable Fix: Replace the undersized flange with the correct ASME/ANSI specification component, and use tapered alignment pins to check true geometric fit-up before welding or final bolting.
Root Cause: Blowout of spiral-wound gaskets due to insufficient flange rim width (undersized OD) failing to provide adequate clamping surface area.
- Actionable Fix: Upgrade to a higher pressure-class flange (e.g., moving from Class 150 to Class 300) which features a wider rim, larger OD, and heavier cross-section to withstand hydraulic thrust forces.
Root Cause: Severe cavitation and localized erosion at the flange-to-pipe interface resulting from an undersized inner bore restricting media flow.
- Actionable Fix: Cut out the undersized weld-neck or slip-on flange, machine or source a component with an ID matching the exact internal diameter of the pipe schedule, and perform a full-penetration butt weld.
Frequently Asked Questions
Can I use a reducer if my flange is too small for the pipe?
No, introducing a reducer directly at a flange face disrupts laminar flow and creates severe turbulence unless designed as an engineered reducing flange. If the flange bore is simply smaller than the pipe, the component is mismatched and must be replaced with the correct nominal size.
What happens if a flange has fewer bolt holes than required?
A flange with fewer bolt holes cannot distribute the necessary bolt preload evenly across the gasket seating surface. This leads to uneven gasket compression, joint separation under pressure, and hazardous media leaks.
How do I distinguish between an ANSI Class 150 and Class 300 flange?
Class 300 flanges feature a larger outer diameter, a larger bolt circle diameter, thicker rims, and often more or larger bolt holes than Class 150 flanges of the exact same nominal pipe size. Measuring the OD and BCD is the definitive way to identify the class rating.
Is it safe to machine an undersized flange bore?
Machining the inner diameter of an undersized flange is acceptable only if the remaining wall thickness of the hub and neck meets minimum structural design codes. If structural integrity or pressure ratings are compromised, the flange must be replaced entirely.
Ensure Safe and Compliant Piping Operations Today
Never leave structural integrity to chance when dealing with pressurized industrial systems and mismatched hardware. Consult certified engineering charts and upgrade undersized components immediately to maintain compliance and protect facility personnel.
