How To Tell If An Expansion Tank Is Bad: Complete Diagnostic & Testing Guide

A failing expansion tank in a closed-loop plumbing or heating system typically manifests as a waterlogged internal bladder, a compromised Schrader valve, or complete loss of pre-charge air pressure. Diagnosing a bad tank requires checking the weight of the unit, measuring the air pressure at the valve, and listening for water sloshing inside the steel shell.

Pre-Operation & Equipment Checklist

A systematic diagnostic approach ensures accurate assessment without risking thermal shock or pressure spikes in closed potable water or hydronic heating loops. Proper safety gear and calibrated diagnostic instruments are mandatory before isolating system components.

• Essential Gear, Tools, and Materials:


  • Digital tire pressure gauge or standard dial pressure gauge with a Schrader valve fitting
  • Manual bicycle pump or air compressor for pre-charge adjustments
  • Standard plumber's tape (PTFE) and wrenches for isolation valve operation
  • Safety glasses, work gloves, and a towel or bucket for potential residual water drainage
• Mandatory Prerequisite Knowledge and Standards:


  • Understanding of ASME (American Society of Mechanical Engineers) boiler and pressure vessel code basics
  • Familiarity with local backflow prevention codes and thermal expansion principles
  • Knowledge of system operating pressures (typically 12 to 15 PSI cold for residential hydronic systems, and 40 to 60 PSI for domestic water heaters)
• Estimated Budget and Duration Benchmarks:


  • Cost: Free for initial diagnostics (requires zero new parts if testing tools are on hand)
  • Time: 15 to 30 minutes for a complete inspection and pressure check

Step-by-Step Diagnostic and Testing Workflow

Step 1: Visual Inspection and Weight Check

Begin the diagnostic process by visually examining the exterior of the expansion tank for signs of rust, corrosion, physical denting, or weeping joints around the threaded connection. Gently shake or push the tank to gauge its weight.

• A healthy expansion tank contains a flexible butyl rubber bladder that separates the interior into an air chamber and a water chamber.
• If the bladder has ruptured, water completely fills the steel shell, making the tank feel disproportionately heavy, solid, or completely waterlogged.
• If the tank feels light and hollow, the air charge is likely still intact, though pressure must still be verified with a gauge.

Warning: Never attempt to unscrew, adjust, or remove an expansion tank while the system is pressurized and hot. Relieve system pressure and allow the water to cool to ambient temperature to prevent severe scalding injuries or catastrophic piping failure.

Step 2: Perform the Tap Test

Tap the top and the bottom of the expansion tank shell using a screwdriver handle or a small mallet. Listen closely to the acoustic feedback generated by the impact.

• A functional, healthy expansion tank will produce a hollow, resonant sound on the upper air-charged half and a duller, denser sound on the lower water-filled half.
• A completely waterlogged, failed expansion tank will produce a uniform, dull, and heavy thud across the entire surface of the steel shell because water fills the internal volume completely without an air cushion.

Step 3: Check the Schrader Valve for Water Leaking

Locate the protective plastic cap on the top or bottom of the expansion tank, remove it, and inspect the Schrader air valve located underneath.

• Press the center pin of the Schrader valve momentarily using a small nail, key, or the tip of your pressure gauge.
• If water spurts or trickles out of the valve core, the internal bladder or diaphragm has torn completely, allowing system water to flood the air chamber. A water-leaking Schrader valve is an absolute confirmation that the expansion tank must be replaced immediately.
• If only air escapes or nothing happens, proceed to the next step to measure the exact pressure.

Step 4: Measure the Air Pre-Charge Pressure

Attach a standard digital or dial tire pressure gauge directly to the Schrader valve to measure the internal air pressure of the tank.

• To obtain an accurate reading, the expansion tank must be completely isolated from the system and drained of all water pressure. Close the system isolation valve, open a nearby drain or hot water faucet to bleed system pressure to zero, and leave the drain open while checking the tank.
• Compare the measured air pressure against your system requirements. For a standard residential hydronic heating system, the tank should be pre-charged to 12 PSI. For a domestic water heater, it should match the incoming home water supply pressure, typically 50 to 60 PSI.
• If the pressure reads zero, use a bicycle pump to add air up to the correct PSI. Wait 20 to 30 minutes and re-check. If the pressure drops back down to zero immediately, the bladder is punctured or the Schrader core is leaking, necessitating a full tank replacement.

Common Expansion Tank Failures and Field Fixes

Understanding the root causes of thermal expansion device degradation helps prevent premature equipment burnout and system flooding.

• Bladder Rupture Caused by Water Hammer:


  • Root Cause: Severe hydraulic shock waves traveling through rigid piping networks fatigue and tear the internal rubber diaphragm over time.
  • Actionable Fix: Replace the damaged expansion tank and install a dedicated water hammer arrestor upstream of fast-acting solenoid or washing machine valves.
• Corrosion and Exterior Rusting:


  • Root Cause: Condensation accumulation on the exterior steel shell in damp basements or crawlspaces degrades the structural integrity of the vessel.
  • Actionable Fix: Replace rusted tanks that show pitting or thinning metal, and insulate the piping appropriately or dehumidify the mechanical room to stop condensation.

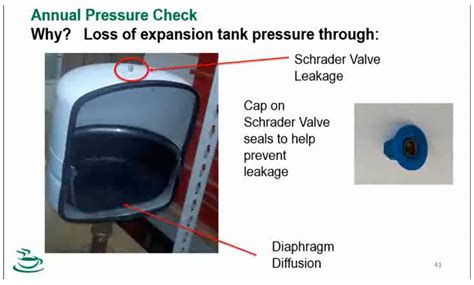

• Chronic Pressure Loss via Faulty Schrader Core:


  • Root Cause: A loose or degraded internal valve core slowly bleeds off the essential air pre-charge, causing the tank to waterlog prematurely.
  • Actionable Fix: Tighten the valve core using a standard valve tool, spray soapy water to check for bubbling, and replace the core or cap if leakage persists.

Frequently Asked Questions

How often should an expansion tank be checked?

An expansion tank should be inspected and tested at least once a year as part of routine annual HVAC or water heater maintenance. Regular checks catch declining air pre-charges before the bladder completely fails and triggers pressure relief valve discharge.

Can a waterlogged expansion tank damage my boiler or water heater?

Yes, a failed expansion tank cannot absorb the normal thermal expansion of water as it heats up, causing system pressure to spike rapidly. This continuous over-pressurization wears out circulating pumps, stresses pipe joints, and forces the temperature and pressure (T&P) relief valve to continually leak or fail open.

What size expansion tank do I need for my system?

Tank sizing depends on the total volume of water in your system, the operating water temperature range, and the maximum allowable pressure of the pressure relief valve. Standard residential boilers typically utilize an expansion tank sized according to boiler horsepower or total hydronic loop gallon capacity, such as a #15 or #30 tank for average homes.

Can I repressurize an expansion tank with water still inside it?

No, attempting to add air pressure to an expansion tank while it is still under system water pressure yields an inaccurate reading and fails to reset the bladder position properly. You must completely isolate the tank from the plumbing circuit and drain the water side to zero PSI before adjusting the air pre-charge.
