How To Tell If Circuit Breaker Is Bad: A Professional Diagnostic Guide
Diagnosing a failing circuit breaker requires a combination of visual inspections, sensory checks, and multimeter voltage drop testing to verify internal contact degradation or thermal fatigue. By understanding standard electrical tolerances and following strict safety protocols, you can accurately identify whether a breaker needs replacement before it causes equipment damage or electrical fires.
Pre-Procedure Planning and Electrical Safety Checklist
Evaluating residential or light commercial circuit breakers requires strict adherence to safety protocols set forth by the National Electrical Code (NEC) and the National Fire Protection Association (NFPA 70E). Working inside a live service panel exposes you to lethal shock and arc-flash hazards. Preparation begins with gathering the correct diagnostic instruments and personal protective equipment (PPE).
- Essential Gear and Instruments: CAT III or CAT IV digital multimeter, non-contact voltage tester, insulated hand tools with 1000V rating, Class 0 rubber insulating gloves, and an LED headlamp.
- Prerequisite Knowledge and Standards: Familiarity with single-pole (120V), double-pole (240V), and tandem breakers, along with an understanding of standard trip curves (Thermal-Magnetic vs. Arc-Fault Circuit Interrupters).
- Budget and Duration Benchmarks: Diagnostic time typically ranges from 15 to 30 minutes. Replacement breaker costs vary from ten to one hundred and fifty dollars depending on amperage rating, panel brand, and specialized AFCI or GFCI protection requirements.
Step-by-Step Diagnostic Workflow
Step 1: Perform a Comprehensive Visual and Olfactory Inspection
Remove the panel cover screws while maintaining a safe stance, and carefully lift the deadfront panel away from the enclosure. Inspect the interior for signs of physical stress, discoloration, or foreign debris. Look for white or powdery residue indicative of moisture corrosion, melted plastic housing around the terminal lugs, and soot marks near the arc chutes. Sniff near the breaker rows for a distinct acrid, fishy, or burnt plastic odor, which signals chronic overheating from loose connections or failing internal bimetallic strips.
Warning: Never touch the exposed main lugs at the top of the panel, as they remain live even when individual branch breakers are switched to the off position.

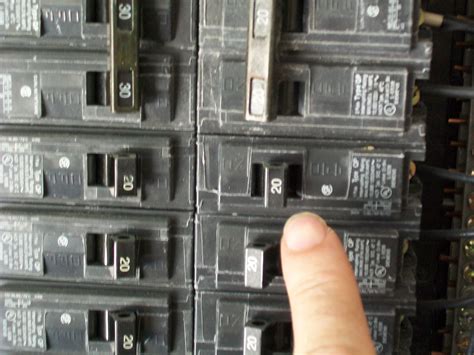

Step 2: Evaluate Handle Play and Mechanical Resistance
Test the physical throw of the breaker handle by manually switching it from ON to OFF and back to ON. A healthy breaker features a crisp, mechanical snap with firm spring resistance. If the handle feels spongy, loose, or flops freely between positions without engaging internal springs, the internal latching mechanism is broken. Additionally, check for a mid-position trip indicator. If a breaker frequently rests halfway between ON and OFF, it has experienced an overload or short circuit trip and must be reset or replaced.
Step 3: Measure Voltage Drop and Output Continuity
Configure your digital multimeter to measure alternating current (AC) voltage. With the circuit under load, place the black probe on the neutral bar and the red probe on the load-side terminal screw of the breaker. Compare this reading to the incoming line-side voltage measured at the main busbar connection. A voltage drop of more than 0.1 to 0.3 volts across the breaker contacts under heavy load indicates high internal resistance, pitted contact points, or a failing thermal element that requires immediate replacement.
Pro-Tip: If a breaker feels hot to the touch under a normal operating load compared to adjacent breakers, internal resistance is generating excess heat, signaling impending failure.
how to know when a gfci breaker is bad - Wiring Work
Circuit Breaker Diagnostic Parameters and Failure Indicators
| Diagnostic Parameter | Normal Operating Threshold | Failing or Faulty Condition | Recommended Action |
|---|---|---|---|
| Terminal Temperature | Ambient panel temp to 10°F above ambient | Significantly warm/hot to touch (>125°F) | Inspect torque on screw; replace if persistent |
| Voltage Drop (Load Active) | Less than 0.1V AC drop across contacts | Greater than 0.5V AC drop | Replace circuit breaker immediately |
| Handle Play | Crisp, definite snap with firm resistance | Loose, spongy, or stuck in mid-position | Replace circuit breaker assembly |
| Trip Frequency | Remains closed under rated continuous load | Nuisance tripping at 50% capacity or less | Test circuit for ground faults; replace breaker |
Common Panel Failures and Field Fixes
- Root Cause: Loose terminal screw connections creating high resistance and localized thermal overload.
- Actionable Fix: Turn off the main breaker, strip back any oxidized wire ends, and torque the terminal screw to the manufacturer's precise inch-pound specifications using a calibrated torque screwdriver.
- Root Cause: Aging thermal-magnetic bimetallic strip losing its spring calibration and tripping prematurely.
- Actionable Fix: Verify actual current draw using a clamp meter. If the draw is below the breaker rating and it still trips, replace the breaker with an exact brand and amperage match.
- Root Cause: Arc-Fault Circuit Interrupter (AFCI) nuisance tripping caused by shared neutrals or older multi-wire branch circuits.
- Actionable Fix: Inspect downstream wiring for damaged insulation, loose wire nuts, or grounded neutral-to-ground contact points, and replace the AFCI unit if internal self-diagnostics show a permanent fault code.
Frequently Asked Questions
Can a circuit breaker go bad without tripping?
Yes, circuit breakers can fail internally without throwing the handle. The internal bimetallic strip can lose its spring tension, or the mechanical contacts can weld together, causing the breaker to fail to trip during an overcurrent event or fail to cut power when switched off.
How do I know if my breaker is standard, GFCI, or AFCI?
Standard breakers feature plain black or colored handles without test buttons. GFCI (Ground Fault Circuit Interrupter) and AFCI (Arc Fault Circuit Interrupter) breakers include a dedicated test button and a pigtail neutral wire or direct plug-on neutral connection for enhanced safety monitoring.
Is it safe to replace a circuit breaker myself?
Replacing a circuit breaker involves working inside an electrical service panel with exposed live conductors that present severe electrocution risks. While homeowners can often perform this task, local electrical codes and safety best practices strongly recommend hiring a licensed electrician to ensure proper panel compatibility and torque compliance.
What causes a circuit breaker to buzz or hum?
A low-frequency hum usually indicates minor vibration of the steel laminations inside the magnetic coil under load, which is often normal. A loud buzzing, crackling, or snapping sound indicates loose busbar connections, arcing, or internal contact failure requiring urgent professional evaluation.
How long do circuit breakers typically last?
Residential circuit breakers are designed to last between 30 and 40 years under normal operating conditions. However, environmental factors like high humidity, extreme temperatures, and frequent short-circuit events can significantly accelerate mechanical wear and thermal degradation.
Ensure your home or facility remains electrically safe by scheduling routine panel inspections and addressing faulty circuit protection devices immediately. Consult a certified electrical professional to replace damaged components and verify your system meets all current safety standards.
