How To Tell If Brake Caliper Is Sticking: Symptoms, Diagnostics, And Repairs
A sticking brake caliper occurs when the hydraulic piston fails to retract fully, causing continuous friction against the rotor that results in vehicle pulling, excessive heat, premature pad wear, and reduced fuel efficiency. Diagnosing this condition requires checking for uneven wheel temperatures, abnormal visual wear patterns, and abnormal rolling resistance during a safe vehicle elevation test.
Pre-Operation & Equipment Checklist
A sticking brake caliper is a critical safety issue that compromises directional stability and braking performance. Identifying this hydraulic failure early prevents total pad degradation, warped brake rotors, and localized wheel bearing failure caused by extreme thermal transfer.
- Essential Gear, Tools, and Materials: Hydraulic floor jack, heavy-duty jack stands, wheel chock set, 3/8-inch and 1/2-inch drive socket sets, open-end wrench set, C-clamp or caliper piston compression tool, infrared thermometer or non-contact pyrometer, brake cleaner, high-temperature silicone brake grease, wire brush, and a new set of brake pads if replacement is necessary.
- Mandatory Prerequisite Knowledge and Standards: Familiarity with hydraulic braking systems, adherence to vehicle manufacturer lifting points, and understanding of standard torque specifications for wheel lug nuts and caliper mounting bolts.
- Estimated Budget and Duration Benchmarks: Diagnostic evaluation takes approximately 20 to 30 minutes; a complete caliper replacement and brake bleeding procedure requires 1 to 2 hours with an estimated parts cost between 80 and 250 dollars depending on vehicle make and model.
Step-by-Step Diagnostic and Verification Workflow
Step 1: Perform a Controlled Drive and Temperature Assessment
Drive the vehicle for five to ten minutes in a safe environment, making minimal use of the brakes to isolate thermal generation. Safely pull over without slamming the brakes, and immediately use an infrared thermometer to measure the surface temperature of the wheel hub or rotor face on all four corners of the vehicle. A temperature differential greater than 50 to 100 degrees Fahrenheit between opposing wheels on the same axle strongly indicates a dragging brake component.
Pro-Tip: If you do not have an infrared thermometer, you can cautiously hover your hand a few inches away from each wheel rim after a drive, but never touch the rotor or wheel directly, as a sticking caliper can easily reach temperatures exceeding 400 degrees Fahrenheit.
Step 2: Elevate the Vehicle and Conduct a Manual Roll Test
Secure the vehicle on flat, level ground, engage the emergency brake (if testing the front wheels), chock the wheels that will remain on the ground, and lift the suspect corner using a hydraulic floor jack placed at the manufacturer-approved lift point. Secure the chassis with a rated jack stand and release the parking brake. Attempt to spin the elevated wheel by hand; a healthy wheel should rotate freely with minimal drag, whereas a sticking caliper will cause significant rotational resistance or completely lock the wheel in place.
Step 3: Inspect the Brake Pad Wear and Rotor Condition
Remove the wheel assembly to gain direct access to the brake assembly. Visually inspect the inner and outer brake pads to compare their friction material thickness. A sticking caliper often applies constant pressure to only one side of the rotor, resulting in wedge-shaped pad wear where one pad is worn completely down to the steel backing plate while the opposing pad retains substantial thickness. Examine the rotor surface for deep scoring, blue discoloration from severe overheating, or localized dark patches.
Step 4: Evaluate Caliper Slide Pins and Piston Retraction
With the wheel removed, unbolt the brake caliper from its mounting bracket while supporting it with a bungee cord or wire hanger to prevent tension on the flexible rubber brake hose. Check the sliding pins for freedom of movement; they should slide smoothly within their rubber boots without binding. Attempt to compress the caliper piston back into its bore using a C-clamp and an old brake pad. If the piston refuses to move, feels completely seized, or requires excessive force, the internal hydraulic seals have failed or corrosion has locked the piston inside the bore.

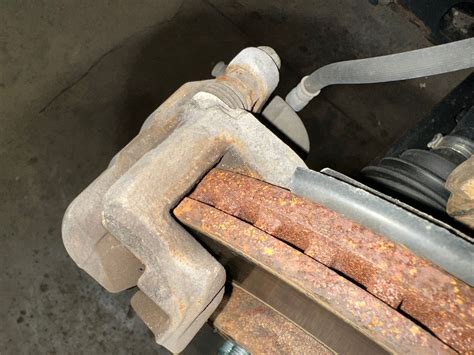

How To Tell If Front Brake Caliper Is Sticking at Iluminada May blog
Brake Hydraulic Failure Characteristics Comparison
| Diagnostic Parameter | Normal Operating State | Sticking Caliper Failure Mode |
|---|---|---|
| Wheel Temperature | Ambient to moderate warmth based on use | Excessively hot (>300°F) after minimal driving |
| Vehicle Tracking | Tracks straight during hands-off testing | Pulls sharply toward the side of the sticking brake |
| Rotational Drag | Spins freely with a slight whisper sound | Heavy drag, difficult to spin, or completely locked |
| Pad Wear Pattern | Even wear across both inner and outer pads | Severe taper wear or completely consumed friction material |
| Fuel Economy | Baseline vehicle fuel consumption | Noticeable drop in MPG due to constant drivetrain drag |
Common Mechanical Failures and Field Fixes
- Root Cause: Corroded, dry, or unlubricated slide pins preventing the caliper floating mechanism from centering properly.
- Actionable Fix: Remove the sliding pins, clean all old contaminated grease using a wire brush and brake cleaner, inspect the rubber boot seals for tears, and apply a generous coat of high-temperature synthetic silicone brake lubricant before reassembly.
- Root Cause: Collapsed or internally degraded flexible rubber brake hose acting as a one-way check valve, trapping hydraulic pressure inside the caliper.
- Actionable Fix: Disconnect the brake line from the caliper and attempt to compress the piston. If the piston retracts easily with the bleeder screw or line open, replace the deteriorating rubber brake hose.
- Root Cause: Pitting, rust accumulation, or contamination on the caliper piston and bore walls due to degraded moisture-laden brake fluid.
- Actionable Fix: Rebuild the caliper using a fresh piston seal and boot kit if the bore is undamaged, or completely replace the entire brake caliper assembly with a remanufactured unit, followed by a thorough system bleed.
Frequently Asked Questions
What does a sticking brake caliper smell like?
A sticking caliper generates a distinct, sharp burning chemical odor resembling hot metal, burning resin, or scorching brake friction material. If you notice this scent after a routine drive without heavy braking, pull over immediately to inspect the wheels for excessive heat before the caliper locks up completely or causes a fire.
Can I drive short distances with a sticking brake caliper?
Driving with a stuck caliper is highly discouraged because the continuous friction destroys brake pads, warps expensive rotors, boils brake fluid, and can cause catastrophic wheel bearing failure or sudden loss of vehicle control. If you must move the vehicle to a safe location, keep speeds exceptionally low and minimize driving distance.
Should I replace brake calipers in pairs?
While replacing both calipers on an axle is ideal for maintaining balanced braking force, it is not strictly mandatory unless the failure on one side was caused by age-related internal seal degradation that likely affects the opposite side as well. Always replace brake pads in axle sets (both left and right wheels) whenever you service a sticking caliper to ensure even stopping power.
How do I know if the caliper or the flexible brake hose is bad?
To differentiate between a bad caliper and a bad hose, loosen the bleeder screw on the caliper while trying to compress the piston. If fluid squirts out and the piston easily retracts, the flexible brake hose is acting as a check valve and needs replacement; if the piston remains stuck despite open hydraulic pressure, the caliper itself is internally seized.
